1-32 Chapter 1: Product introduction
6. Optical drive audio connector (4-pin CD)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
P5SD2-VM
Internal Audio Connecto
P5 SD 2- VM
CD
(black)
Right Audio Channel
Left Audio Channel
Ground
Ground
7. CPU and chassis fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
The fan connectors support cooling fans of 350 mA ~ 2000 mA (24 W max.)
or a total of 1 A ~ 7 A (84 W max.) at +12V. Connect the fan cables to the
fan connectors on the motherboard, making sure that the black wire of each
cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air
ow inside the system may damage the motherboard components. These are
not jumpers! Do not place jumper caps on the fan connectors!

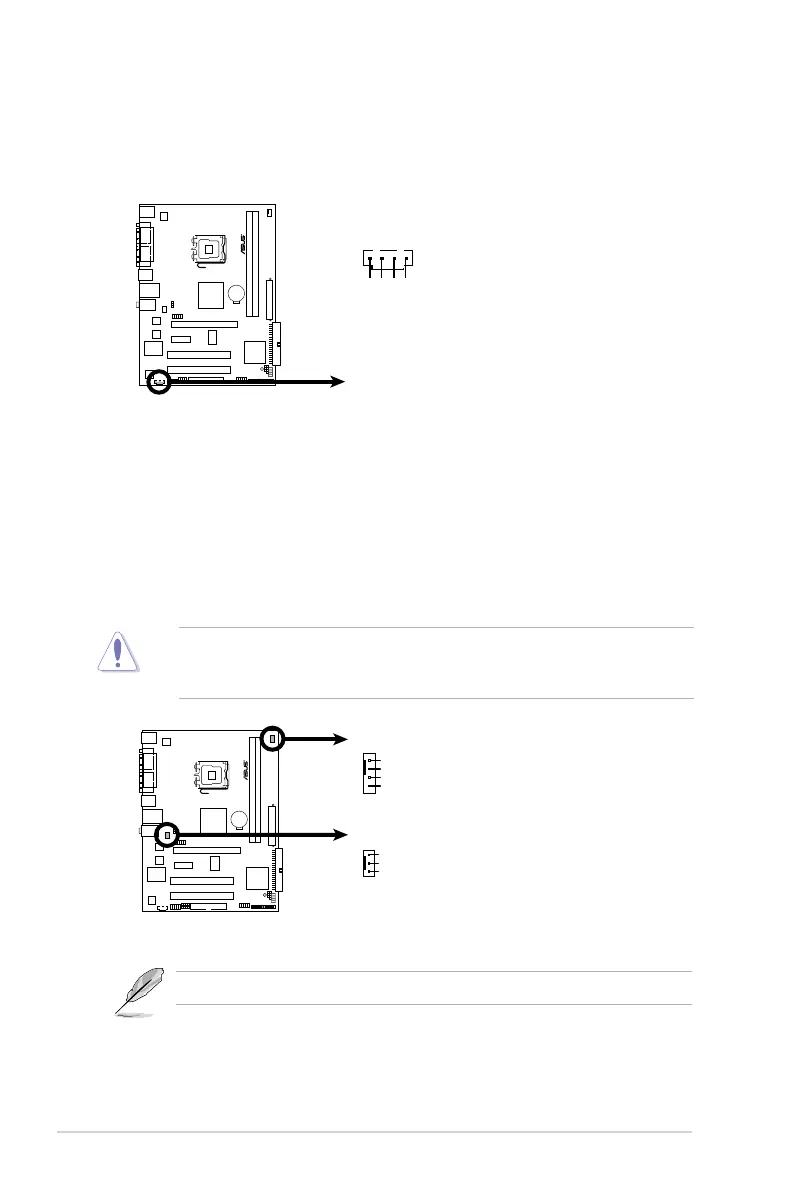

P5SD2-VM
Fan Connectors
P5 SD 2- VM
CPU_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PW
Only the CPU-FAN connector supports the ASUS Advanced Q-Fan feature
To Next Page
