NEW FRONT IO BOARD
Assembly Notice

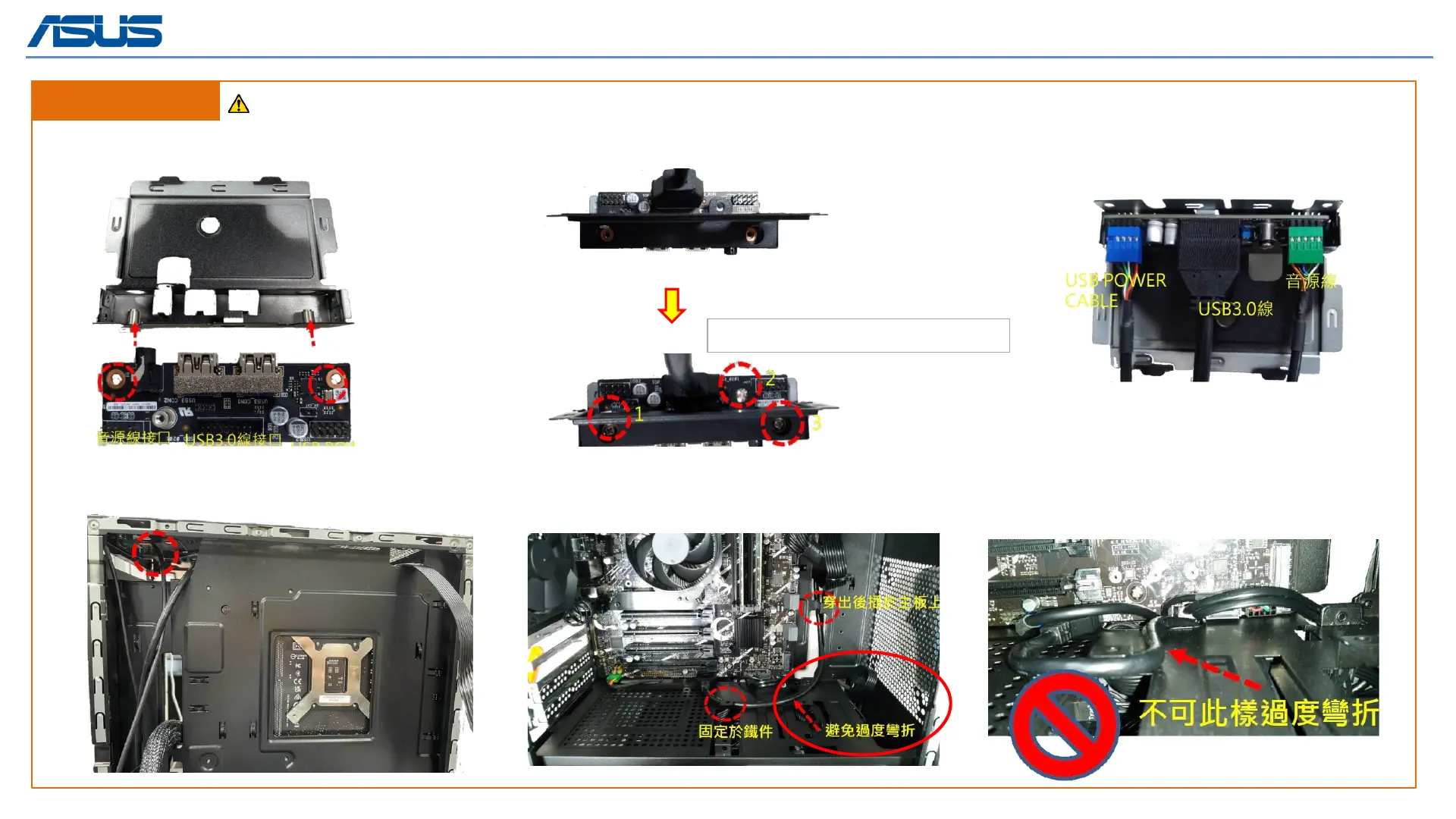

Please follow the below steps to assemble FRONT IO BOARD.
Step-1 FIO bracket and small card, corresponding hole assembly.
Step-2 Assemble the STAND OFF on the MB.
Step-4 Assemble the USB3.0 CABLE on the MB.
SCREW M3*4L (6.3,2.05) (B) #2*3pcs
Step-3 Assemble the cables*3pcs.
AUDIO
POWER
Set in iron piece.
Avoid excessive bending
OK
