Asus ROG Strix G13CH - LED Board Removal; Step 1: Remove Side Down LED Board; Step 2: Remove Side Up;Down LED Board

LED BOARD
Screws QTY Spec Torque (kgf-cm)
2 SCREW M2.5*4L (K) B-ZN NY
2.5±0.2
3 SCREW M2.5*4L (K) B-ZN NY
2.5±0.2

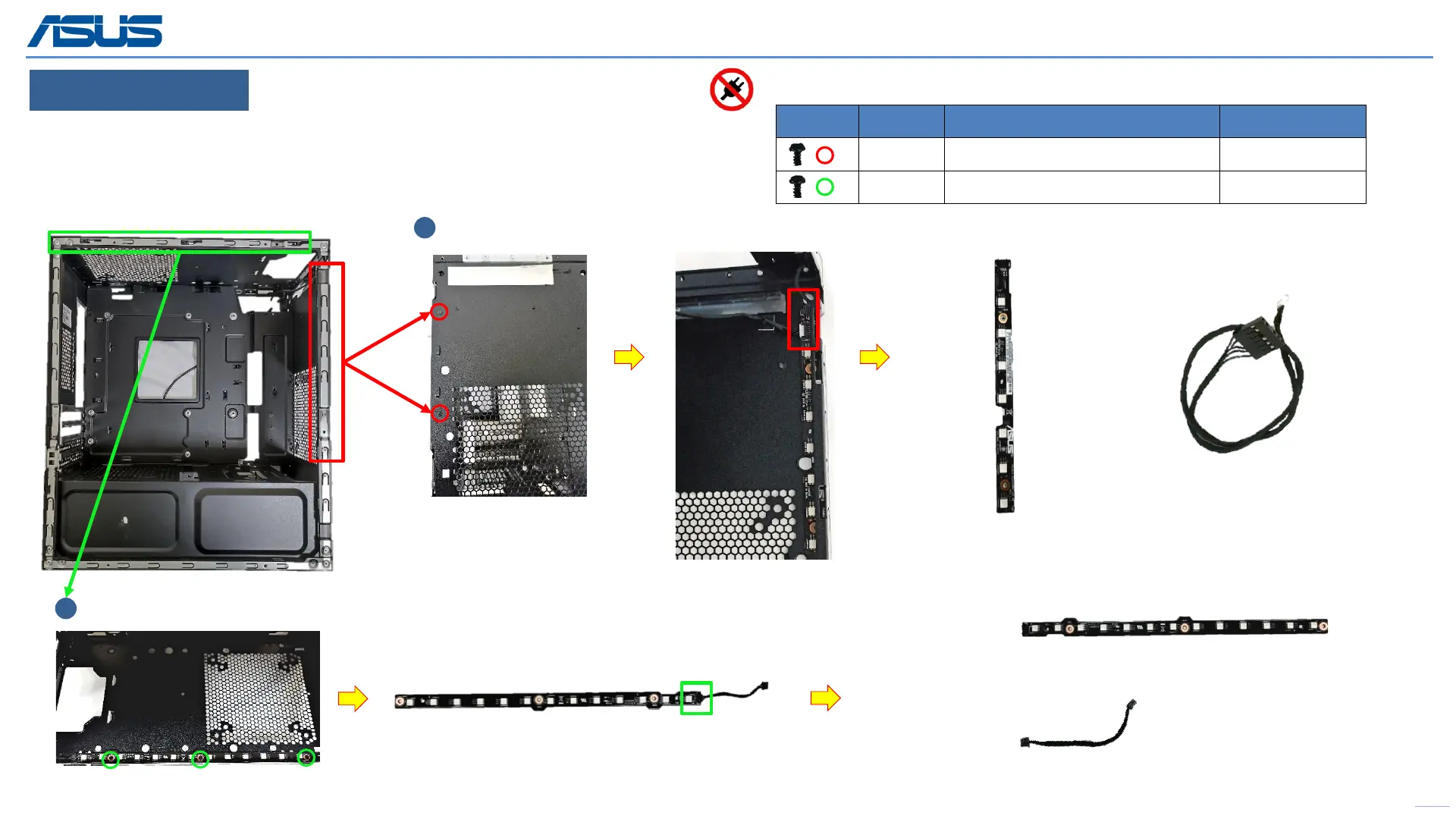

Step 1 : Remove screws *2pcs and then disconnect cables *2pcs.
Step 2 : Remove screws *3pcs and then disconnect cable *1pc.
Back
31
Disassembly Notice
Please be sure to pull out AC POWER CORD.
1
Unscrew (red mark)
(SIDE LED CABLE)
(SIDEDOWN LED BD )
(SIDE UP LED BD )
(SIDE BD CABLE)
2
Unscrew (Green mark)
Disconnect
Disconnect
