Asus ROG Strix G13CH - WLAN Card Removal; Step 1: Remove WLAN Shielding; Step 2: Remove WLAN Card

Assembly Notice
Please according to below
image to assemble RF cable.
WLAN CARD
Screws QTY Spec Torque (kgf-cm)
2 SCREW M2*4L
2.0±0.5
1 SCREW M2*3L
2.0±0.5
1 SCREW M2*3L
2.0±0.2

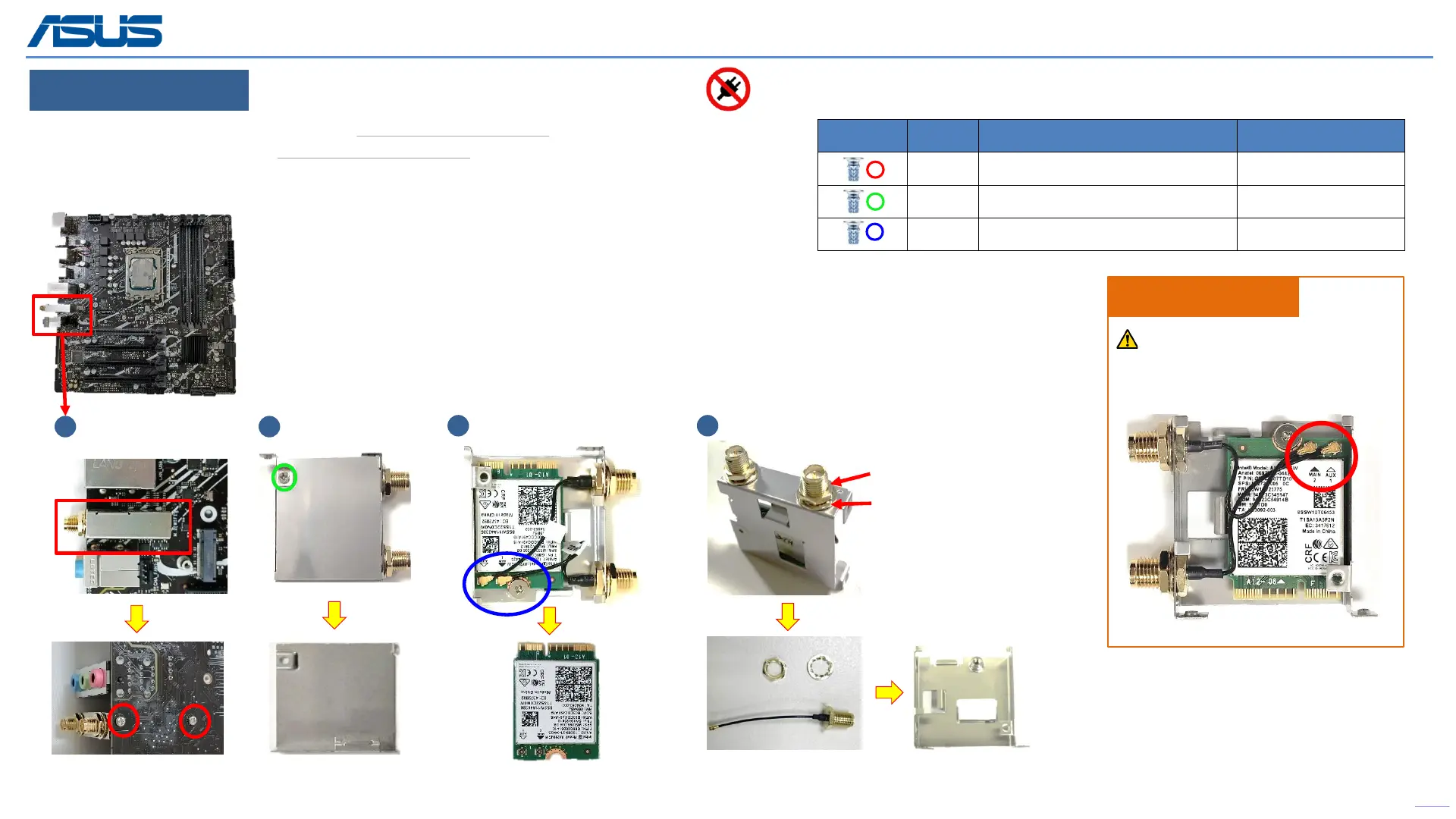

Step 1 : Remove screws *2pcs and take out SHIELDING FOR Z690 WIFI with WLAN CARD.
Step 2 : Remove screw *1pc and SHIELDING FOR Z690 WIFI.
Step 3 : Disconnect RF cables*2pcs, remove screw *1pc and WLAN CARD.
Step 4 : Release nut and remove RF cable.
Back
27
Disassembly Notice
Please be sure to pull out AC POWER CORD.
Disconnect and remove
1
Remove
2
Remove
3
MAIN
AUX
(Rear)
SHIELDING FOR
Z690 WIFI
Release nut and remove
4
RFCABLE ASSEMBLY
SMA/MHF 42MM*2pcs
nut
washer
SHIELDING FOR
Z690 WIFI
