Asus ROG Strix G13CH - Power Supply Unit Removal; Step 1: Cut Power Supply Cable Ties; Step 2: Remove Power Supply Screws; Step 3: Disconnect and Remove Power Supply

32 pages

To Next Page

To Previous Page

POWER SUPPLY

Screws QTY Spec

Torque (

kgf-

cm)

4 SCREW #6-32*6.3L (7.3,2.45)(B) B-ZN #2

8.0±0.5

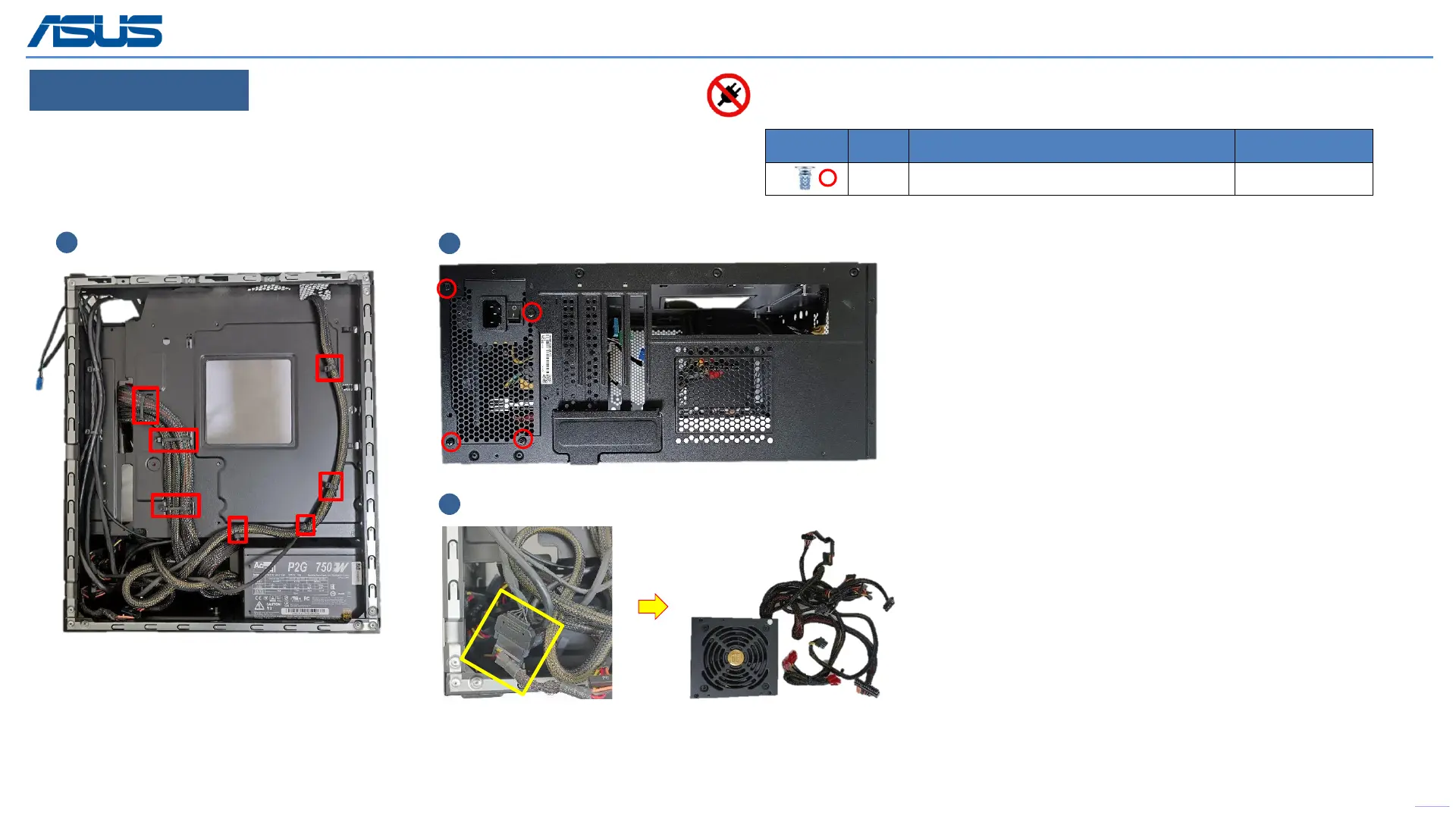

Step 1 : Cut the cable ties *7pcs.

Step 2 : Remove screws *4pcs.

Step 3 : Disconnect the connector *1pc & take out the POWER SUPPLY.

Back

Disassembly Notice

Please be sure to pull out AC POWER CORD.

Disconnect

Unscrew

Disconnect and take out
