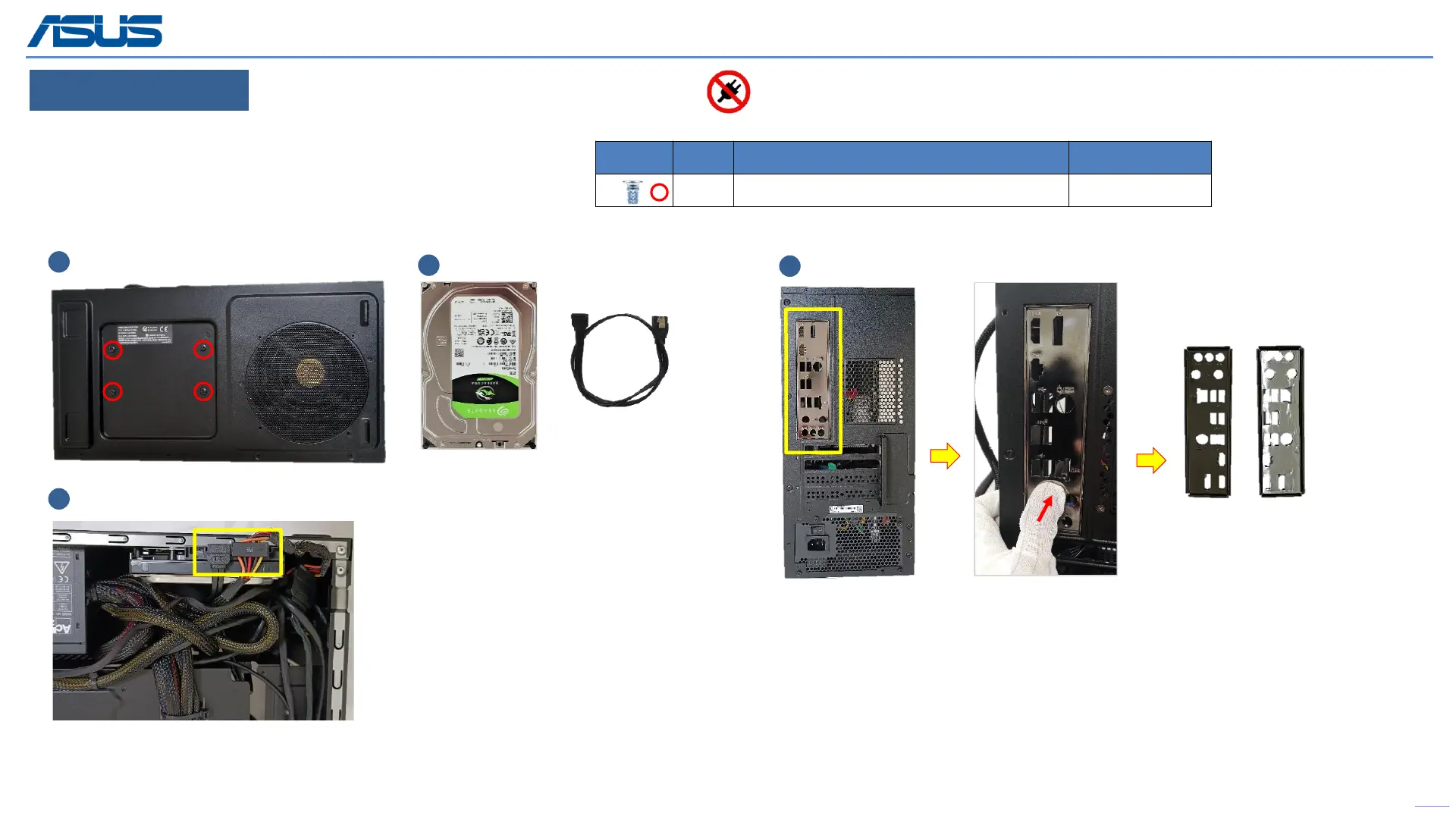

Asus ROG Strix G13CH - HDD and IO Shielding Removal; Step 1: Remove HDD Screws; Step 2: Disconnect HDD Connectors; Step 3: Remove HDD and Cable

HDD & IO SHIELDING
Screws QTY Spec Torque (kgf-cm)
4 SCREW #6-32*6.3L (7.3,2.45)(B) B-ZN #2
6.5±0.5
Step 1 : Remove screws *4pcs.
Step 2 : Disconnect the connectors *2pcs
Step 3 : Take out the HDD and cable.
Step 4 : Press and push the IO SHIELDING to remove it.
Back
29
Disassembly Notice
Please be sure to pull out AC POWER CORD.
1
2
3
Disconnect
Unscrew
4
G16CH B760M
IO:6USB/2HDMI/D
P/PS2
Press and push
