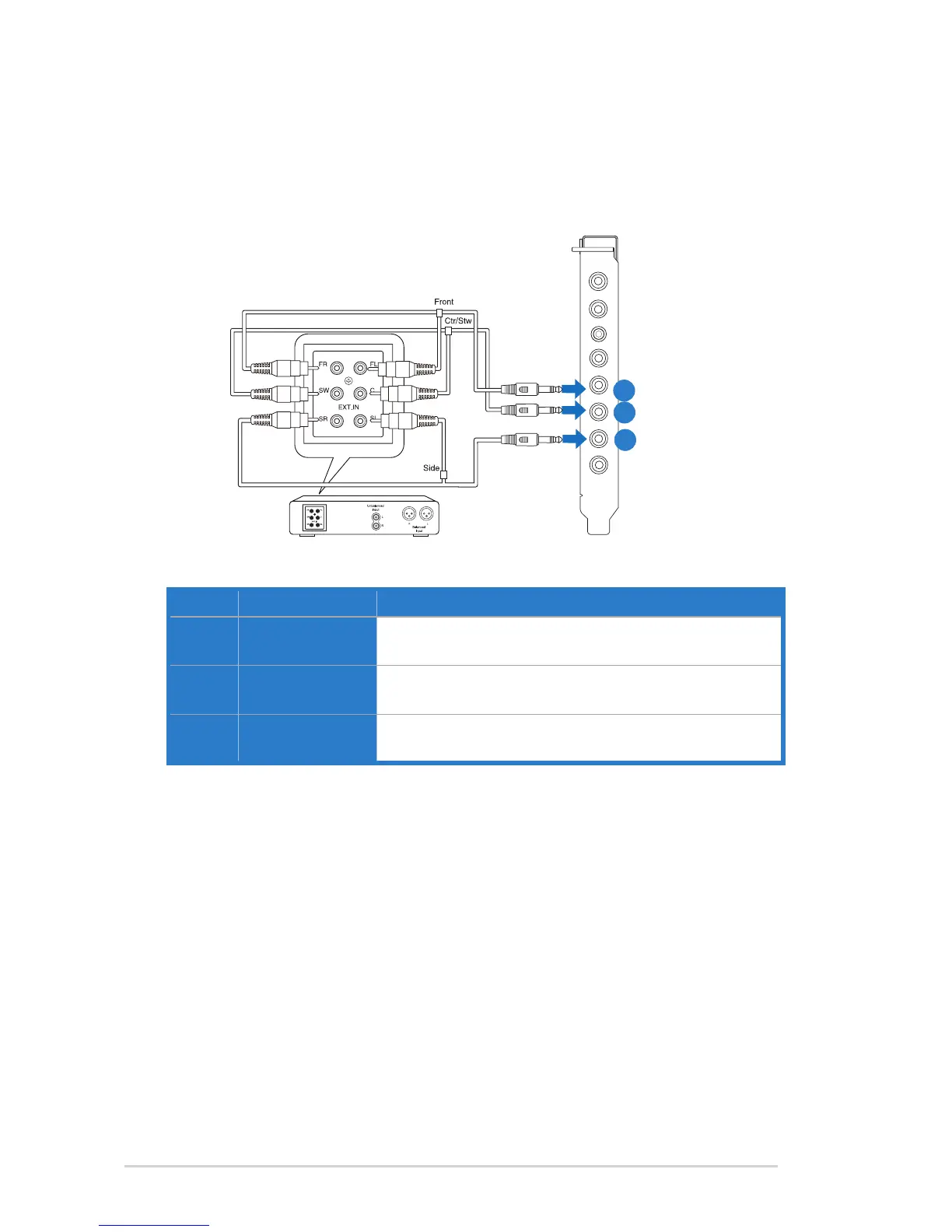

5.4 Connecting Analog Speaker Systems
5.4.1 Connecting Analog Power Amplier
1
3
2
No Item Description
1 Front Out
Connects to the “left front” and “right front” input ports of the
analogamplierwiththemini-jacktoRCAcable.
2 Back Surround Out
Connects to the Back Surround input port with the mini-jack
cable.
3 Center/Subwoofer
Connects to the “Center” and “subwoofer” input ports of the
analogamplierwiththemini-jacktoRCAcable.
