Asus RS500-E8-PS4 - HDD Status LED; LAN (RJ-45) Leds

Chapter 1: Product introduction
1-10

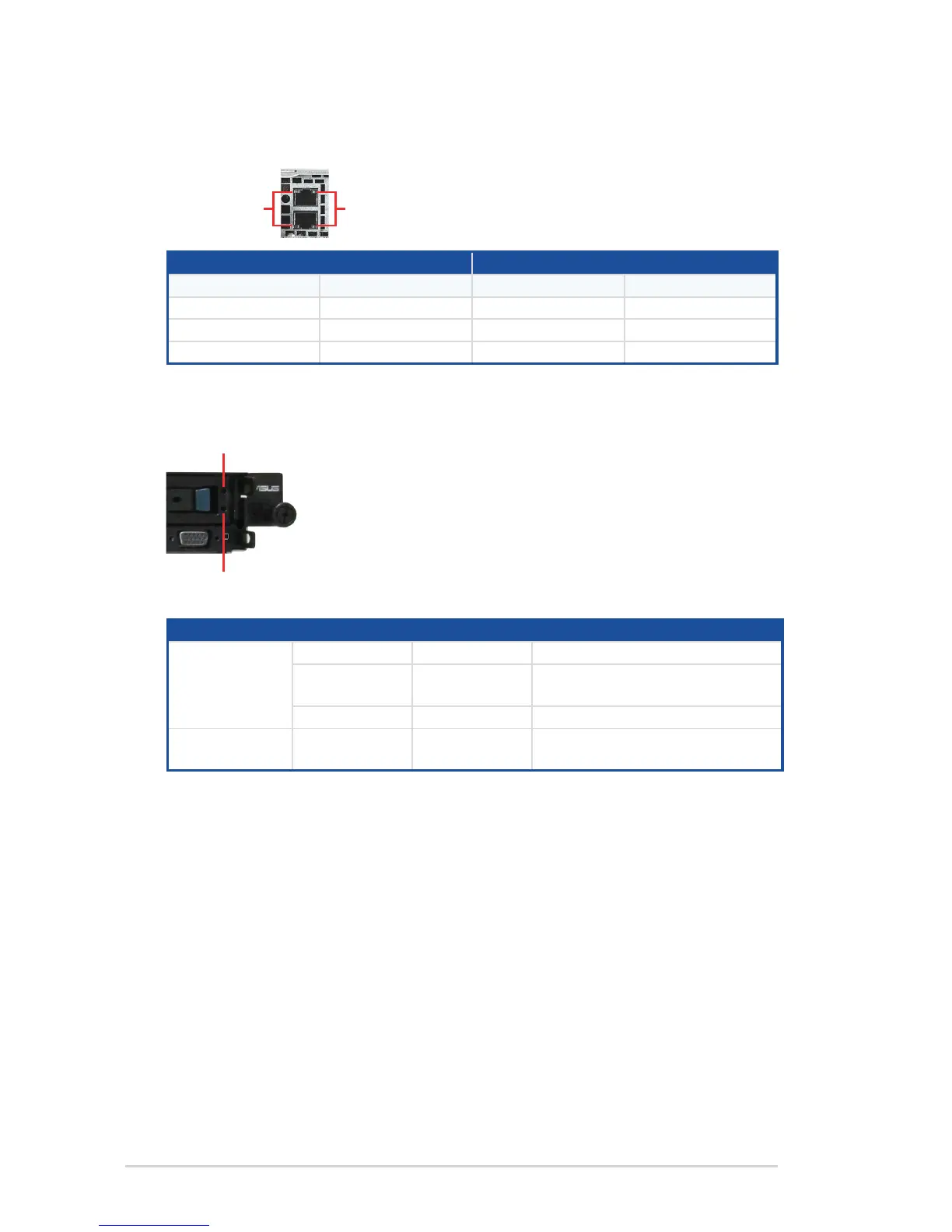

1.7.2 LAN (RJ-45) LEDs
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1.7.3 HDD status LED
HDD status LED
HDD activity LED
SATAII/SAS HDD LED Description
HDD Status LED
GREEN ON SATAII/SAS HDD power ON
RED ON
HDD has failed and should be
swapped immediately
GREEN/RED Blinking RAID rebuilding
HDD Activity LED GREEN Blinking
Read/write data from/to the SATAII/
SAS HDD
SPEED LED
ACT/LINK LED
