Asus RS500-E8-PS4 - Hard Disk Activity LED Connector (4-Pin HDLED1); VGA Connector (10-1 Pin VGA_HDR1)

ASUS RS500-E8 Series
4-15

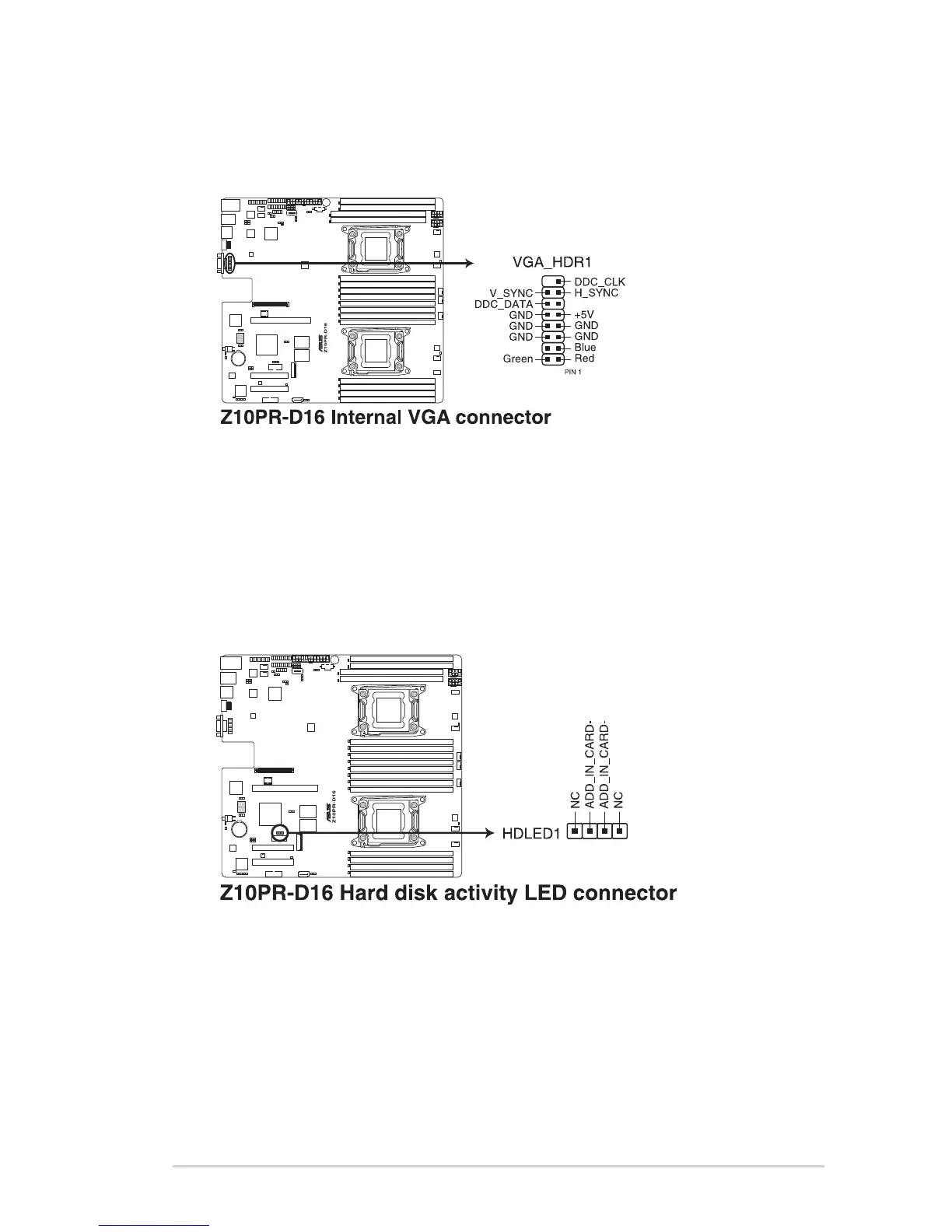

12. VGA connector (10-1 pin VGA_HDR1)
This connector supports the VGA High Dynamic-Range interface.
13. Hard disk activity LED connector (4-pin HDLED1)
This LED connector is for the storage add-on card cable connected to the SATA or
SASadd-oncard.ThereadorwriteactivitiesofanydeviceconnectedtotheSATAor
SAS add-on card causes the front panel LED to light up.
