ASUS RS500-E8 Series
4-7

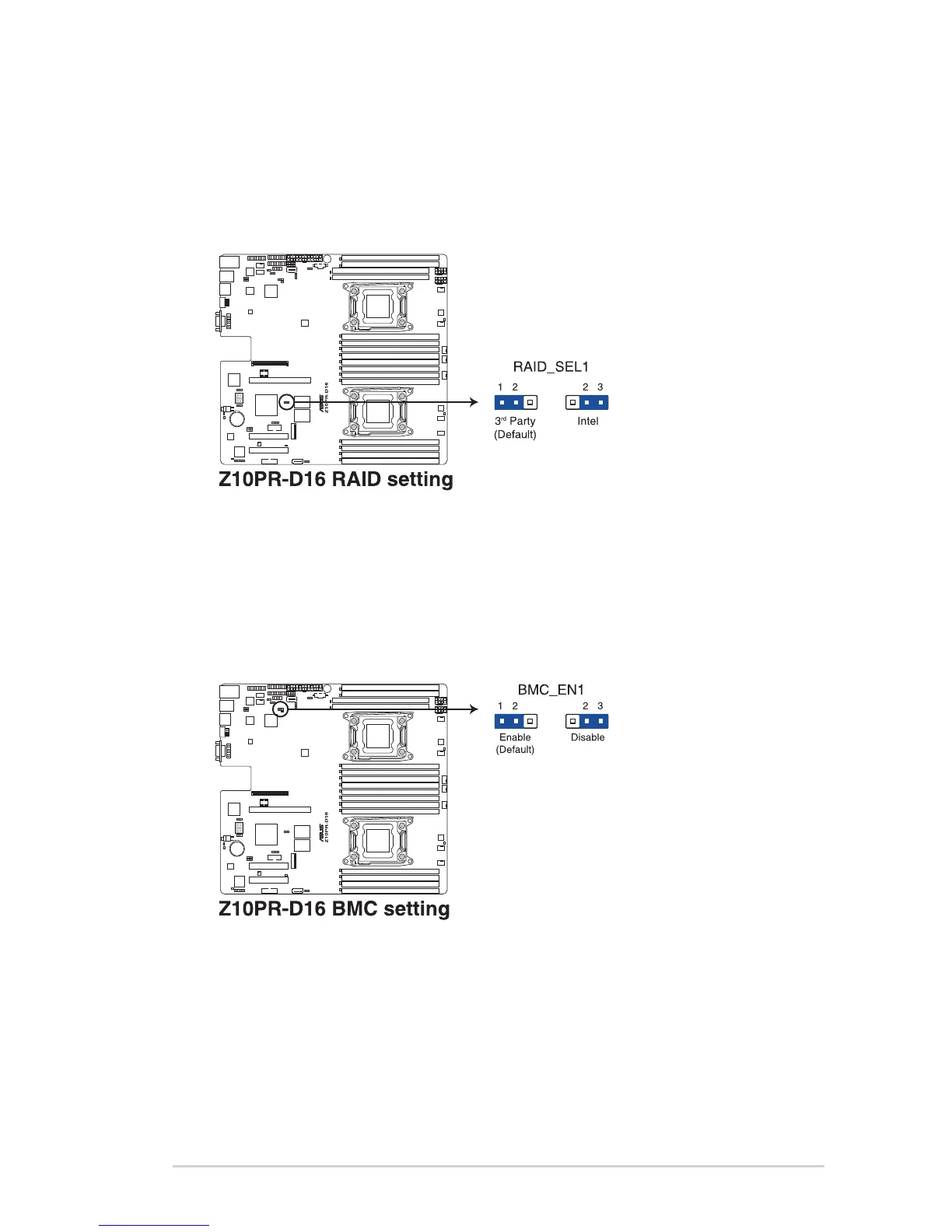

6. RAID configuration utility selection (3-pin RAID_SEL1)
ThisjumperallowsyoutoselecttheRAIDcongurationutilitytousewhenyoucreate
diskarrays.Placethejumpercapsoverpins1–2tousethethirdpartysoftwareLSI
MegaRAIDsoftwareRAIDCongurationUtility;otherwise,placethejumpercapsto
pins2–3tousetheIntel
®
Rapid Storage Technology enterprise SATA Option ROM
Utility.
7. BMC Setting (3-pin BMC_EN1)
 ThisjumperallowsyoutoenableordisabletheBaseboardManagementController
(ASMB8).
