For each vibration, the number of adjustable parameters is reduced to the following five
parameters:
• 1 main amplitude (corresponds to the actuator(s) opposed to the target direction)
• 1 unique frequency (same for all actuators)
• 1 duration
• 2 balances to adjust the direction of displacement (fine adjustment of amplitude of all
actuators)

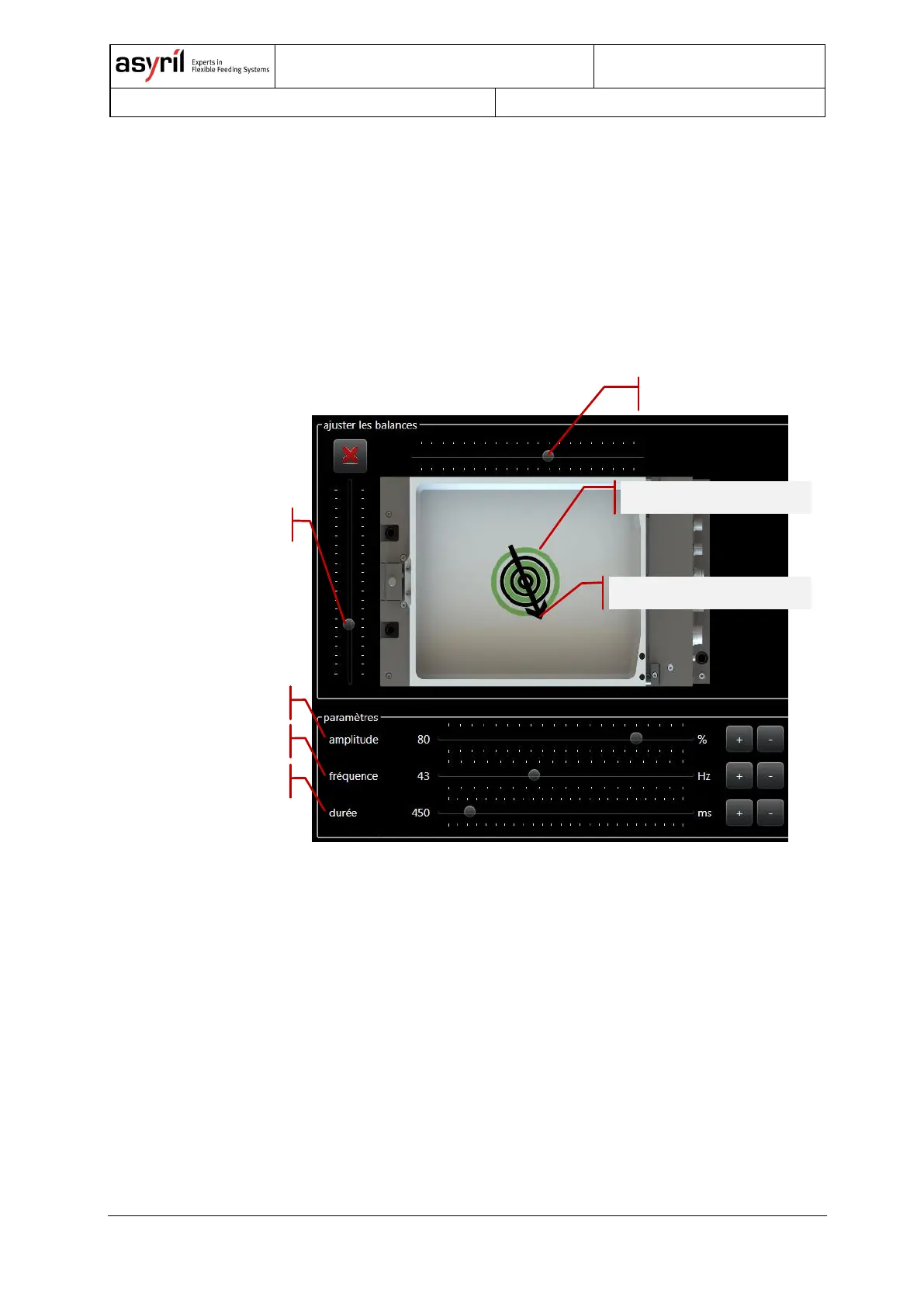

Figure 5-3: Asycube 240, 380 and 530 Easy-Tuning HMI
Balance “long side”
Balance “short side”
Main amplitude
Unique frequency
Duration
Theoretical movement
Programmed movement
