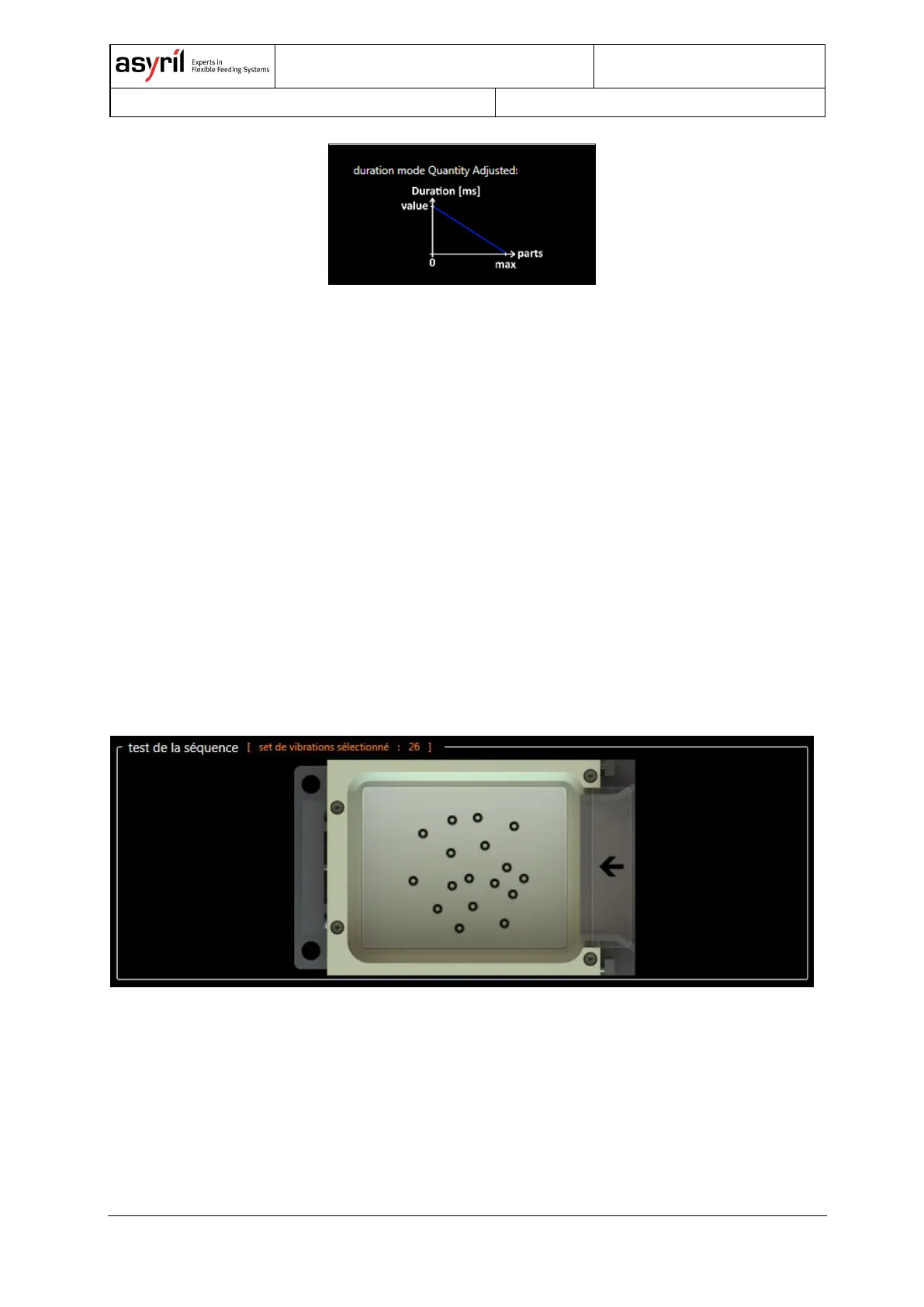

Figure 6-4: ‘Quantity adjusted’ duration mode [ms]
6.4. HMI simulation: Test sequence
In the Asyril HMI, it is possible to test a sequence, even without vision system data (number
of parts on the platform and their location). The three general situations are presented in this
section, the fourth is a mix between the first three.
6.4.1. Case 1: No smart vibration
No action of the sequence uses a smart vibration (i.e. no vision system). To execute the
simulation, simply press the large button representing the vibrating platform. Note that the
currently active vibration set is indicated in the upper left corner of the display. To select the
desired vibration set, simply change its ID in the ‘Platform’ or ‘Hopper’/‘Outputs’ tab.
Figure 6-5: HMI simulation case 1 – No smart vibration
