Installation & Servicing Instructions ATAG Q-Series
39
1 heat exchanger
2 ignition unit
3 fan unit
4 air inlet damper
5 gas valve
6 safety valve
7 automatic air vent
8 ceramic burner cassette
9 cylinder DHW (Combi)
10 operating panel
11 Control Tower (CMS)
12 water lter return CH
13 three-way valve
14 circulation pump
15 thermostatic mixing valve
16 ue gas discharge
T1 ow sensor
T2 return sensor
T3 cylinder sensor DHW (combi)
P1 water pressure sensor

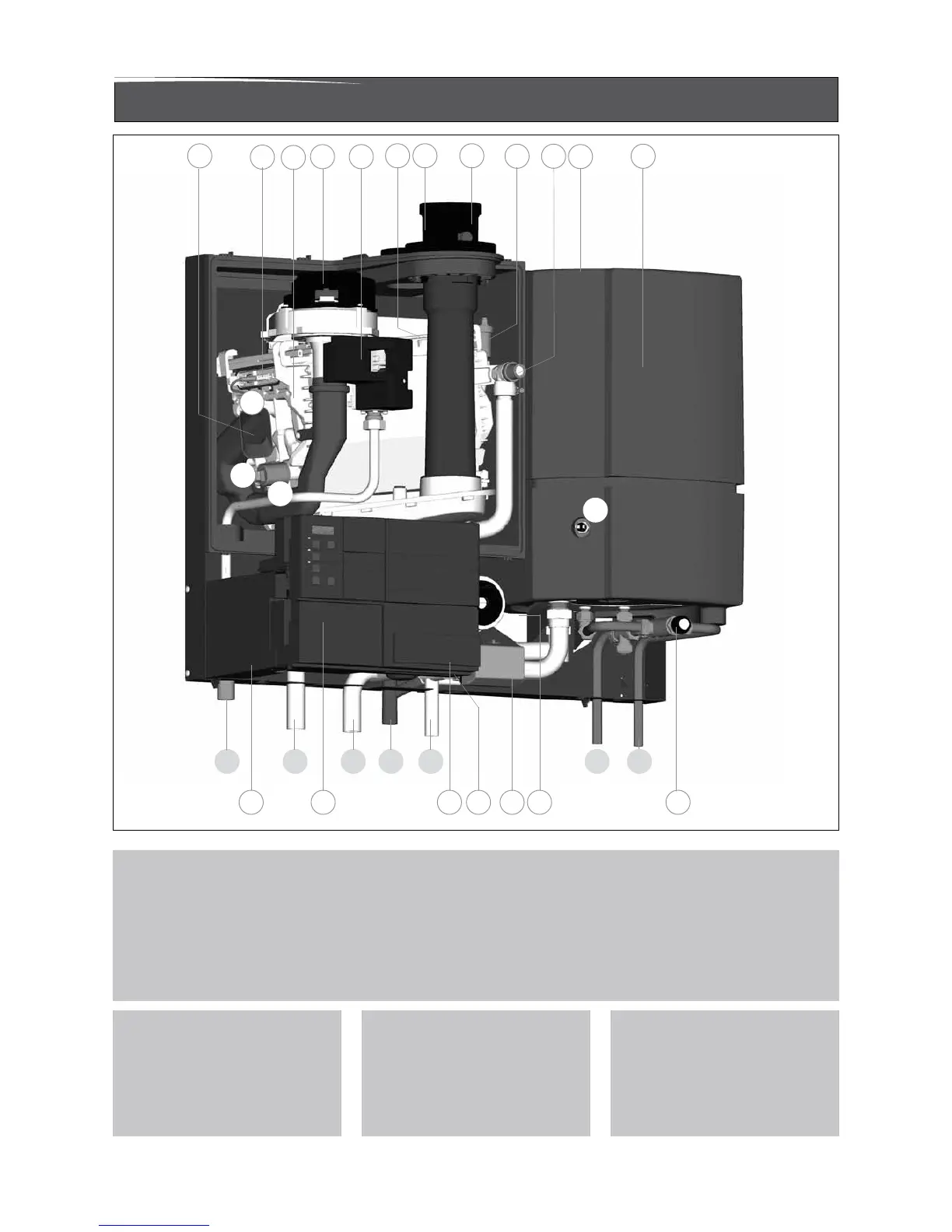

ATAG Q gure 15
4 2 1 3 175 16 7 6 918
C E
13 14 15
W
G
19 10
8
11
KRA
17 combustion air supply
18 air box
19 type plate
G gas pipe
A ow connection central heating
R return connection central heating
C condensate pipe
E expansion vessel pipe (Q51C)
16 Parts of the boiler
K cold water pipe (combi)
W hot water pipe (combi)
12
