6.7 Flue gas exhaust system and air supply system
The ue gas exhaust system and air supply system consists of:
- Flue gas pipe;
- Air supply pipe;
- Roof or wall terminal.
The ue gas exhaust system and air supply system must comply with:
United Kingdom:
The ue gas outlet and air supply installation must comply with the current regulation
requirements. IG UP 10 and BS 715.
Ireland:
- Irish standard is 813 section 9.10.1
Open boiler
Room sealed system
SS
PP
SS
PP
PP
SS
PP

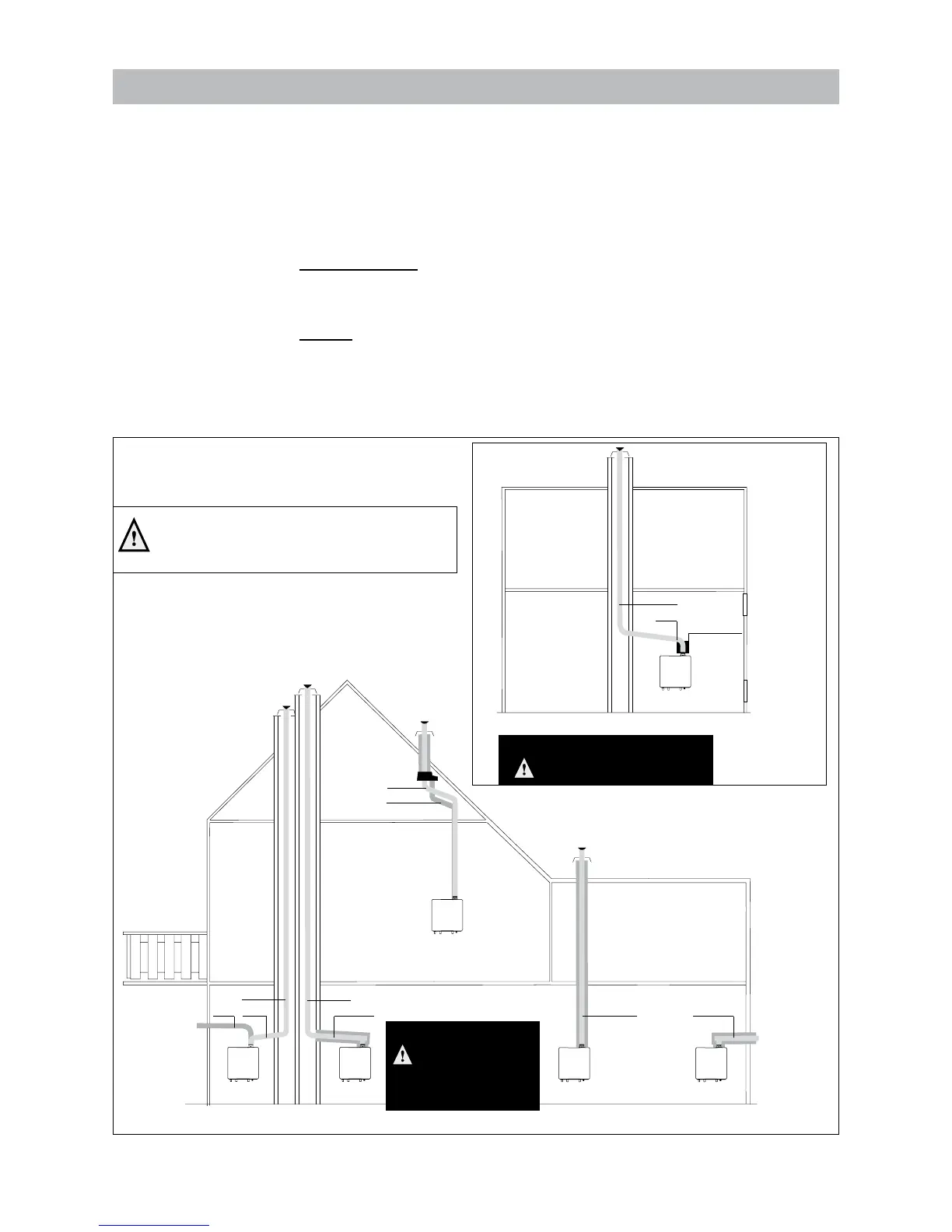

Open boiler en roomsealed system gure 8
PP
PP/MW PP/MW PP/MW
All ue gas parts, which are outside the re
resistant cover, need to be in stainless steel.
Boiler Class C
Permitted only
when the air
intake and the ue gas
outlet are in the same
pressure area.
BoilerClass B
Free exhaust area
Air lter
