Installation & Servicing Instructions ATAG Q-Series
40

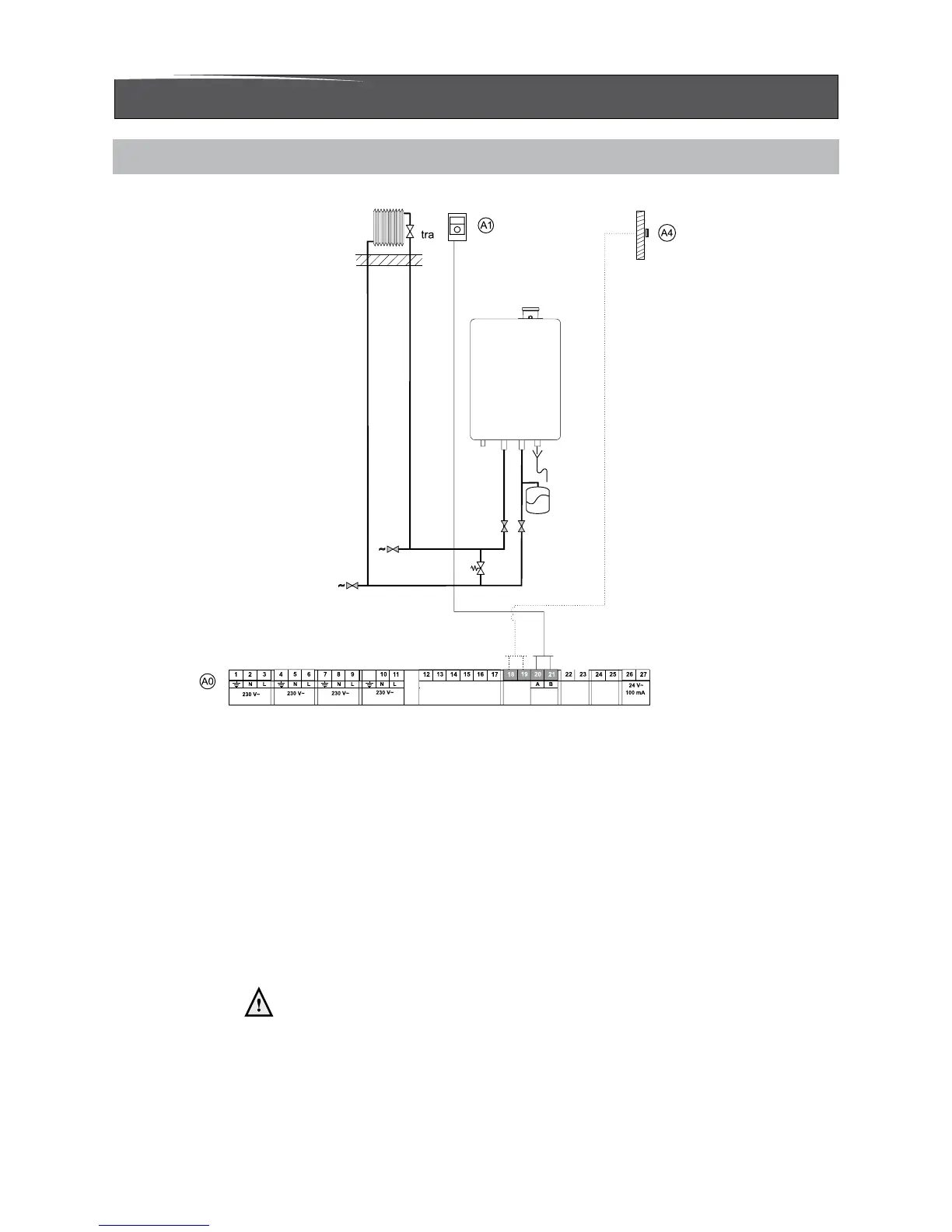

installation example gure 16
A Boiler:
A0 Connection terminal ATAG Q
A1 ATAG BrainQ thermostat RSC
A4 Outside sensor ARV12
tra Thermostatic radiator valve
BP Automatic by-pass
Use alway a by pass in combination with thermostatic radiator valves.
17 Installation examples
BP
17.1 Radiator installation without thermostatic radiator valves
