ADMINISTRATION
None
HOW TO USE
None
General Purpose Adapter
DESCRIPTION
CONSIDERATIONS
ADMINISTRATION
HOW TO USE
With the General Purpose Adapter (GPA) you can connect to your voice
terminal Touch-Tone ( not rotary ) equipment such as manual dial modems,
auto dialers, answering machines, and telephone extensions (including cordless
telephones).

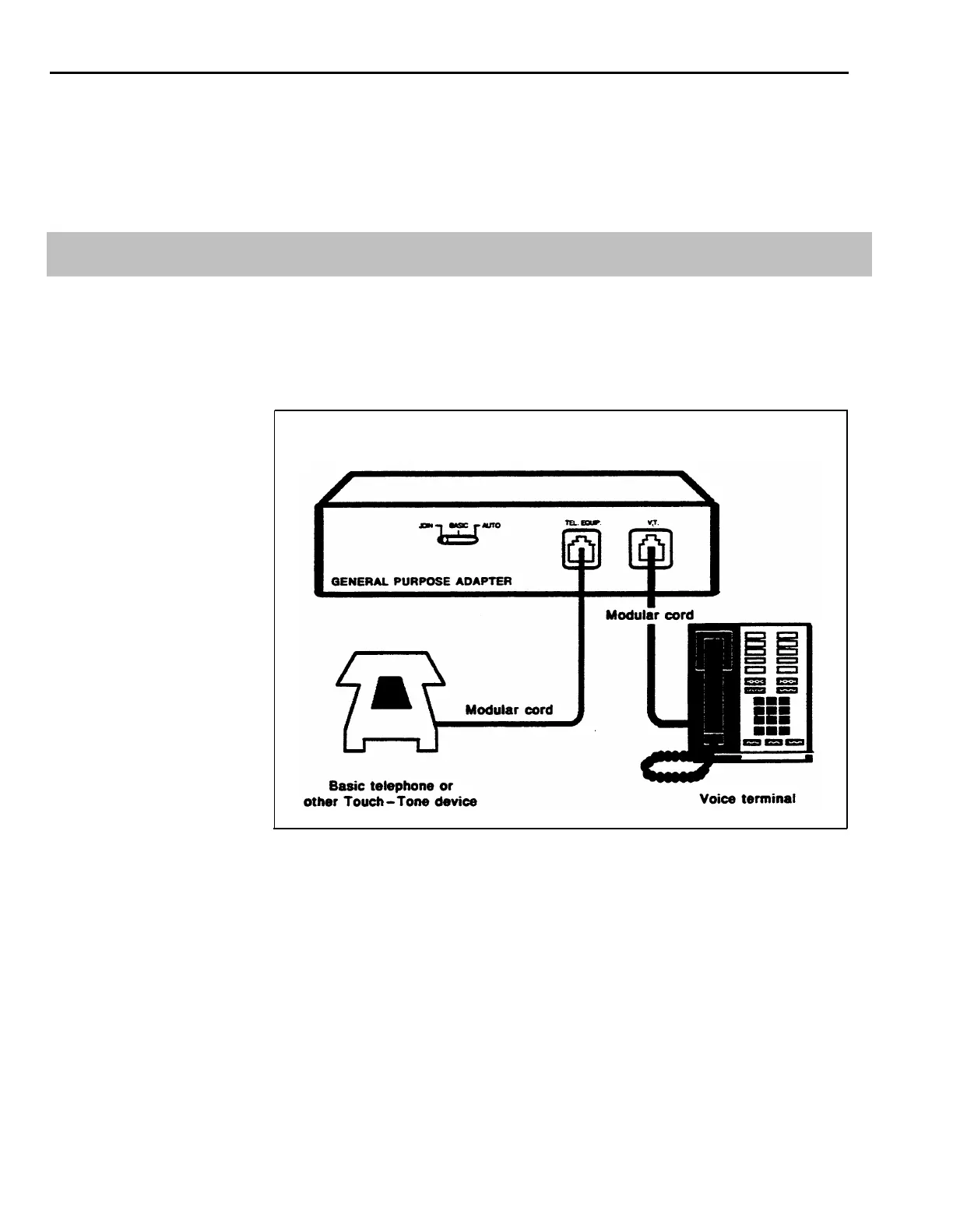

FIGURE 5-6 A basic telephone and a voice terminal connected to a GPA (back
view)
If you set the GPA to the automatic setting, you must program an Auto
Answer-All. button for your voice terminal. (See "Auto Answer-All.")
None
You can select the switch position, labeled Join, Basic, or Auto on the
adapter, required for operating the telephone or data equipment. When you
have made the appropriate selection for your needs, slide the three-position
option switch to the selected mode of operation. For the Joined Call
Operation option, see the information that comes with the GPA.
5-92 Section 5: Reference
