AT&T PagePac Plus User Manual

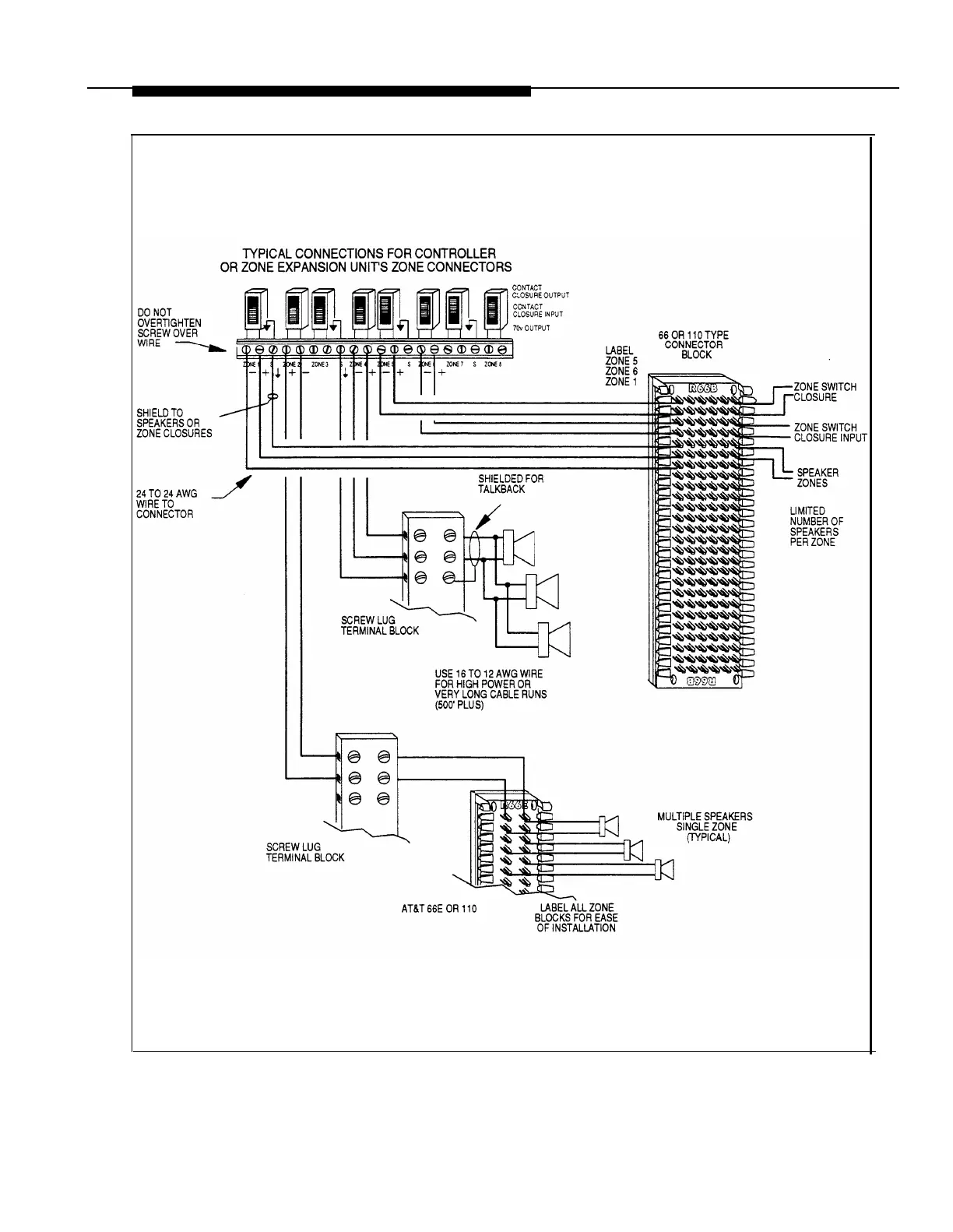

Figure 3-6. Speaker Zone Wiring to Controller
3-12 Installing Hardware
DO NOT
OVERTIGHTEN
SCREW OVER
WIRE
SHIELD TO
SPEAKERS OR
ZONE CLOSURES
24 TO 24AWG
WIRE TO
CONNECTOR
TYPICAL CONNECTIONS FOR CONTROLLER
OR ZONE EXPANSION UNIT'S ZONE CONNECTORS
SHIELDED FOR
TALKBACK
USE 16 TO 12 AWG WIRE
FOR HIGH POWER OR -
VERY LONG CABLE RUNS
{500' PLUS)
§ § 1---------.
'-----ill § § 1--------.
SCREWLUG ~ ~~~'1;:~'-<~ .. ~~---t
TERMINAL BLOCK
LABEL
ZONE 5
ZONES
ZONE 1
AT&T 66E OR 110
LABEL ALL ZONE
BLOCKS FOR EASE
OF INSTALLATION
66 OR 110 TYPE
CONNECTOR
BLOCK
ZONE SWITCH
CLOSURE
·~~-- ZONE SWITCH
~iE--- CLOSURE INPUT
MULTIPLE SPEAKERS
SINGLE ZONE
(TYPICAL)
LIMITED
NUMBER OF
SPEAKERS
PER ZONE
