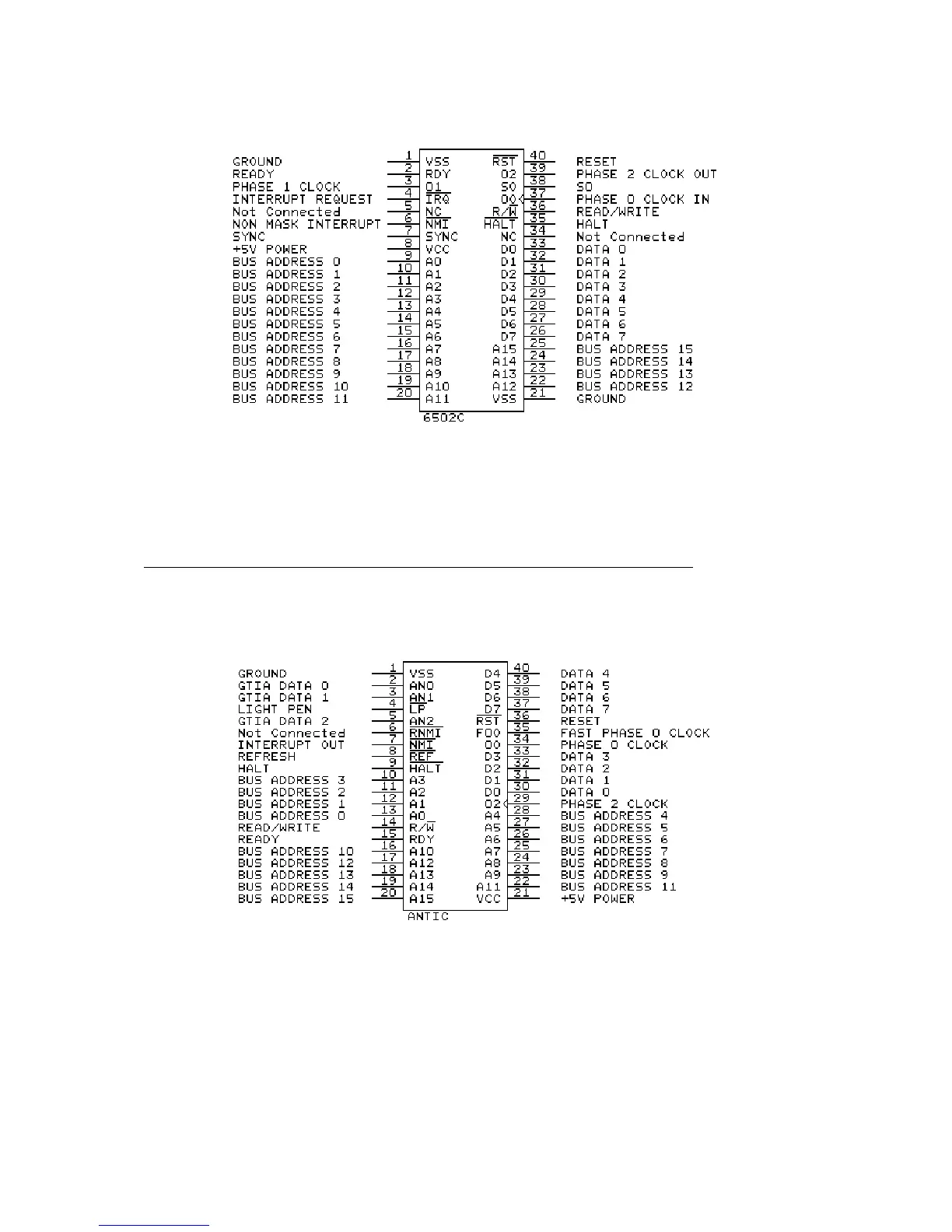

Figure 1-5. 6502C CPU Pin Assignments.
Alphanumeric Television Interface Controller (The ANTIC Display Processor
The ANTIC Display Processor is a custom display microprocessor with an instruction set
customized for graphics generation. It also has the ability to control bus and RAM REFRESH.
Figure 1-6. Display Processor Pin Assignments
130XE Personal Computer
Field Service Manual 1-6
