Atari 130XE Service Manual

USING THE ATARI 65/130XE REV. 3.4 TEST CARTRIDGE
Procedure:
Connect the 130XE console to the TV set as shown in the Operators Manual.
Insert the ATARI 65/130XE R.2 Test Cartridge in the cartridge slot and Test Loopbacks into
proper jacks.
Turn on the computer and TV set.
After a few seconds Select Screen displays. (See Figure 3-1).

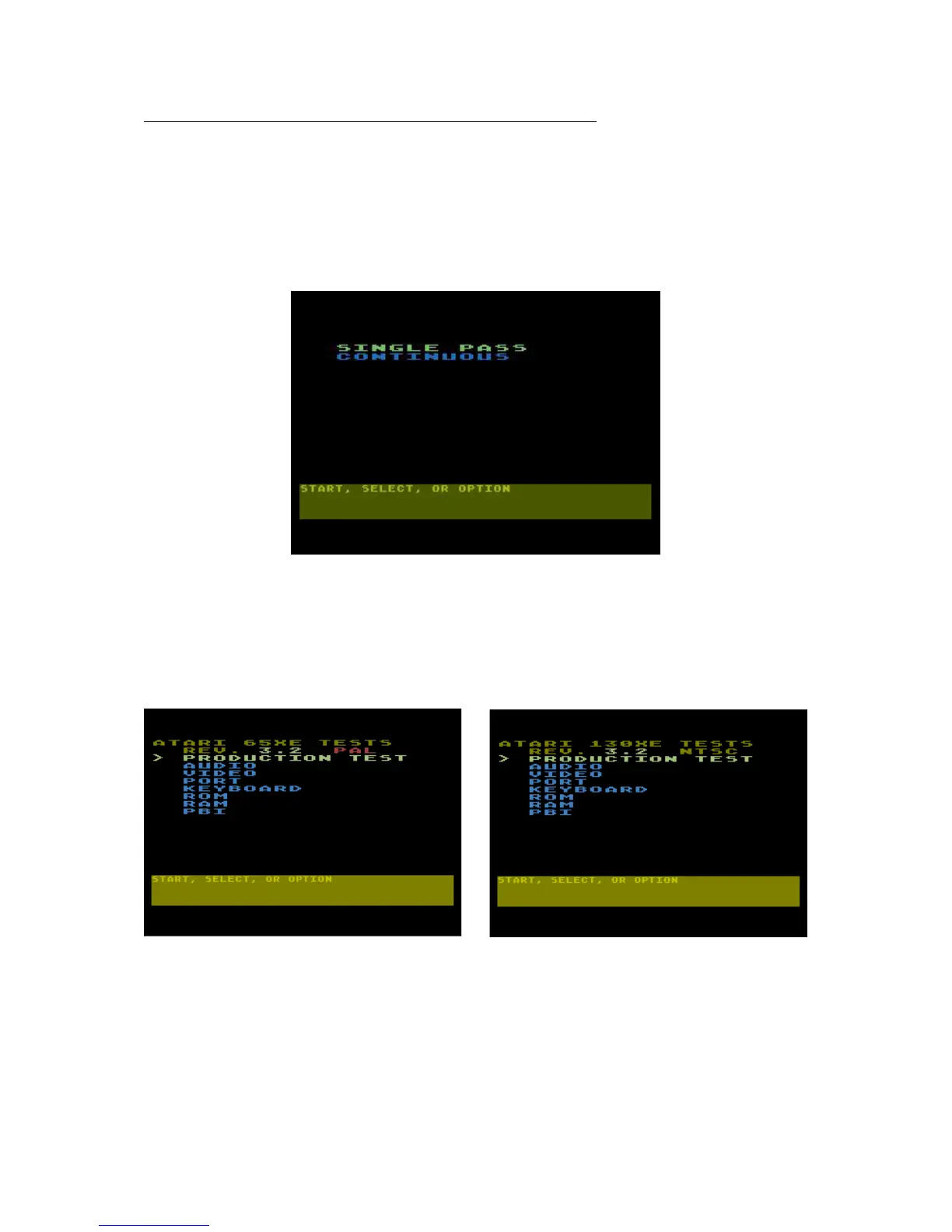

Figure 3-5. Select display
Press SELECT key to select testing mode. CONTINUOUS test allows the execution of the
selected in next step test in the loop multiple, SINGLE PASS performs selected test one time.
After selecting testing mode press START, then displays Main Menu (see below).
Figure 3-6. Main Menu display(on left 65XE NTSC, on right 130XE PAL)
130XE Personal Computer
Field Service Manual 3-4
Now you can choose the right test.
