SMART ON-OFF LEVEL CONTROLLER
Highly recommended Installation, commissioning and maintenance of this device must be done by a qualified
person in compliance with the operating instructions.
4.1 Installation to panel
Smart On-Off Level Controller LC 440 is front panel mounting enclosure type and can be applied to the
front panel with two screw clamps supplied. Allow 20 mm minimum clearance all round the unit for air circulation.

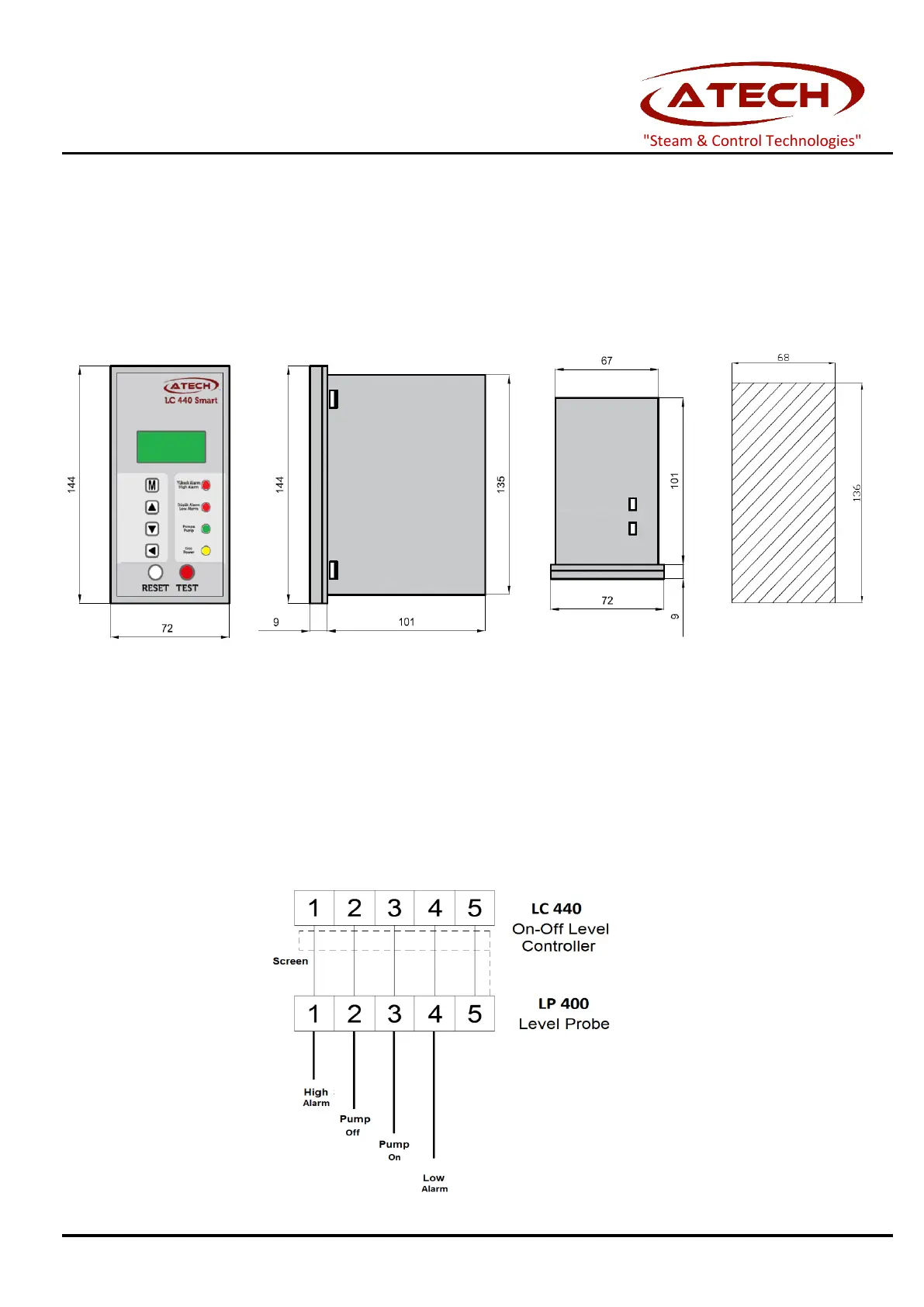

Figure 2 Panel cut out dimensions of Smart On-Off Level Controller LC 440.
4.2 Determination of the Level Functions
Determine required measuring lengths of electrode tips acording to the water levels for the boiler and then cut the
probe tips desired lengths.
Please refer to "LP 400 Installation and Operation Manual for On-Off Level Control Probe" for detailed
information on the Level Probe before assembly.
4.2.1 Pumping-in with one high alarm and one low alarm
