ATEQ D6 Series Quick Start Guide

QSG_D6 CLASS_439.00_EN_01 /_2020-05-04
14/38

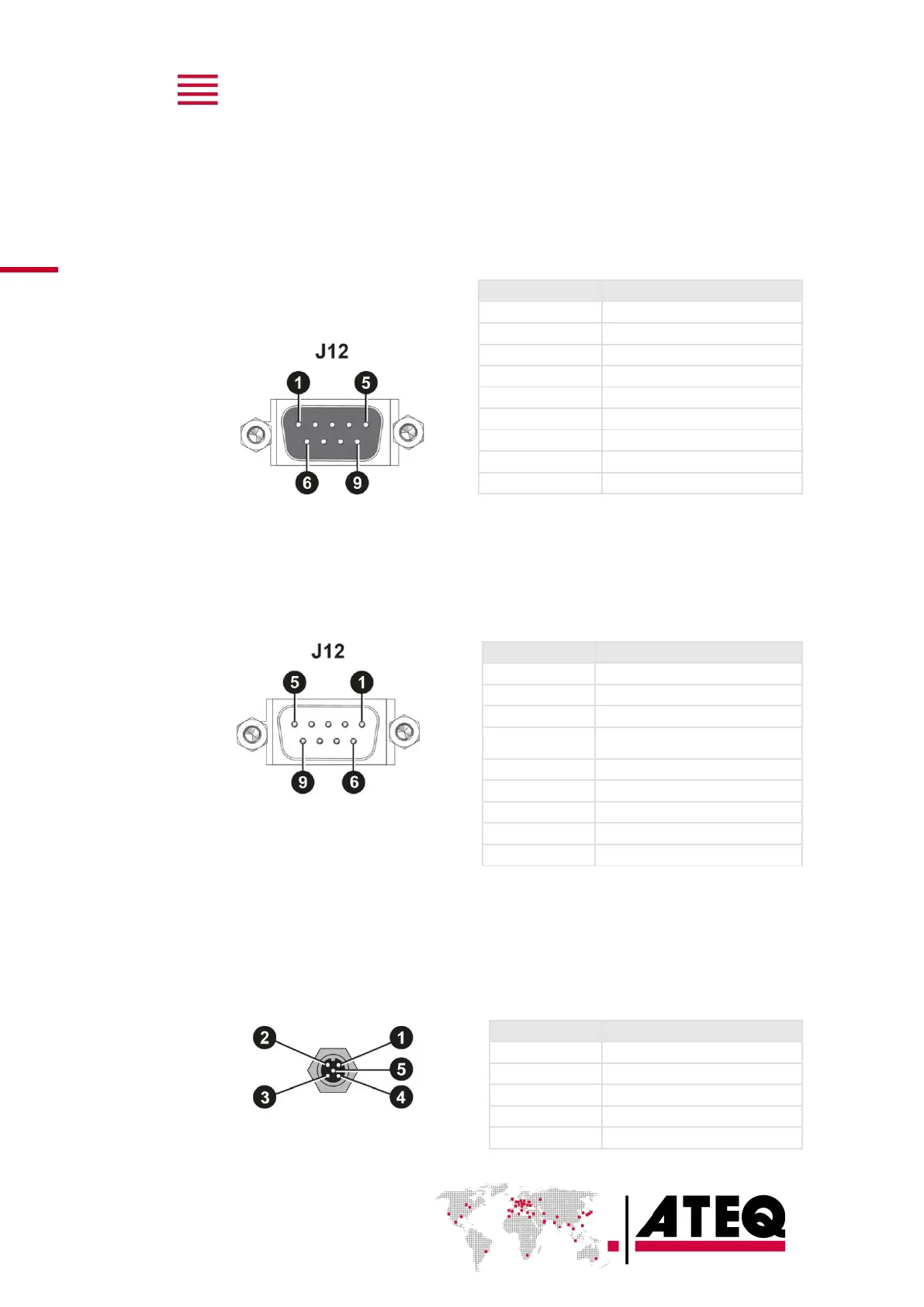

Printer RS232 connector / Modbus (option) or Profibus
(option)
(J12)
RS232 - SubD 9 pins male connector (printer)
RS232 for printer, bar code reader, PC
connection.
RS232 - SubD 9 pins female connector (Profibus) option
Profibus: SubD 9 pins female connector.
Devicenet connectors (J5) (J6) (option)
M12 type connector - 5 pins male connector (J5) (Devicenet input)
For connection to others ATEQ devices.
Pin number
Signal
1
Not used
2
RXD data input
3
TXD data input
4
Not used
5
Ground
6
Not used
7
RTS request to send
8
CTS clear to send
9
Not used
Pin number
Signal
1
PE (ground)
2
Not used
3
Data line A
4
CNTR - A (repeater control
signal)
5
DGND (logic ground)
6
VP (supply)
7
Not used
8
Data line B
9
Not used
Pin number
Signal
1
Drain
2
V+
3
V-
4
CAN_H
5
CAN_L
