QSG_D6 CLASS_439.00_EN_01 /_2020-05-04
16/38
DIGITAL INPUTS/OUTPUTS
The 24V DC power supply for the digital inputs can be provided by 2 means:
The internal power supply of the device (0.3 A max)
An external power supply provided by the customer.
Inputs default mode is PNP. NPN mode is available on request.

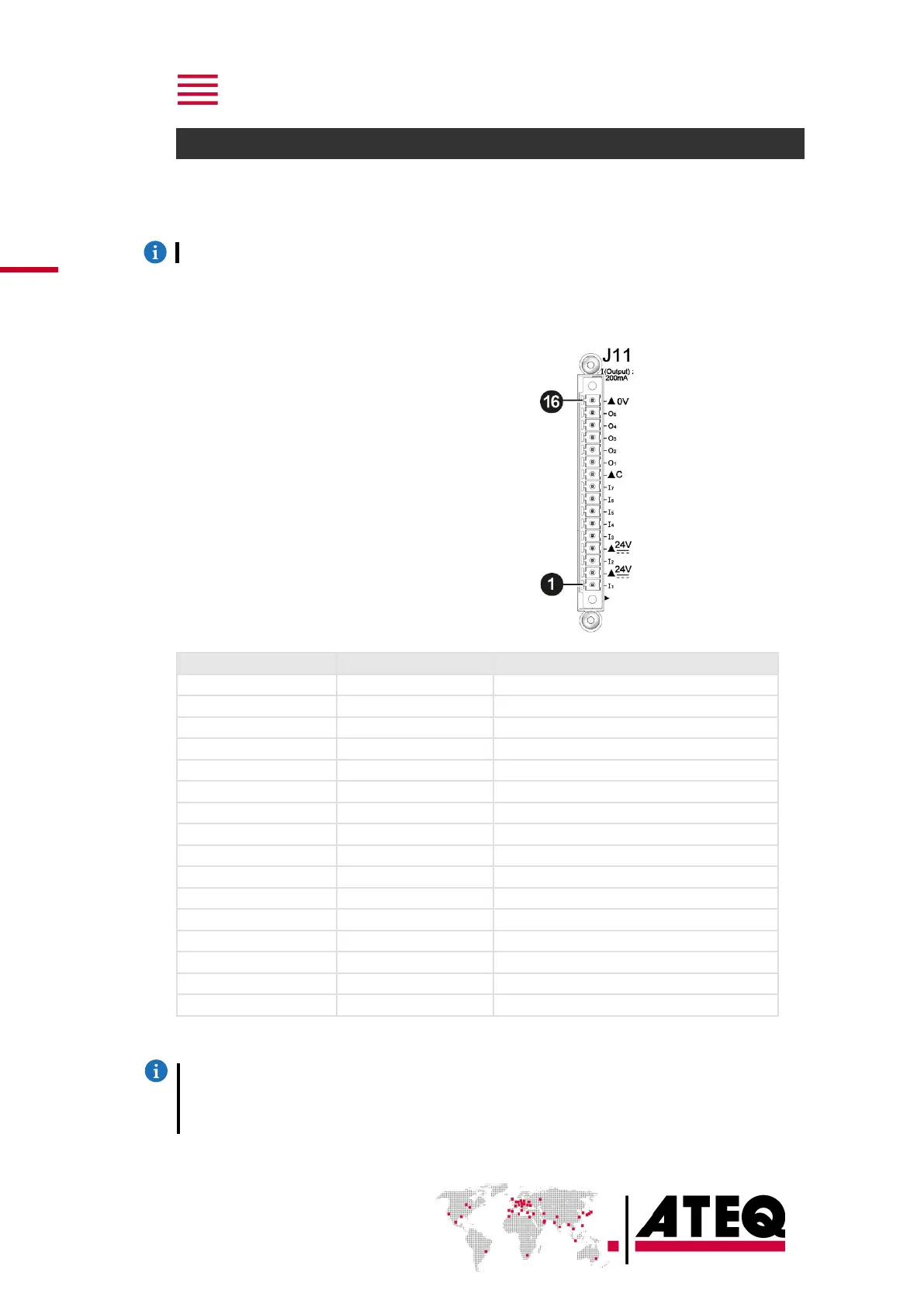

Relay board connector (J11) (option)
Characteristics
Inputs
•  Activation: + 24 V DC
Outputs
•  Dry contacts
•  60 V AC / DC max - 200 mA max.
The device can be energized through the J11 connector of the relay board (except if
internal supply option):
0 V to the pin 16
24 V DC to the pin 2 or 4
Pin number
Inputs / outputs
Description
1
Input 1
RESET
2
+ 24 V DC
Common
3
Input 2
START
4
+ 24 V DC
Common
5
Input 3
Program selection
6
Input 4
Program selection
7
Input 5
Program selection
8
Input 6
Program selection
9
Input 7
Program selection (programmable input)
10
Output
Common floating output
11
Output
Pass part
12
Output
High flow fail part
13
Output
Low flow fail part
14
Output
Warning
15
Output
End of cycle
16
0 V
Ground
