To keep the equipment in a better protective status, please adopt transportation with package as
much as possible, and comply with the labels printed on the package in transportation:

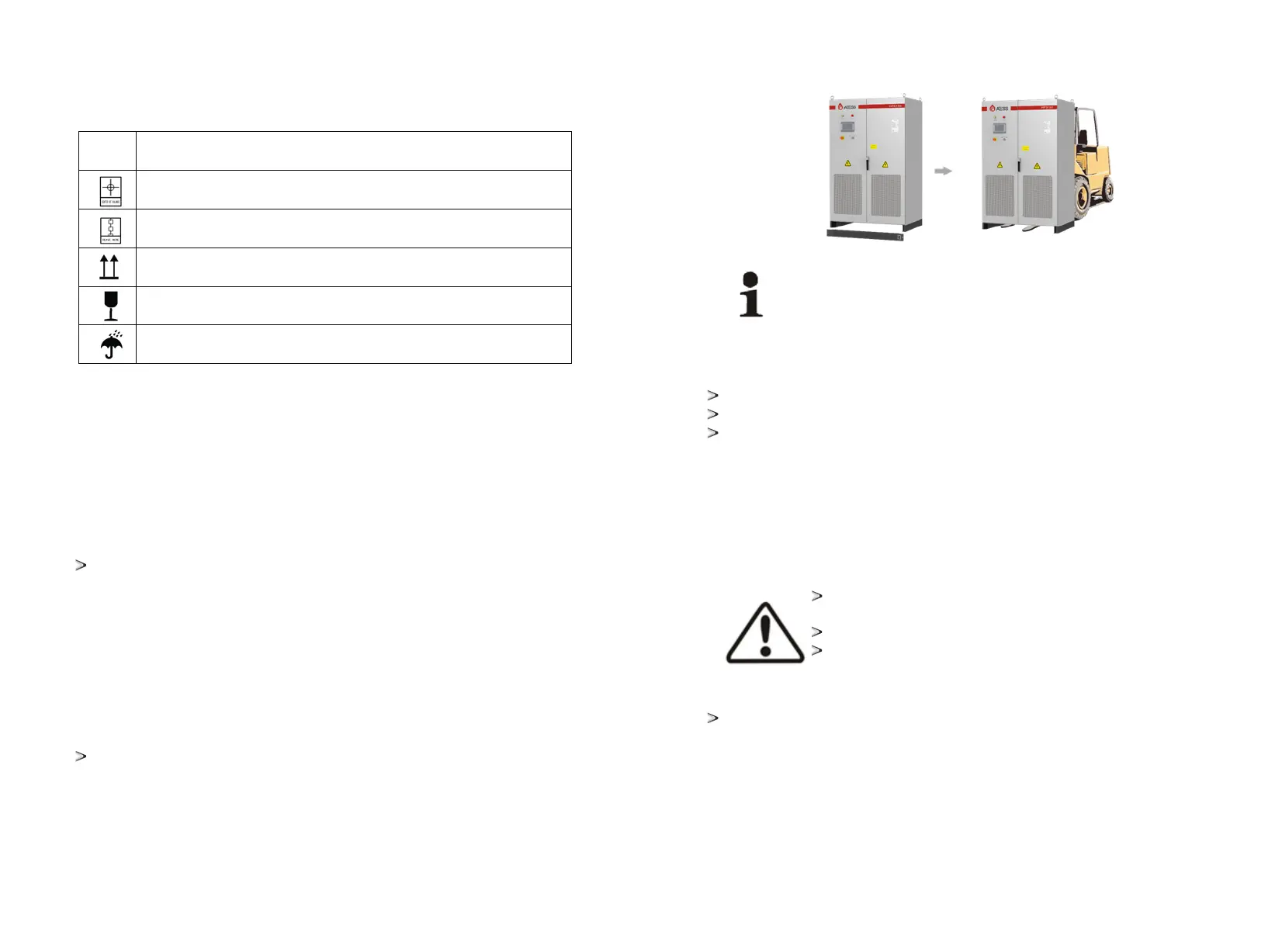

Indication
The gravity centre
Lifting logo
Face up to prohibit the PBD horizontally, tilted or upside down
Handle with care, to avoid the transport environment
too intense collision friction damage to the PBD
Keep away from moisture
Sign
PBDs whose packages are not demolished can be moved with forklift, hoisting crane or crane. In moving,
attention shall be paid to the weight painted on the package to ensure enough load capacity of the
devices. As the gravity center of the equipment locates at the lower place symmetrical in front and back
and left and right, the support point or hoisting point shall be arranged reasonably in transportation.
The forklift transportation is the standard one. The gravity center of the cabinet in transportation should
locate between two forks of the forklift. The big-size PBD may block driver's sight, and it shall be treated
with cooperation of the aid personnel.
5.3.2 Movement and installation of bare machine
Please demolish the packaged cabinet of the equipment according to the following procedures:
Procedure 1: Demolish the wood side and roof of the packaged cabinet
Procedure 2: Demolish the out-set package material on the machine
Procedure 3: Demolish the fastening screws between the machine and the pallet
① Demolish the front and back cover lids of the pedestal;
② Screw off the hold-down nuts at the bottom of the wood pallet;
③ Remove the screws, and the PBD will depart from the wood pallet.
Demolish the package of PBD
Movement and installation of bear machine
The PBD with demolished package can be moved with forklift, hoisting crane, slide rail or crane. If the
package demolished place is far from the final installation place, it can be transported with forklift
containing wood pallet.
If the wooden pallet at the bottom of the machine has been removed, when using the forklift, the front
and rear cover plates of the base need to be removed first, and the center of gravity should be placed in
the middle of the two forklifts, and then start lifting and transporting, as shown in the following figure:
Caution, risk of danger
We must act slowly and gently when transporting the PBD with forklift to avoid
violent vibration of the PBD or collision with other objects.
If lifting method is used for moving, please pay attention to the lifting position, ensure that the
lifting angle is 70 °, and be cautious of the center of gravity position of the PBD.
NOTE:
It is necessary to always pay attention to the position of the center of gravity of PBD.
Take necessary auxiliary measures to ensure the safety of transportation personnel;
Take necessary auxiliary measures to ensure that the equipment is delivered to the final
installation site.
5.4.1 Input and output requirements
5.4 Electrical installation
Caution, risk of danger
There is a danger of electrical shock of high voltage in PBD’s operation; only
electricians of professional skills can operate.
All connections with this equipment shall be done under non-voltage state.
The PBD may be damaged if input or output terminal is incorrectly plugged.
Failure of acting upon this information may cause serious personnel injury or
significant property loss even to death.
The positive and negative highest voltage of the battery for PBD350 shall not exceed 800V, for PBD250 shall
not exceed 850V, otherwise, the equipment will be in over-voltage protection state, and cannot work
normally.
Battery
17
