ATESS PBD250 User Manual

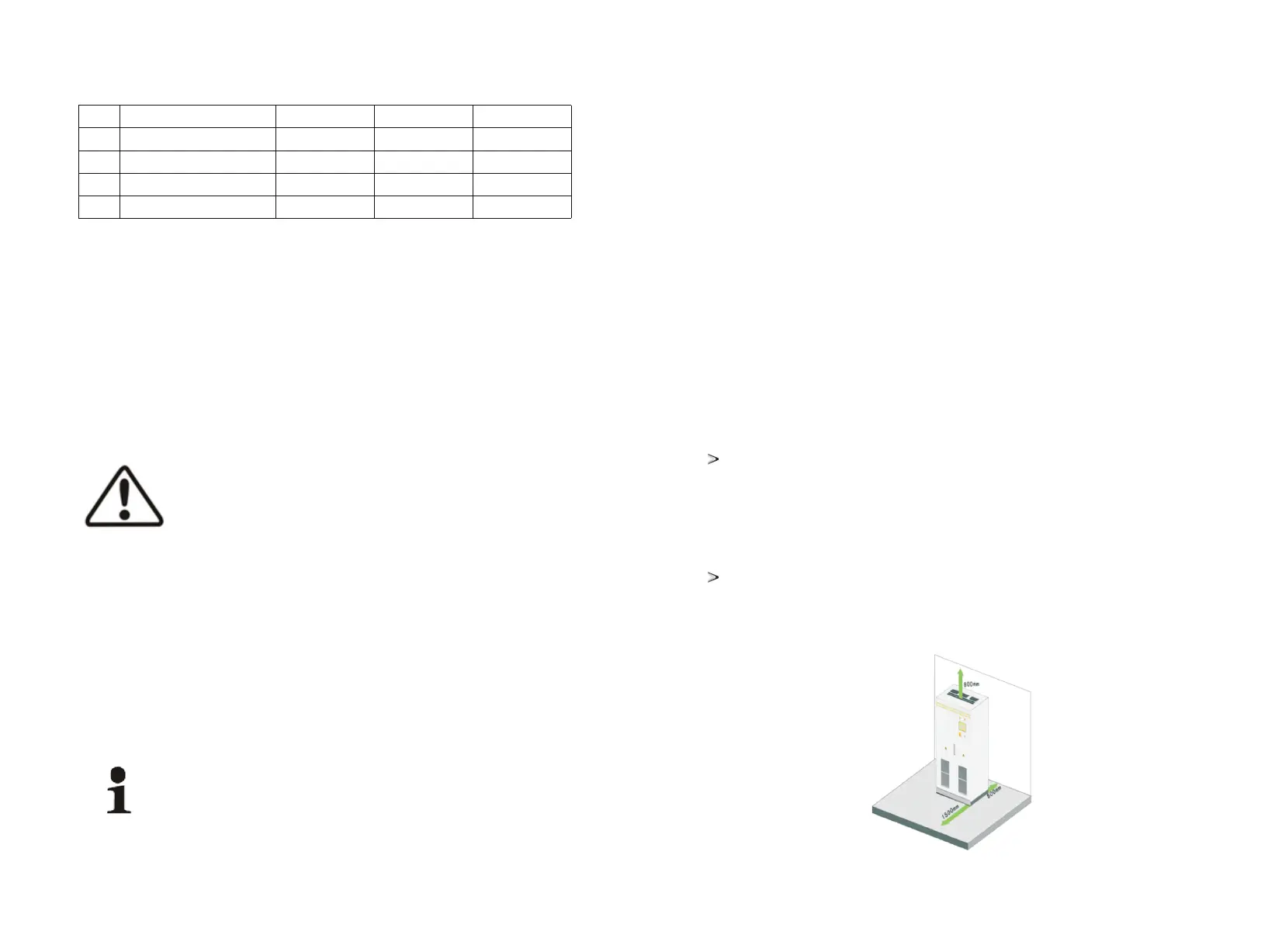

3.7 Packing information
Name
PBD
User manual
Certificate
Factory test report
NO
1
2
3
4
Unit
unit
pcs
pcs
pcs
Qty.
1
1
1
1
Note
Key included
Figure--Packing information
4
Transportation and storage
4.1 Transportation
Transportation should follow the transportation methods described in the user manual. The PBD's
weight and center of gravity should be taken into account during transportation. The center of
gravity is marked on the box.
Caution, risk of danger
During transportation, lifting equipment and personnel must be qualified.
The PBD should be placed vertically and the inclination cannot be more than
10 degrees. It is not allowed to place the PBD upside down or transport in a
horizontal position. Incorrect lifting and transportation can lead to serious
injury, property loss and damage to the controller.
4.2 Inspection and storage
The PBD should be carefully checked before signing the document from the transportation
company. Check the received items against delivery note, and if there is any defect or damage,
immediately notify the transportation company. If necessary, you can seek help from Atess
Customer Service department.
Caution
ATESS PBD can only be stored when it is sealed. Therefore make sure it’s dust and
moisture-proof inside the machine. If storage time is long, PBD must be stored in a
dry environment to prevent water from entering inside.
5
Installation
5.1 Installation condition requirements
To ensure normal operation of the machine, the installation environment is required
as follows:
> The ingress protection of PBD is IP20. Moreover, as this product is an electronic equipment, it
shall not be placed in humid environment;
> Install indoors and avoid sunlight and rain;
> Ventilation of the room shall be good;
> The installation environment shall be clean;
> As some noise will be produced in operation, this equipment shall be installed far
from residential quarters;
> The installation ground shall be even enough, and firm enough to support the weight of PBD;
> The installation position shall be convenient for maintenance;
> Ambient temperature range: –25°C~55°C;
> Appropriate space shall be reserved for the machine to ensure ventilation and cooling.
We suggest PBD to be installed in the distribution room. The floor, wall clearance,
Ventilation equipment and precaution should be designed by professional personnel
and satisfy the following requirements.
Foundation requirement
PBD is required to install on even ground with fire-retardant material as the surface or channel steel
support structure, and sag or tilt ground is prohibited. The foundation shall be solid, safe and
reliable. The foundation shall be capable of bearing the load of PBD. Its load bearing ability shall be
concerned throughout the installation place selection.
Clearance space
During installation of the PBD, appropriate space shall be left to the wall or other equipment, in
order to satisfy the requirements on narrowest maintenance channel, emergency access and
ventilation.
13
14
