Emergency STOP
The emergency stop button immediately disconnects the PBD from all the external connection,
which ensure the safety of the controller. By pressing the emergency stop button, the device will
be locked in the "off" position. Only after removing all faults, release the emergency stop button
by rotating it clockwise, can the controller resume working normally.
Off-on knob
It is used to start or stop the controller.
Off-on knob
Touch screen
It displays the controller’s operating parameters, power generation, and faulty information record.
3.3.2 internal component
The internal components of PBD include:PV circuit breaker, battery circuit breaker, maintenance
switch, load circuit breaker, power supply micro break, AC lightning protection switch, PCB, etc.

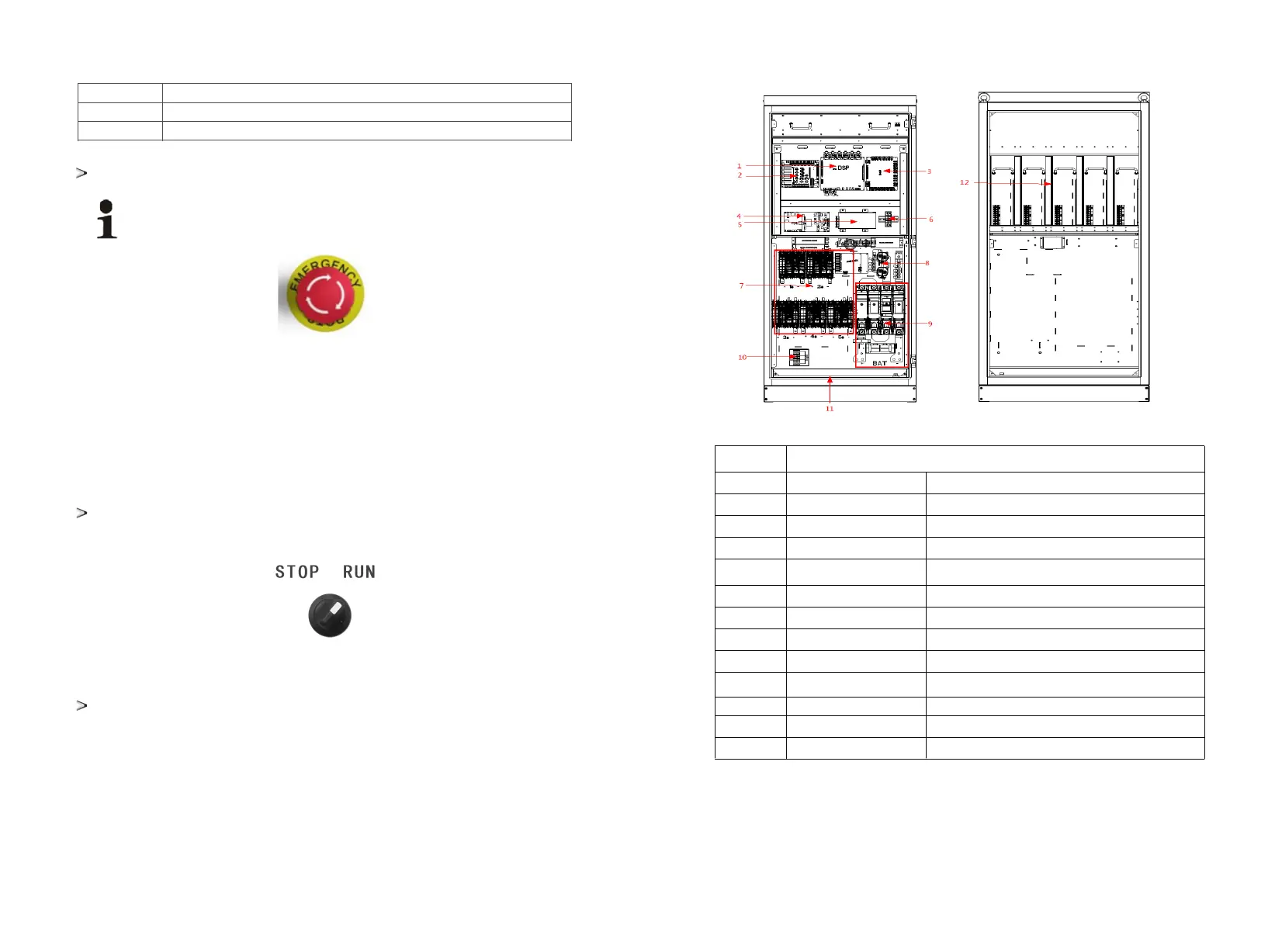

Following is the structural drawing of pbd250 / 350 front and back side.
The front structural drawing of PBD250
NO
1
2
3
4
5
6
7
8
9
10
11
12
Name
Control board
Interface board
Power supply micro break
PV circuit breaker
Main relay of battery
Battery circuit breaker
AC fan switch
Earth terminals
Description
Main board includes communication interface
Power supply conversion PCB
Depressurize DC high voltage to supply power
to PCB
Control board power supply switch
Control the disconnection of PV with PBD
Pull in main relay after soft start
Control the connection between battery and PBD
Control the connection of AC220
Grounding bronze terminals
The back structural drawing of PBD250
Sampling board Voltage current temperature sampling PCB
BUCK board
Power supply for control board
Power source
Module
5 modules including IGBT, capacitance, inductance, etc.
Model
PBD250
LED
POWER
FAULT
Description
The indicator lights when power supply to PBD is normal.
The indicator lights when there is failure in circuit system.
Emergency STOP
The emergency stop button is only used in case of emergency,
such as: fire, leakage, serious operation error and other situation requiring
immediate shutdown!
LED indicator description
7
8
