Atlantic alfea extensa duo+ - Electrical Connections on the Outdoor Unit Side

General electrical
supply
Terminal
block
Interconnection
between the external unit
and the hydraulic module

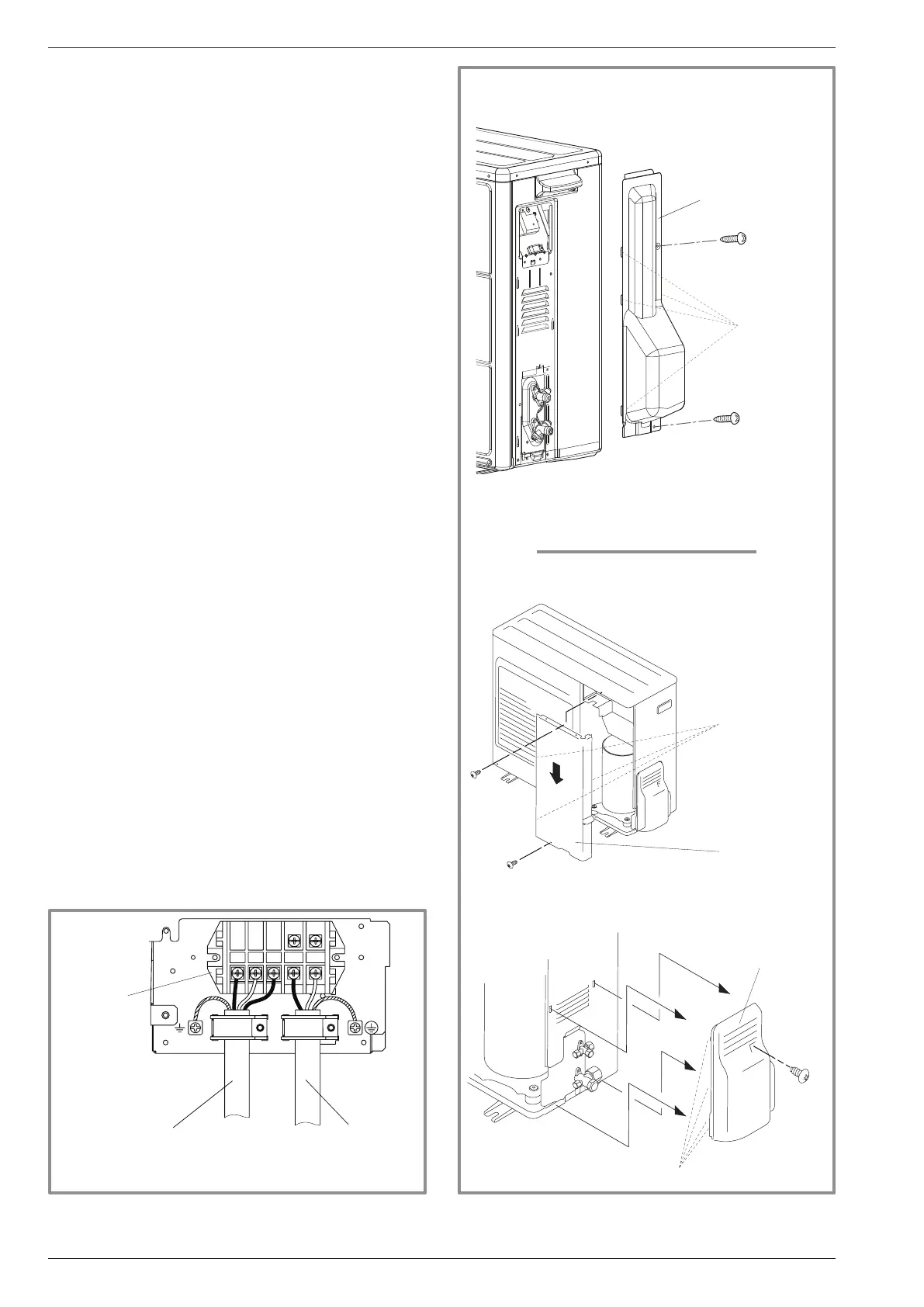

gure 32 - Connections to outside unit’s terminal block
Remove the cap
(1 screw)
Brackets (4 places)
Remove the
front panel
(2 screws)
Bracket
(3 places)
Remove the cap
(2 screws)
Brackets
(4 places)
2.11.5 Electrical connections
on the outdoor unit side
Access to the connection terminals:
• Model extensa duo + 5, 6 & 8
- Remove the cap.
• Model extensa duo + 10
- Remove the front panel, remove the cap.
- Make the connections in accordance with the diagram
gure 32.
- Use cable clamps to prevent the conductors from
being disconnected accidentally.
- Fill in the space where the cables enter the outside
unit with the insulating plate.
gure 33 - Access to outside unit’s terminal block
Installation and operating manual "1578 - EN"
Heat Pump alféa extensa duo +
- 30 -
" Model extensa duo + 5, 6 & 8
" Model extensa duo + 10
