CD 1
+
up to CD 22
+

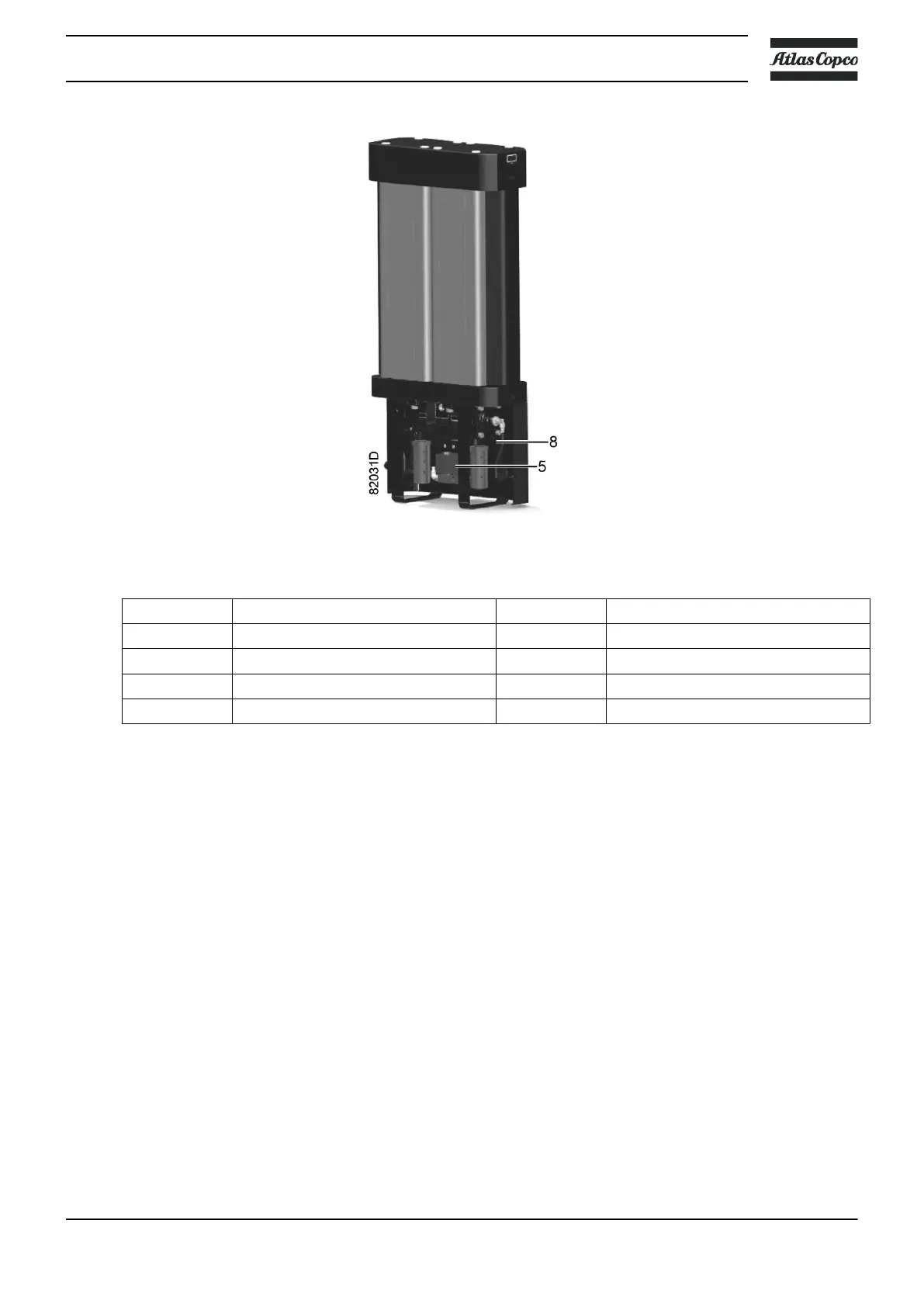

, Back view
Reference Description Reference Description
1 Tower A 5 Solenoid valve
2 Tower B 6 Silencers
3 Air inlet 7 Valve block
4 Air outlet 8 Controller
2.2 Operation
General
The construction of the air dryer is simple, reliable and easy to service. A dryer has basically two towers,
containing the adsorption material or desiccant. This desiccant is a very porous grain material, able to
adsorb large amounts of water vapour.
