Controller connections
Controller connections

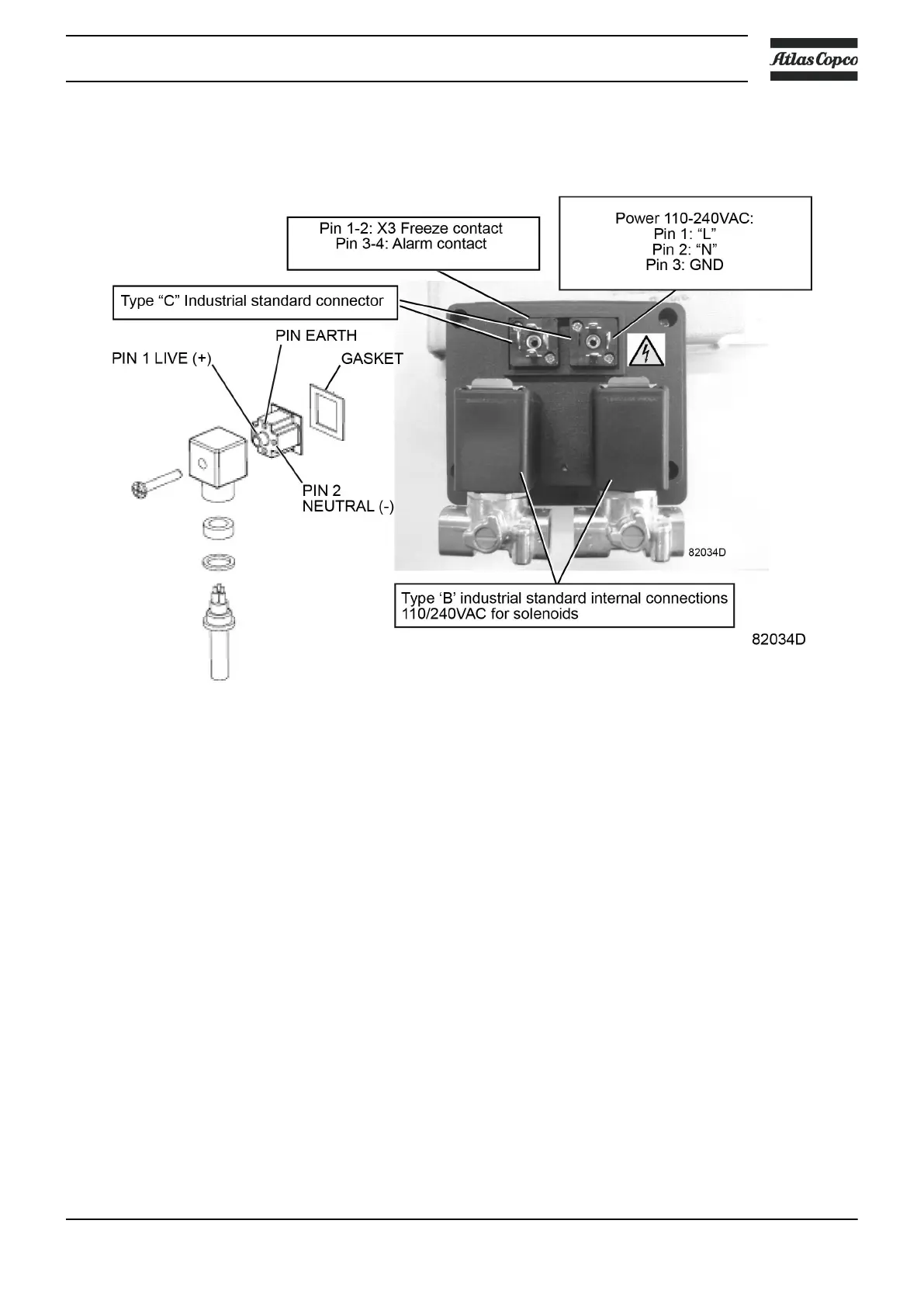

Mains connection
The mains cable is included with the product. The mains plug needs to be installed during commissioning.
Cable specification according to IEC60227 (for polyvinyl chloride insulated cables) or IEC60245 (for
rubber insulated cables)
Equipment intended for use in the EU does not have a fuse fitted to the mains plug and therefore requires a
separate fuse in the mains line. When used in the UK, a 3 A fuse should be fitted to the mains plug as per
the following wiring diagram.
Instruction book
2920 7083 21 25
