X3 is used
If the X3 connection is used, the correct installation sequence is compressor - dryer - air
receiver.

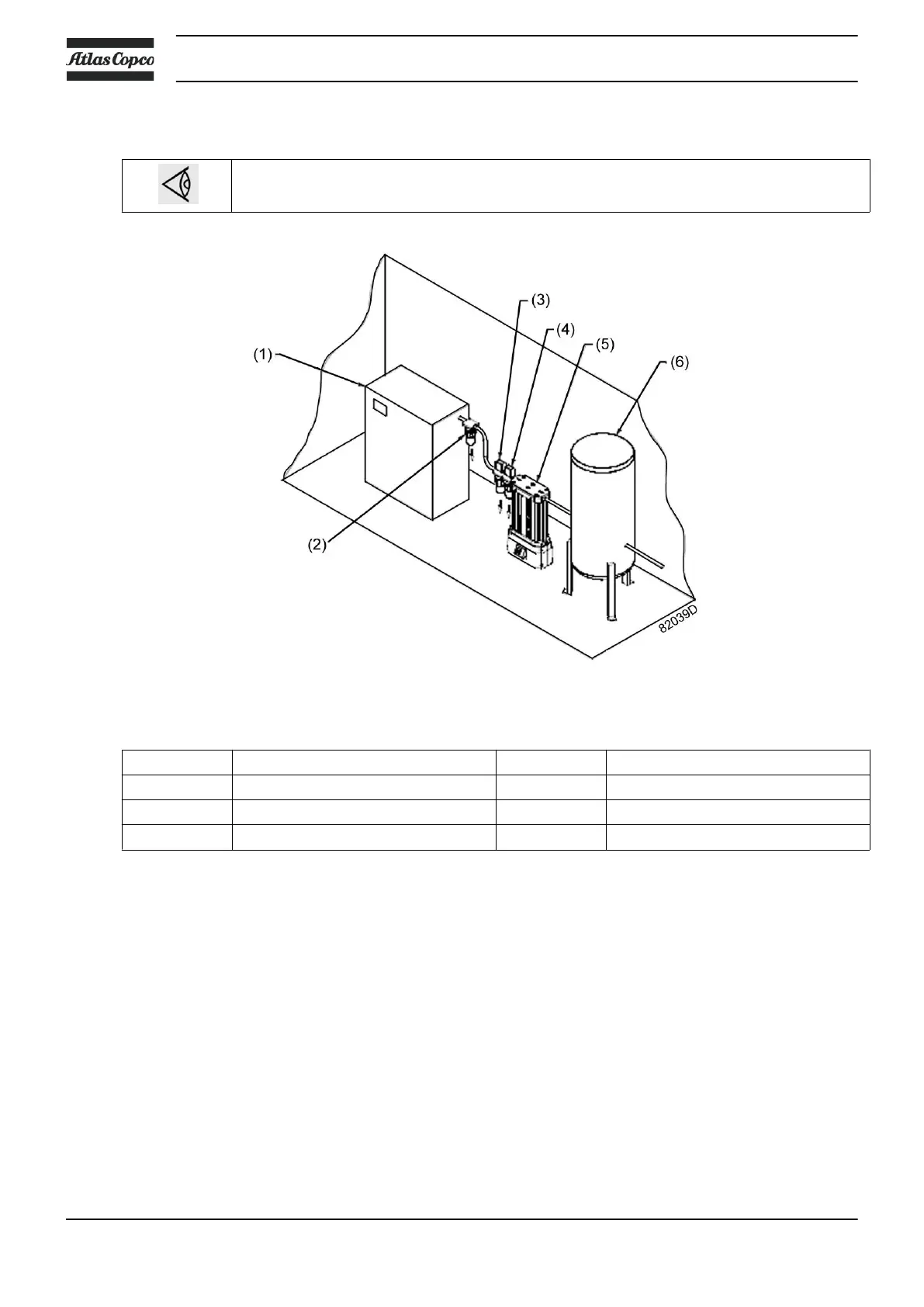

Installation in case the X3 connection with the compressor is used
Reference Designation Reference Designation
1 Compressor 4 PD filter
2 Water separator 5 Dryer
3 DD filter (not required) 6 Receiver
General recommendations
Important: Keep the following in mind when installing the dryer:
• Place the dryer at a location where the temperature never exceeds the limits, see section Limitations
for operation.
• The dryer does not require extra ventilation.
• Fix the dryer as level as possible to the wall or to the floor. For certain models, a wall mounting kit is
available as option - see spare parts book for part numbers. Make sure the fixating screws are
tightened firmly and that the wall or the floor is suitable for taking the weight of the dryer.
• Provide enough space around the dryer to install and service the filter elements. A minimum free
space of 800 to 1000 mm is recommended.
If the filters are mounted directly onto the dryer, the dryer should eventually be positioned higher to
enable servicing of the filter elements.
Instruction book
20 2920 7083 21
