4.2 Installation proposal
Piping
Make sure that all pipes, filters, valves, etc. are clean and that they are installed correctly
with or without bypass system.
Make sure that the piping is installed stress-free. For more information concerning air nets,
cooling systems etc., refer to the compressor installation manual.
To ensure correct operation of the dryer, it has to be fitted properly into the compressed air circuit.
Depending from the fact if the remote control connector X3 is used or not (see section Operation), there are
two possibilities:
X3 is not used
If the X3 connection is not used, the correct installation sequence is compressor - air
receiver - dryer.

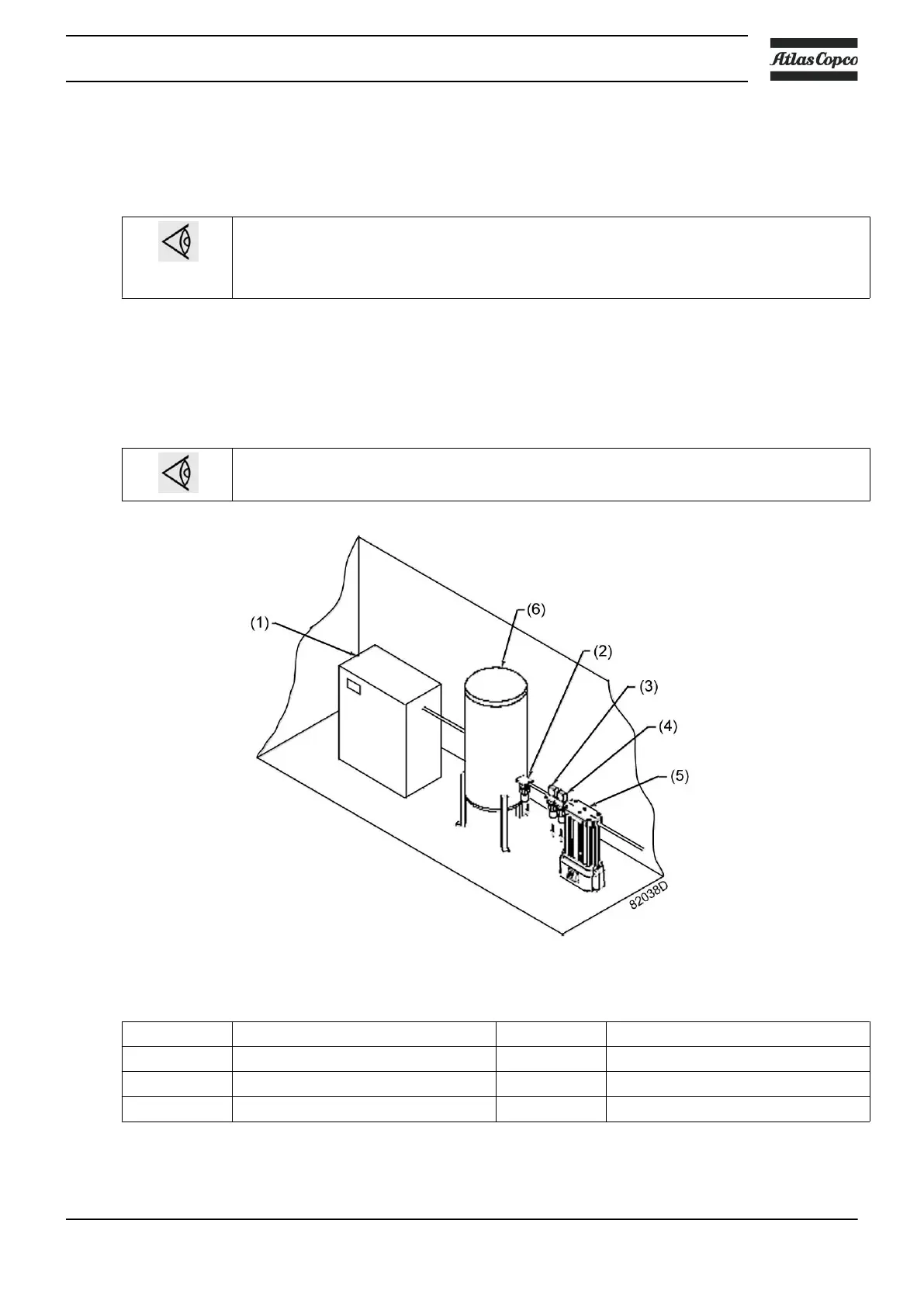

Installation without use of the X3 connection with the compressor
Reference Designation Reference Designation
1 Compressor 4 PD filter
2 Water separator 5 Dryer
3 DD filter (not required) 6 Receiver
Instruction book
2920 7083 21 19
