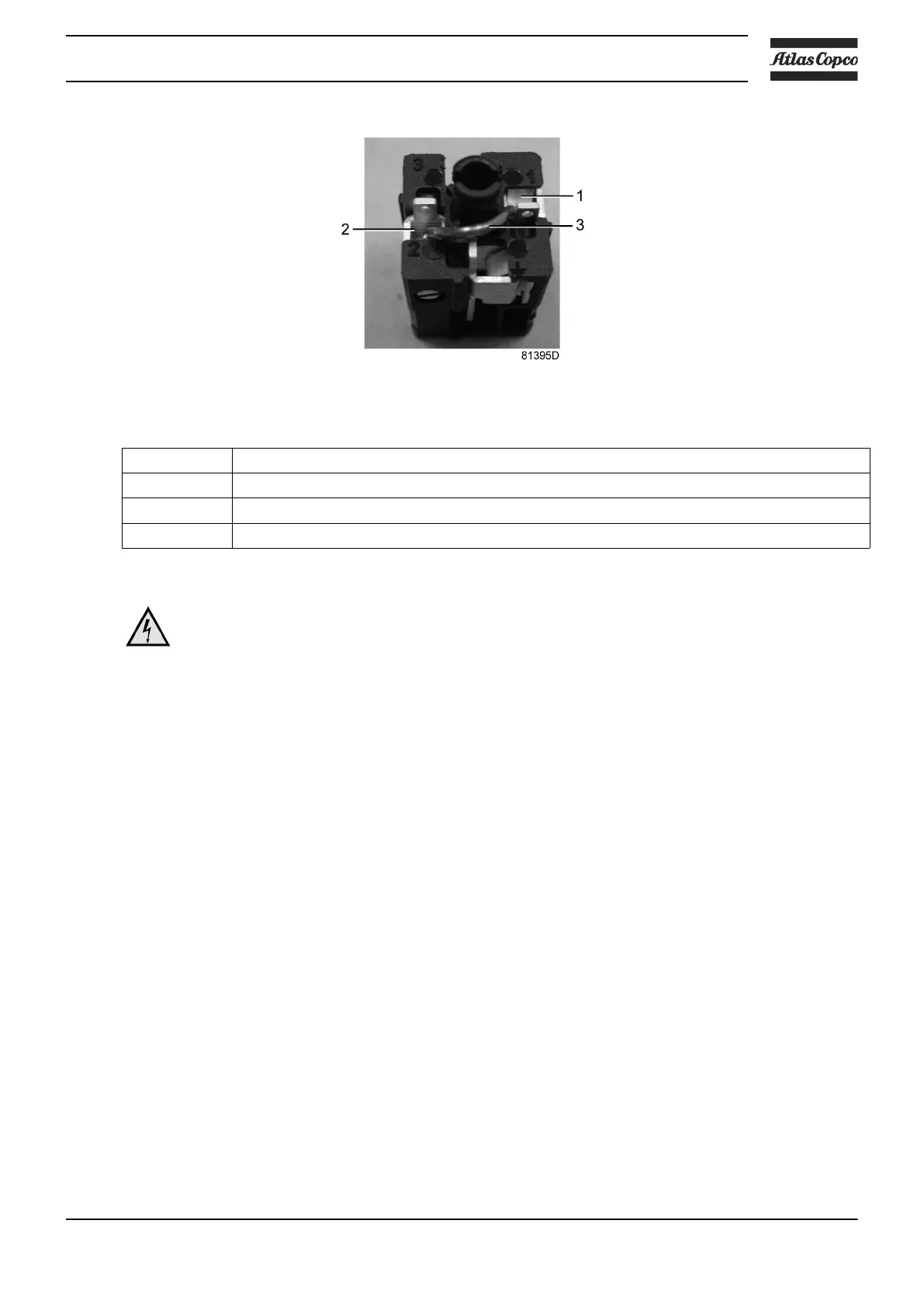

Picture of jumper wire
Reference Designation
1 Pin 1
2 Pin 2
3 Jumper wire
Alarm contact
When the controller is switched on, the contacts close and remain closed unless an alarm condition is
required, as follows:
• The contacts open if the main power fails, or the internal power supply fails. There is no LED
indication on the control unit. The contacts close if power is reconnected.
• The contacts open if either solenoid does not draw current when power is applied to it. The
corresponding green LED turns red and remains on until reset by the reed relay (underneath the blue
bar icon).
• The contacts open when either the 11500 or 12000 hour service indicator LED's come on, and remain
open until reset. A service interval timer is included. An orange LED will flash after 11500 hours
operation, and a red LED will flash after 12000 hours. Consult section Resetting the service counter.
The service interval timer is reset by activation of a reed relay by means of an externally applied
magnet. When the reset switch is closed, the yellow and red LED's illuminate continuously.
The mains cable should be fed through the side cover panel of the dryer. In order to do so: cut out the
middle part of the grommet and lead the cable through.
Instruction book
2920 7083 21 27
