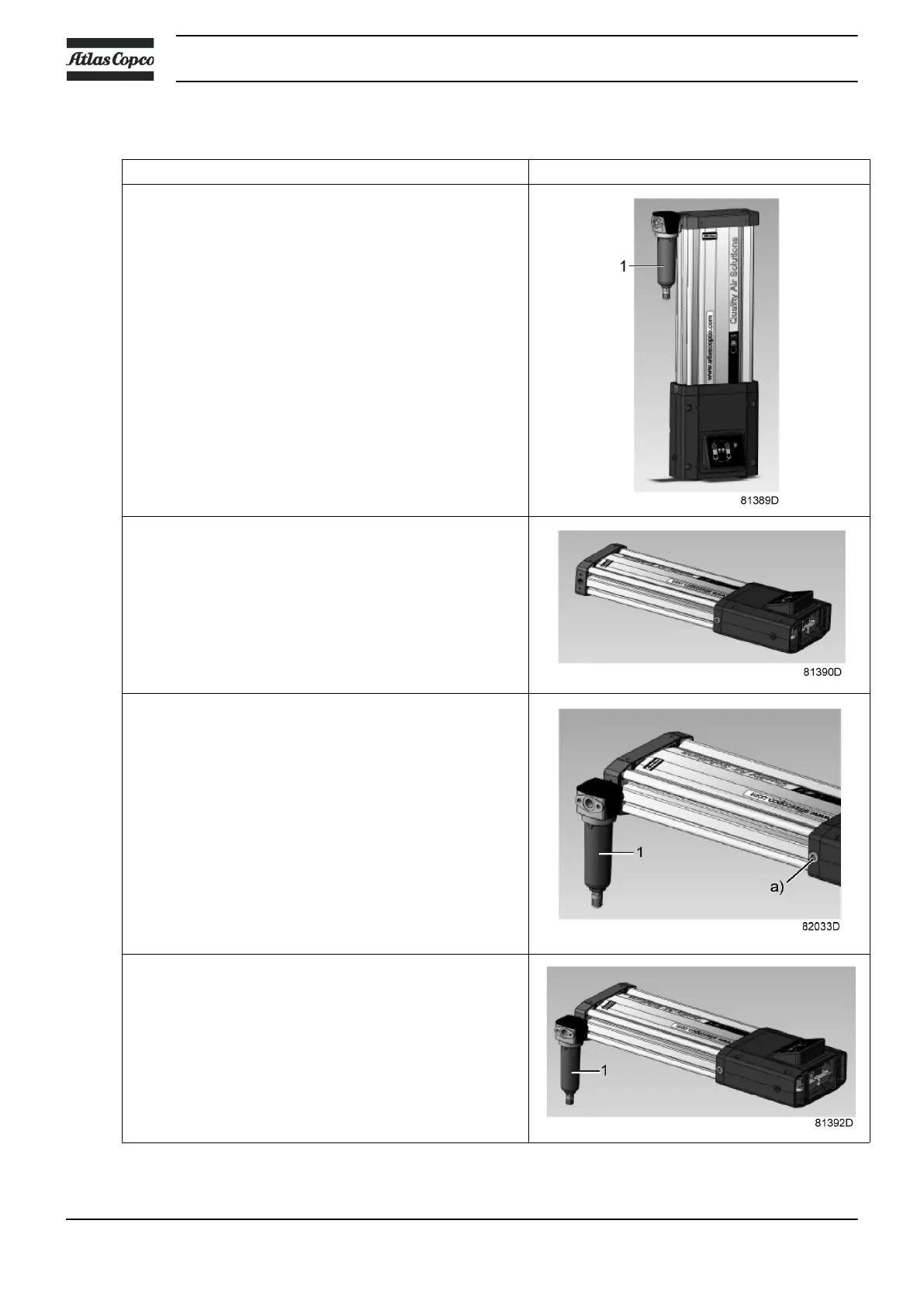

Horizontal installation
Description Figure
Inlet filter as fitted to the dryer in vertical orientation.
A mounting kit allows to couple the filter directly to the
inlet manifold (CD 1
+
up to CD 3
+
). For CD 5
+
up to CD
22
+
, an adaptor nipple is supplied as standard.
For horizontal installation, the dryer must be suitably
supported. It has to be oriented as shown only (not on
one of its sides).
A nipple adaptor is required for connection of the prefilter.
The inlet filter must be fitted vertically and coupled as
closely to the inlet port on the manifold.
a) The filter can also be mounted directly onto the bottom
manifold. In this setup, the inlet on the top manifold
should be plugged.
Dryer in horizontal plane.
Consideration must be given to supporting and to
clearance for removal of the filter bowl.
Instruction book
22 2920 7083 21
