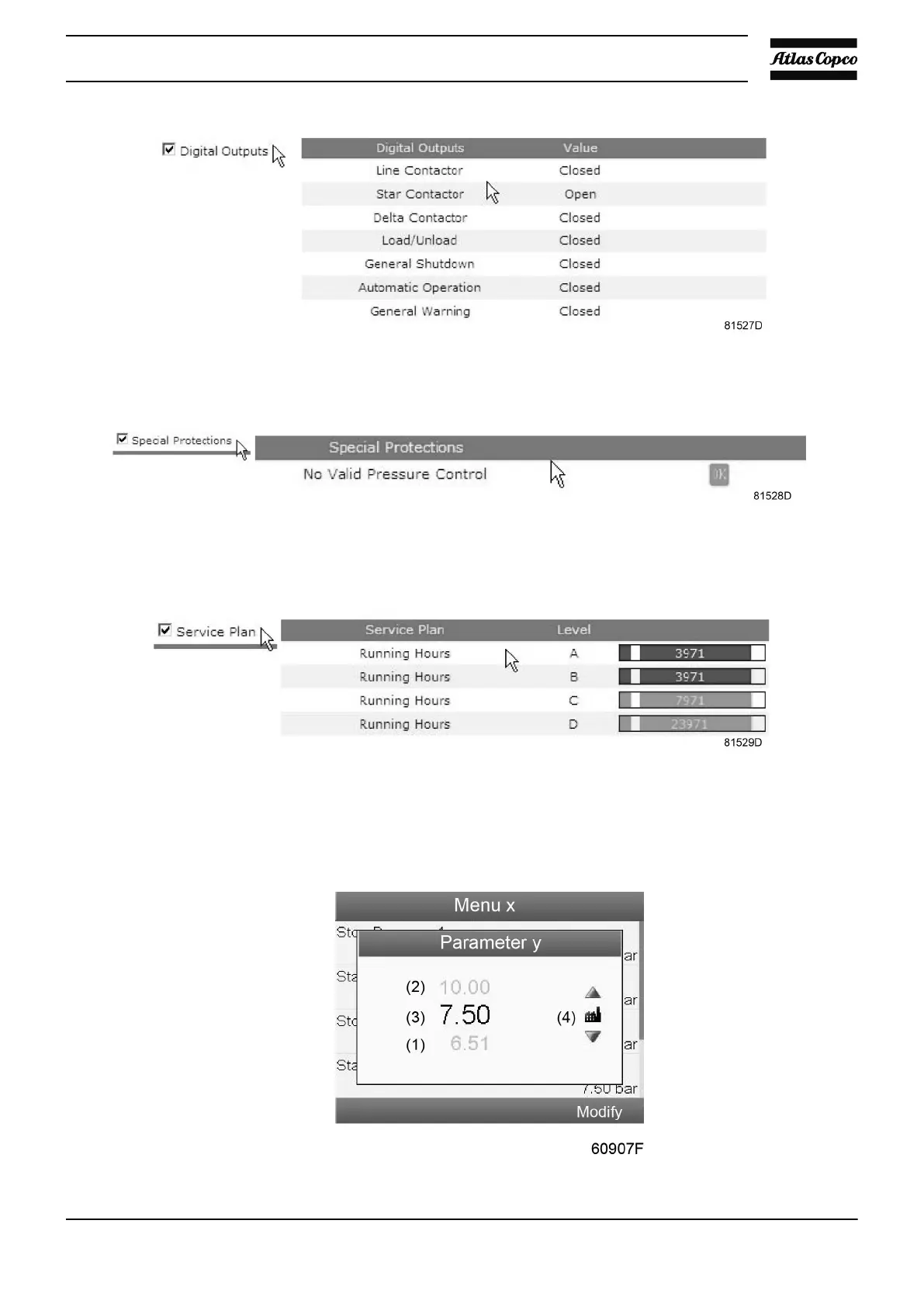

Special protections
Lists all special protections of the unit.
Service plan
Displays all levels of the service plan and their status. This screen shot underneath only shows
the running hours. It is also possible to show the current status of the service interval.
3.7 Programmable settings
A number of controller parameters are programmable. Check the generic screen shot on
programmable parameter Y in menu X below:
• (1) = the minimum value
Instruction book
APF221384 41

Atlas Copco G 160 VSD Specifications

General

Compressor Type	Rotary Screw
Power Output	160 kW
Maximum Pressure	13 bar
Weight	740 kg (1631 lbs)
Dimensions (L x W x H)	1930 x 1150 x 1550 mm (76 x 45 x 61 in)
Free Air Delivery	21.7 - 44.2 l/s (46 - 93 cfm)
Working Pressure	4-10 bar (58-145 psi)
Installed Motor Power	160 kW
Pressure	7 - 13 bar
Motor Power	160 kW
Power Supply	400 V / 50 Hz
