2920 1449 00
24
Instruction book

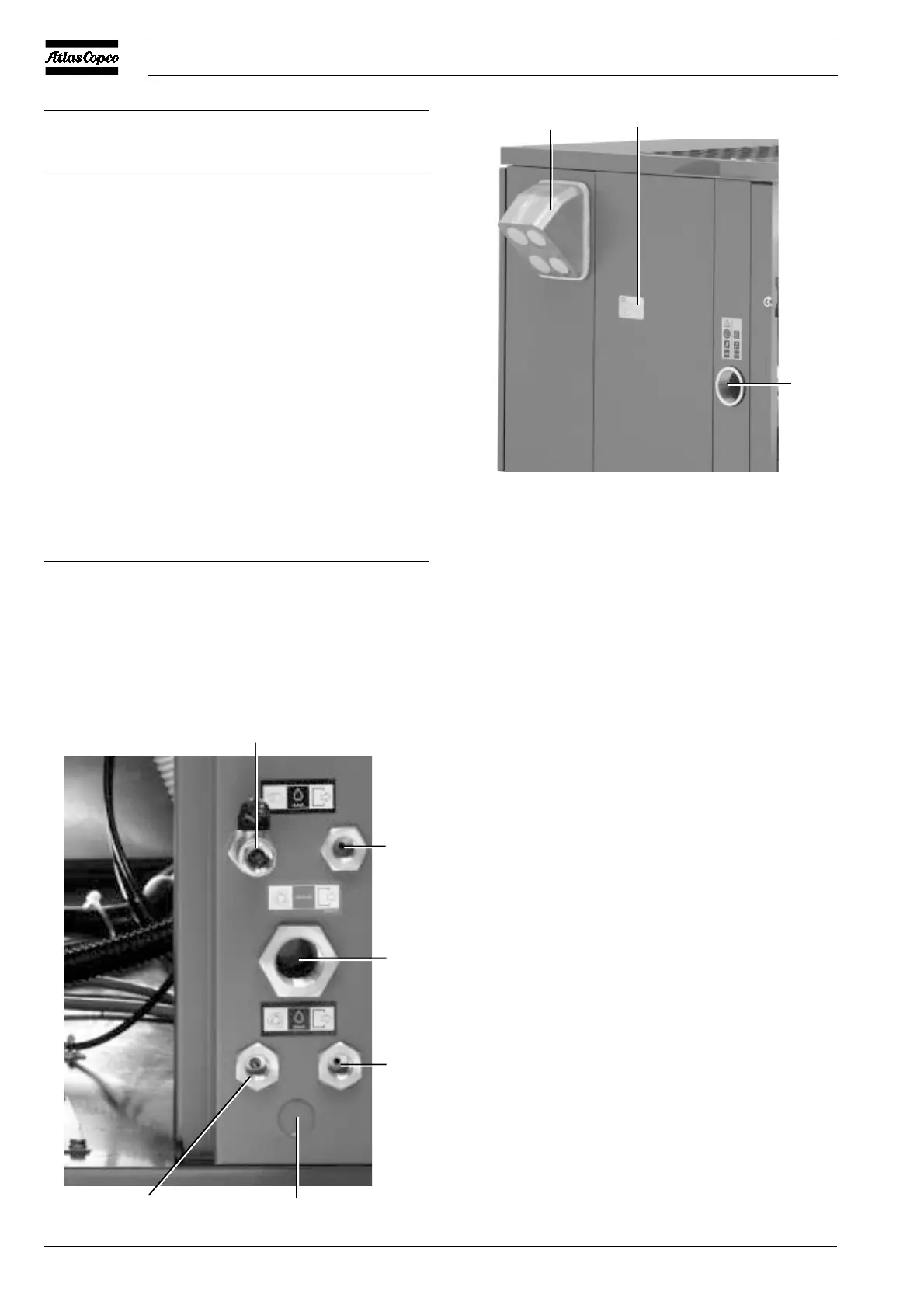

1 Voltage supply inlet
2 Data plate
3 Location of air outlet valve
Fig. 3.3 Air outlet GR 200 FF
1 Manual condensate drain
2 Manual condensate drain (Full-feature only)
3 Automatic condensate drain for optional oil/water
separator (type OSD)
4 Automatic condensate drain (Full-feature only)
5 Automatic drain for optional DD filter
6 Automatic condensate drain
Fig. 3.4 Location of condensate outlets
Key Compressor control mode
position
The compressor can be started and stopped
via function Timer (see section 1.3.1), if
programmed and activated.
12 Remote control mode 1 (local control is
made inactive):
The compressor can only be started and
stopped by an ES100 sequence selector or
by external switches. Do not use maintained-
action buttons in case of remote starting/
stopping.
Compressor start/stop commands via function
Timer (see section 1.3.1) are still possible,
if programmed and activated. Emergency
stop button (S2) remains active.
13 Remote control mode 2. The compressor
can be controlled by an ES-type controller
or by computer. Consult Atlas Copco.
1
2
3
51442F
1
2
3
4
5
6
51443F
