2920 1449 00
3
Instruction book
1 LEADING PARTICULARS
1.1 General description
GR110 up to GR200 and GR110 W up to GR200 W are two-
stage, oil-injected screw compressors, driven by an electric
motor and enclosed in a sound-insulated bodywork.
GR110 up to GR200 are air-cooled, abbreviated as "GR".
GR110 W up to GR200 W are water-cooled, abbreviated as
"GR W".
GR Full-feature (FF) compressors are provided with an air
dryer integrated in the bodywork. The system includes dryer
by-pass valves.
1.1.1 Main options
Full-feature
A refrigerant dryer is fully integrated into the bodywork of the
compressor. This “all-in-one” feature reduces the required
space for installation and provides savings on piping installation
cost.
Integrated DD filter (only on GR (W) 13 bar/200 psi)
Full-feature compressors can be provided with an integrated
filter of the DD type to limit carry-over of solid particles and
oil. By integrating a DD filter, the GR Full-feature turns into a
fully integrated compressed air station delivering Quality Air
according to ISO 8573-1, Class 2.4.2.
1 Oil coolers
2 Control panel
3 Electric cabinet
4 Power supply inlet
5 Arrow, motor rotation direction
6 Vibration damper
7 Gear casing
8 Vibration damper
9 Oil stop valve
10 Check valve
11 Compressor element, high
pressure
12 Compressor element, low
pressure
13 Unloader
14 Air receiver
M1 Drive motor
M25 Fan motor

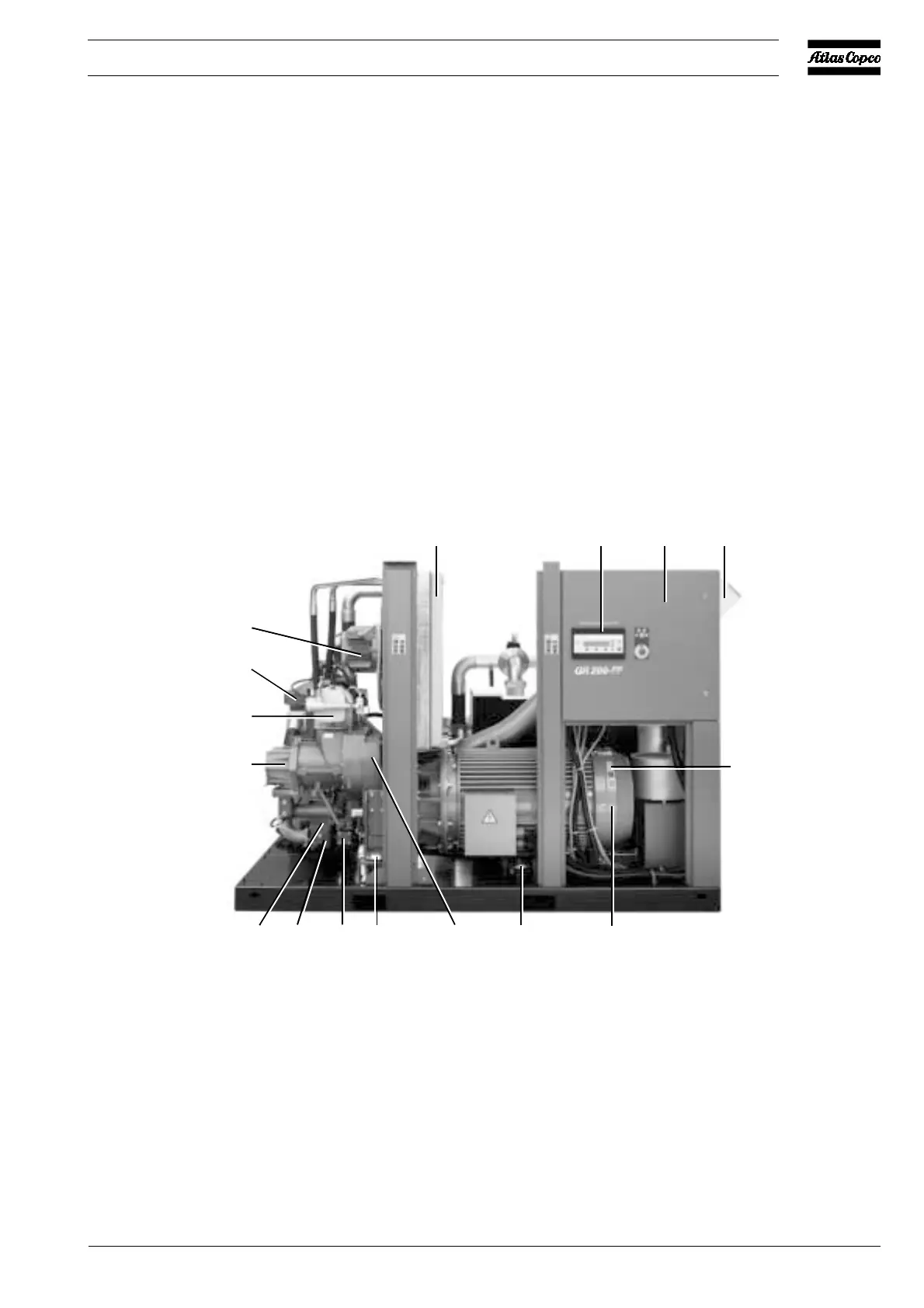

Fig. 1.1 Front view GR200 FF
M25
1
2
3
4
5
6
7
8910
11
12
13
14
51436F
M1
