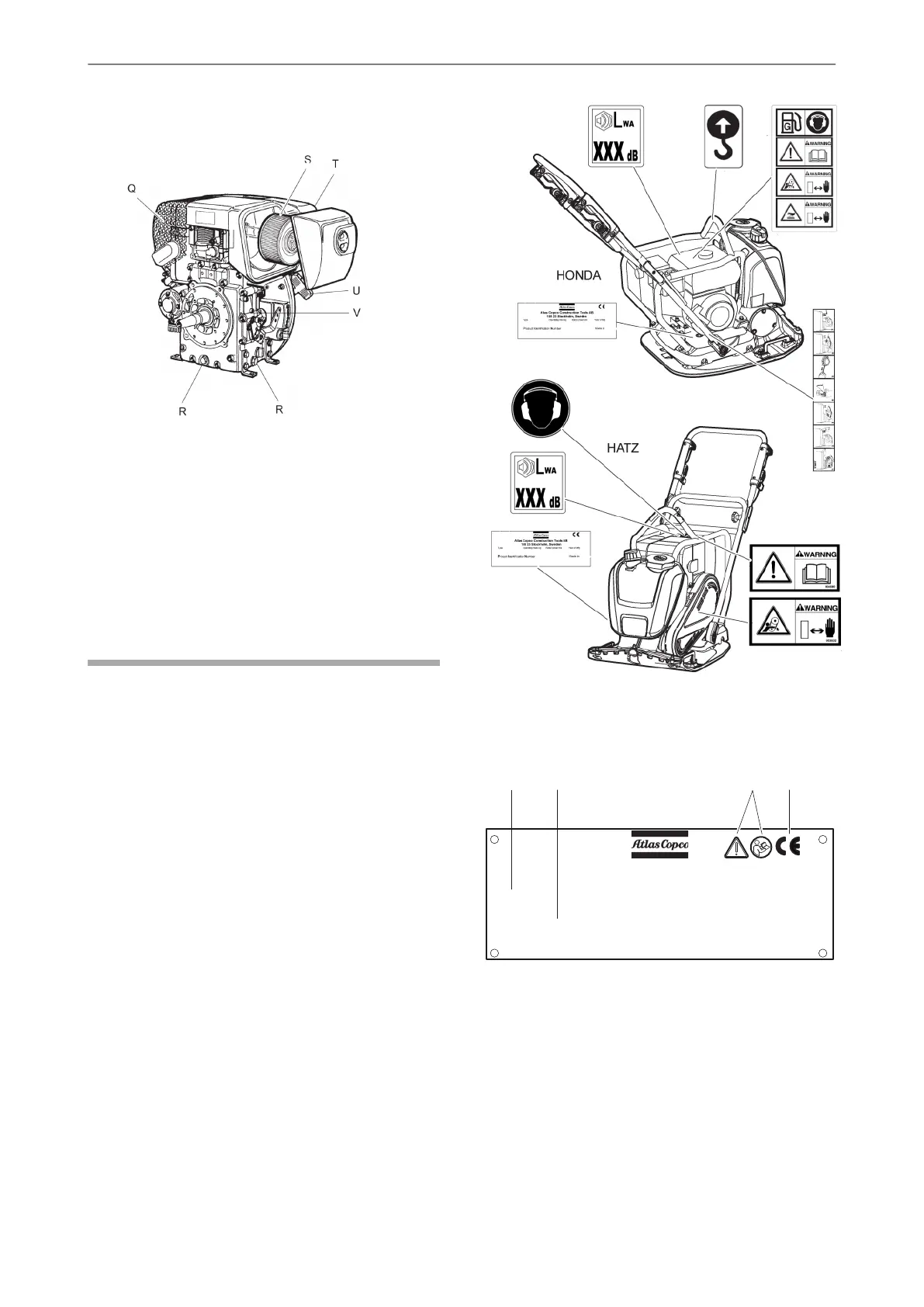

P. Recoil starter
Hatz engine
Q. Silencer
R. Drainage plugs
S. Air filter
T. Fuel tank
U. Recoil starter
V. Engine oil/dipstick
Labels
The machine is fitted with labels containing important
information about personal safety and machine
maintenance. The labels must be in such condition
that they are easy to read. New labels can be ordered
from the spare parts list.
Data plate
Construction Tools EOOD
Type Operating mass kg Rated power kW Year of Mfg
Product Identification Number Made in xxxxxxxx
3382 0102 00
A B C D
A. Machine type
B. Product Identification Number
C. The warning symbol together with the book
symbol means that the user must read the
safety and operating instructions before the
machine is used for the first time.
