Frame and axles
The compressor/engine unit is supported by rubber
buffers in the frame.
Bodywork
The bodywork has openings at the shaped front and
rear end for the intake and outlet of cooling air and
hinged doors for maintenance and service operations.
The bodywork is internally lined with sound-
absorbing material.
Lifting eye
A lifting eye is accessible from the roof of the unit .
Control panel
The control panel grouping the air pressure gauge,
control switch etc., is placed at the left hand/ rear end
corner.
Data plate
The compressor is furnished with a data plate
showing the product code, the unit serial number and
the working pressure (see chapter Data plate).

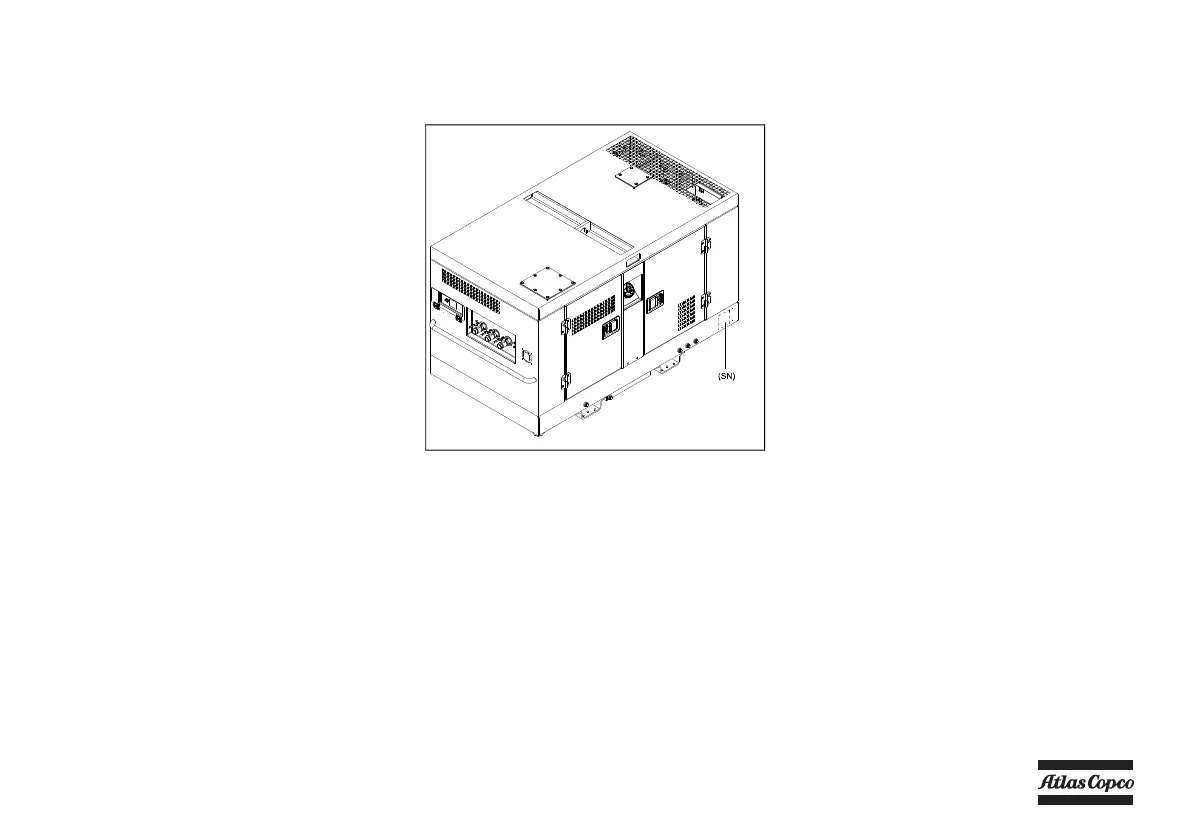

Serial number
The serial number (SN) is located on the right-hand
side towards the front on the upper edge of the frame.
