POSSIBLE VIEWS

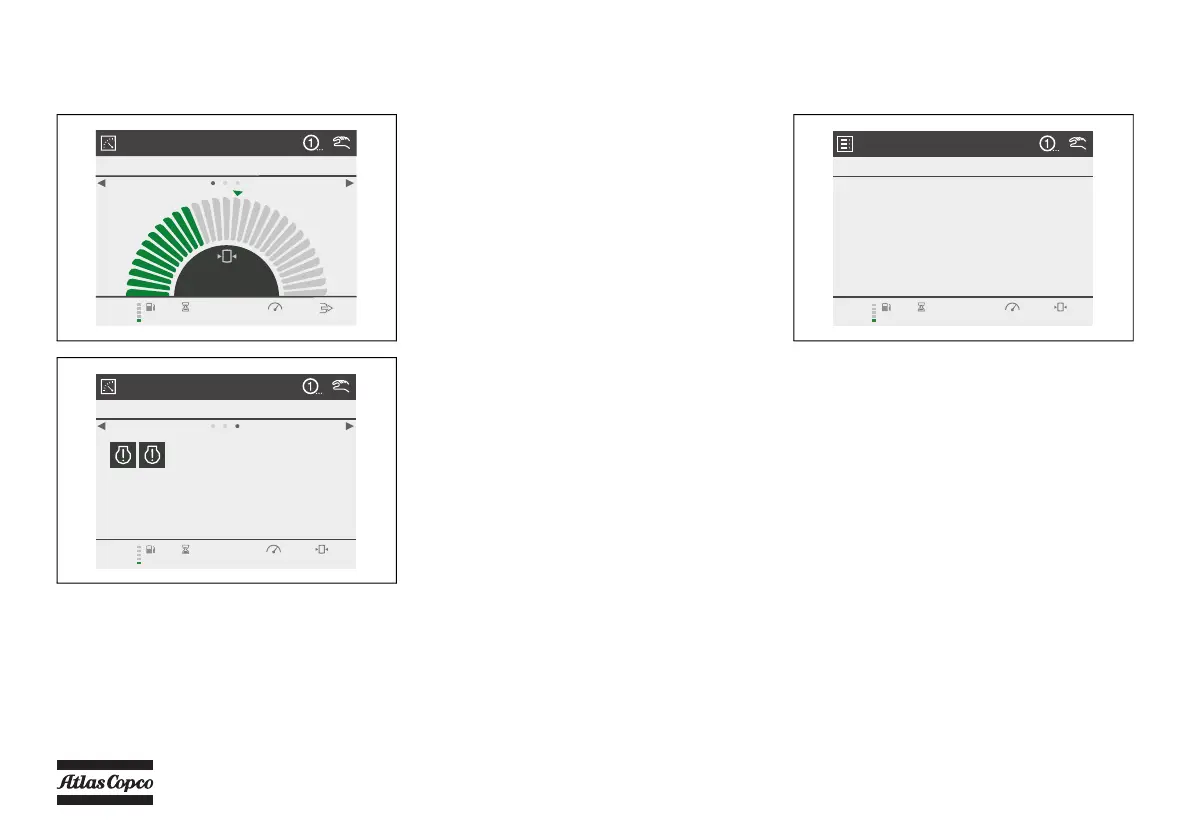

Main View
Main view is the default view. In the main view the
operator can view the most important information on
the actual compressor operation, like:
Measurements View
In the measurements view the operator can view up to
100 measured values (depending on the authorisation
level)
Use the up and down navigation buttons to scroll
through the full list of measurements.
Use the left and right navigation buttons to scroll
through the different pages.
The first page contains general data
 Active Sequence
 Vessel pressure
 Engine rpm
 Fuel level
 Running hours
 Alarm indication
 Operation mode
 Pre-set indication
 Auto load indication
 Overhaul indication
 DPF indication
 Clock
 Fuel level
 Battery voltage
 Running hours
 Vessel pressure
 Regulating pressure
 Emergency stop count
 Loaded hours
VUE PRINCIPALE
COMPRESSEUR CHARGÉ
14,4
1700RÉGIME
18%
28h
580L/s
VUE PRINCIPALE
COMPRESSEUR CHARGÉ
1701 RÉGIME 14,5bar
18%
28h
MESURES
COMPRESSEUR CHARGÉ
1700RÉGIME 14,4bar
19%
28h
HORLOGE TEMPS RÉEL 2015-09-29 14:10
NIVEAU DU CARBURANT 19%
ECU NIVEAU DU RÉSERVOIR SCR -- %
TENSION DE LA BATTERIE 28,4V
HEURES COMPTEUR DE TEMPS D'EXÉCUTION 28h
MINUTES COMPTEUR DE TEMPS D'EXÉCUTION 14min
ECU DÉBIT CARBURANT 77L/h
