- 62 -

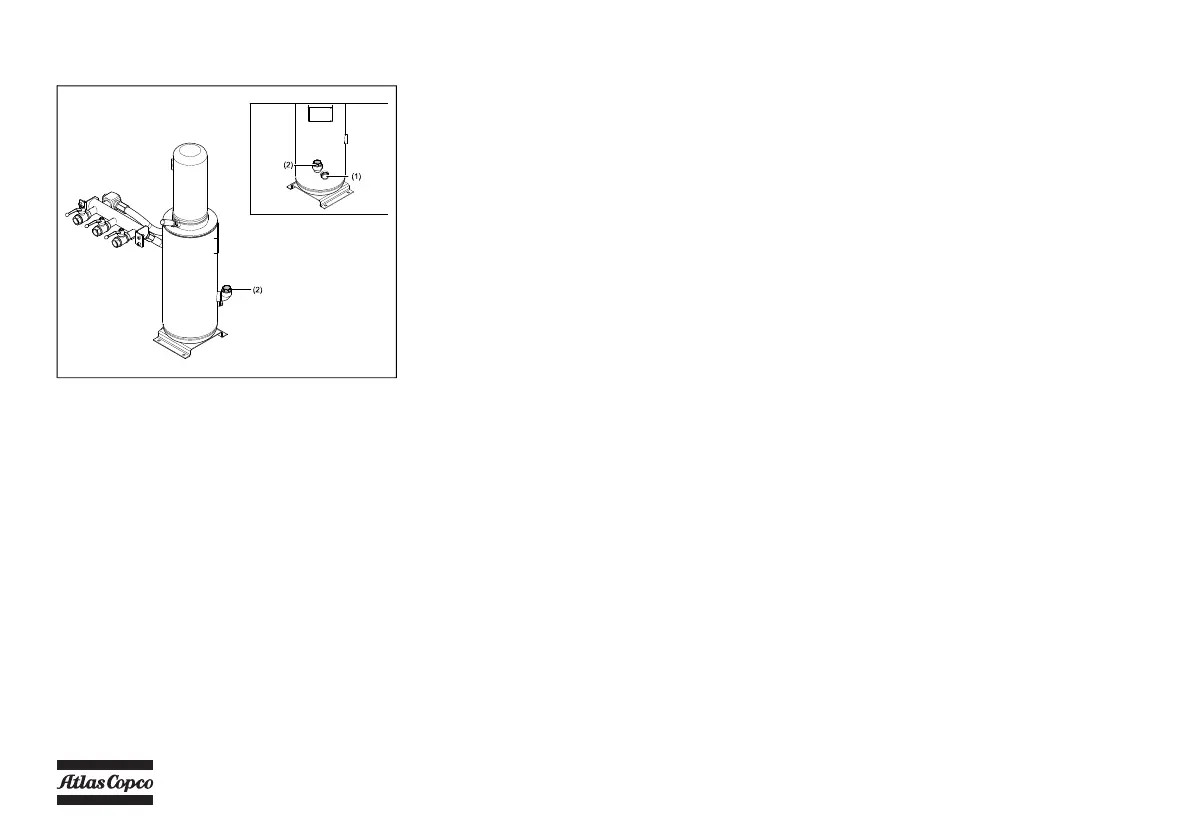

TOPPING UP THE COMPRESSOR OIL
1. Stop the compressor and be sure that all pressure
has been released by opening the filler plug (2)
one turn.
2. Wait a few minutes until the oil level is constant
(oil level gauge (1)).
3. Remove the oil filler plug (2) and top up with oil
until the pointer of the oil level gauge (1) is in the
upper part of the green area.
4. Reinstall and tighten the filler plug (2).
