Icon Number Alarms
General alarm icon
1500/1521/1522 Service interval
2000 Emergency stop
2010 Coolant temperature alarm
2020
Engine oil pressure alarm
2030 Engine coolant level
2040 Compressor element temperature
3000/3010 Fuel level alarm
3050/3060 High vessel pressure alarm
3080 Vessel pressure sensor circuit
3130 Regulating pressure sensor circuit
3450/3460 Battery low/high alarm
4000/4010/4020 LP Element temperature alarm
4040
LP Element temperature sensor
circuit
Icon Number Alarms
4050/4060
Engine coolant temperature
alarm
4070
Engine coolant temperature
sensor circuit
4990 VDO sensor circuit
6309 Engine preheat failure
6327 Start failure
6420 Stop failure
6427 Run failure
7000 ECU communication error
7006 Mall function indicator lamp
7007/7008/7009 ECU red/amber/protect lamp
7020 Engine Speed alarm
7030
ECU engine coolant temperature
alarm
7040 ECU engine oil pressure alarm
7150/7160 DEF tank level 1/level 2
!
!
!
!
!
!
!
!
!
!
!
!
-
+
!
!
List of most common alarm codes
In the case of an alarm or fault, your Xc1004 will
give you a orange or red banner with an alarm code
and icon.
The red banner appears in case of a shut-down,
which means the machine is stopped to protect the
operator or the compressor.
The orange banner appears in case of a warning.
This list shows you the most common alarm codes
and their meaning. If you are presented with another
code, or in case of doubt, our service technicians are
available to help out.

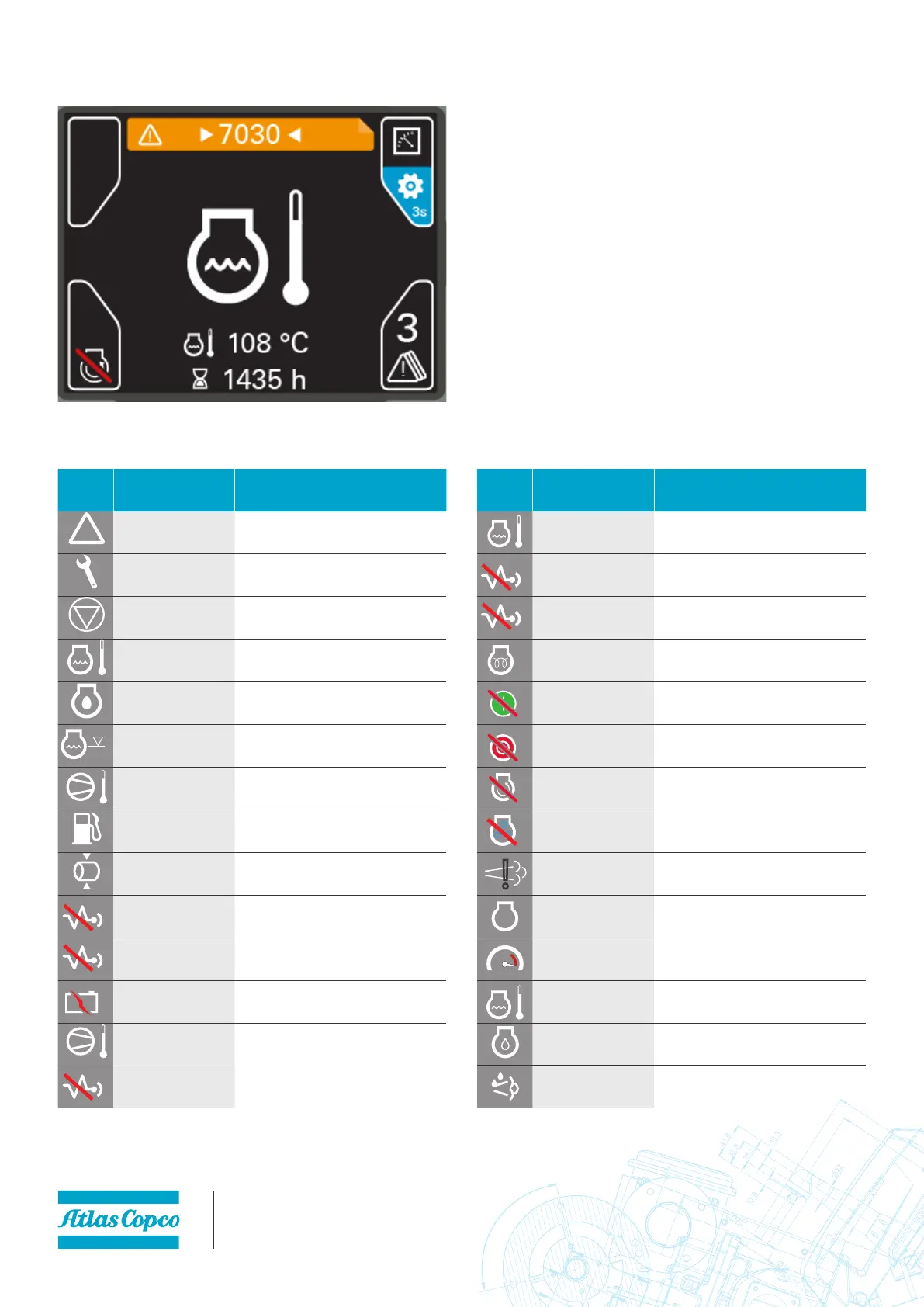

This screen warns the operator of an issue with
the engine coolant temperature.
