Transport And Installation 22
Atlas Cyclops

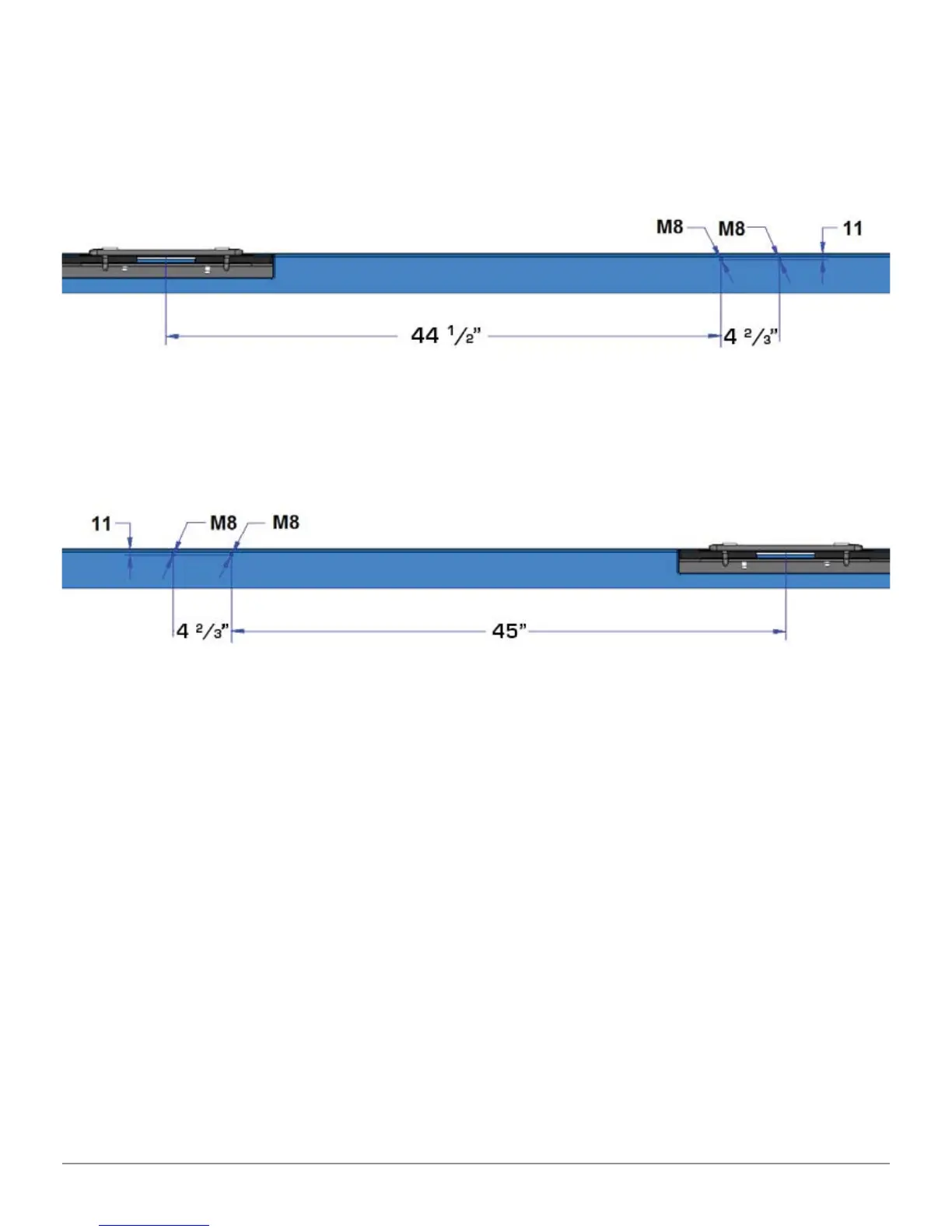

The fi gure below shows the left and right hand camera unit mounting bracket
hole patterns. Note: The distance from the center of the plate is slightly different
(1/2”). This is due to the asymmetry of the support itself with respect to the two
holes.
Left H a nd m ount ing bra ck et hole pa t t er n
Right H a nd m ount in g bra ck et hole pa t t er n
