Machine Com posit ion

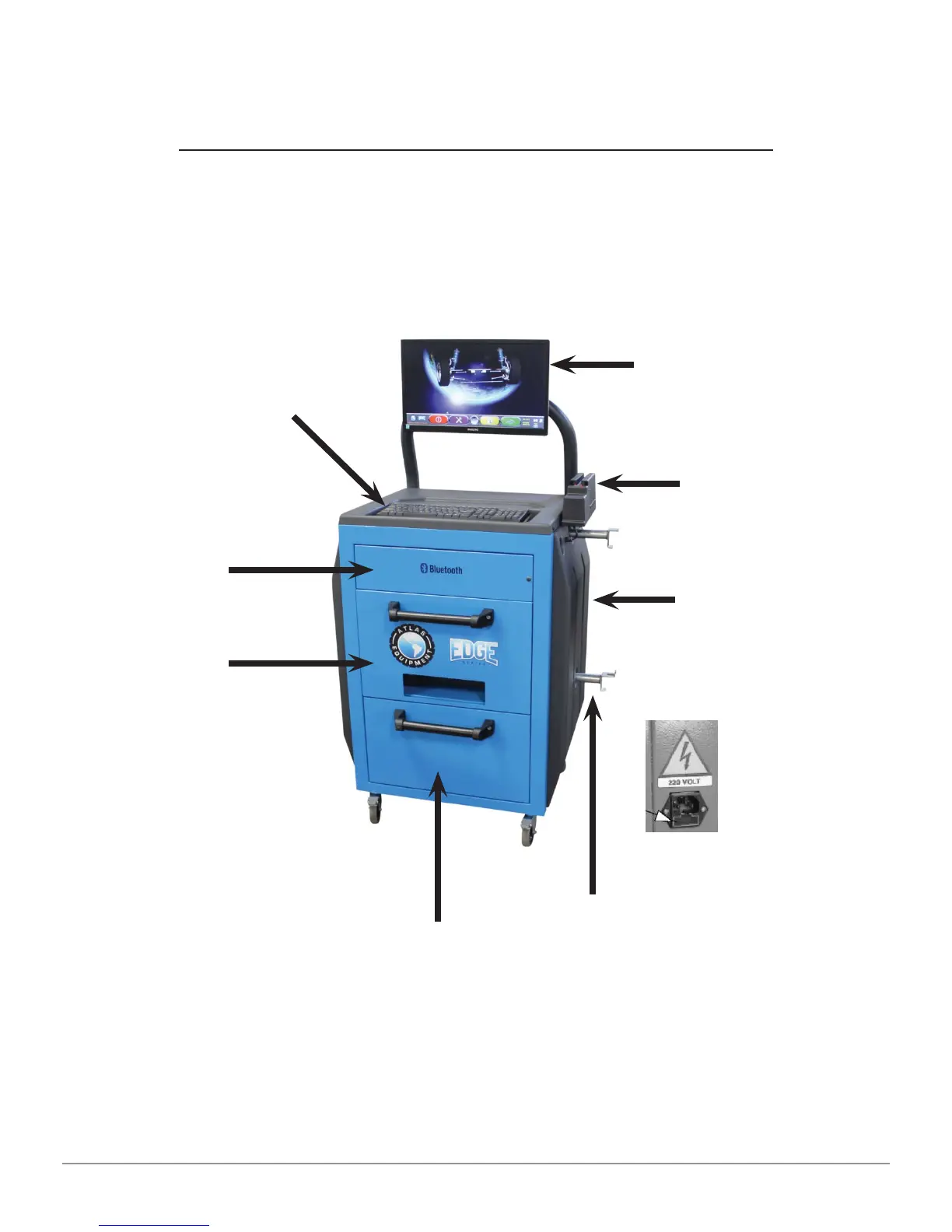

3.1 Atlas Cyclops Overview
Print e r Cent ra l
Com pa rt m ent
Results are printed
with an inkjet color
printer. Printer use and
maintenance instructions
can be found on the
manual coming with the
printer itself. Comply
with these instructions.
Managing PC Upper
Com pa rt m ent
PC Ke ypa d
Machine features a 102-
key, PC-type command
keyboard. Function keys
allow using almost all
machine functions. Vehicle
general data, customer
data, and vehicle database
customization can also be
entered via PC keyboard.
Mea sure m ent Cabin
A measurement cabin is used for all measurement
operations. This cabin also features the electronic
components necessary for the processing and
management of the measurements made by the 3D
cameras. Power supply: 220 / 240 Vac single phase
50/60Hz; Maximum absorbed power: 500w
Suppor t s
Four supports for housing
the clamps with target
Shock H a za r d
Pow e r Socket
Machine
Mast er
Sw it ch
Bat t e ry
Recha r ge
Suppor t
Monit or
All models feature high-
defi nition, color monitor 22’’
16/9. Use and maintenance
instructions can be found on
the manual coming with the
monitor itself. Comply with
these instructions.
