Installation Steps
30
PV
-10PX / PV
-10HPX
3.

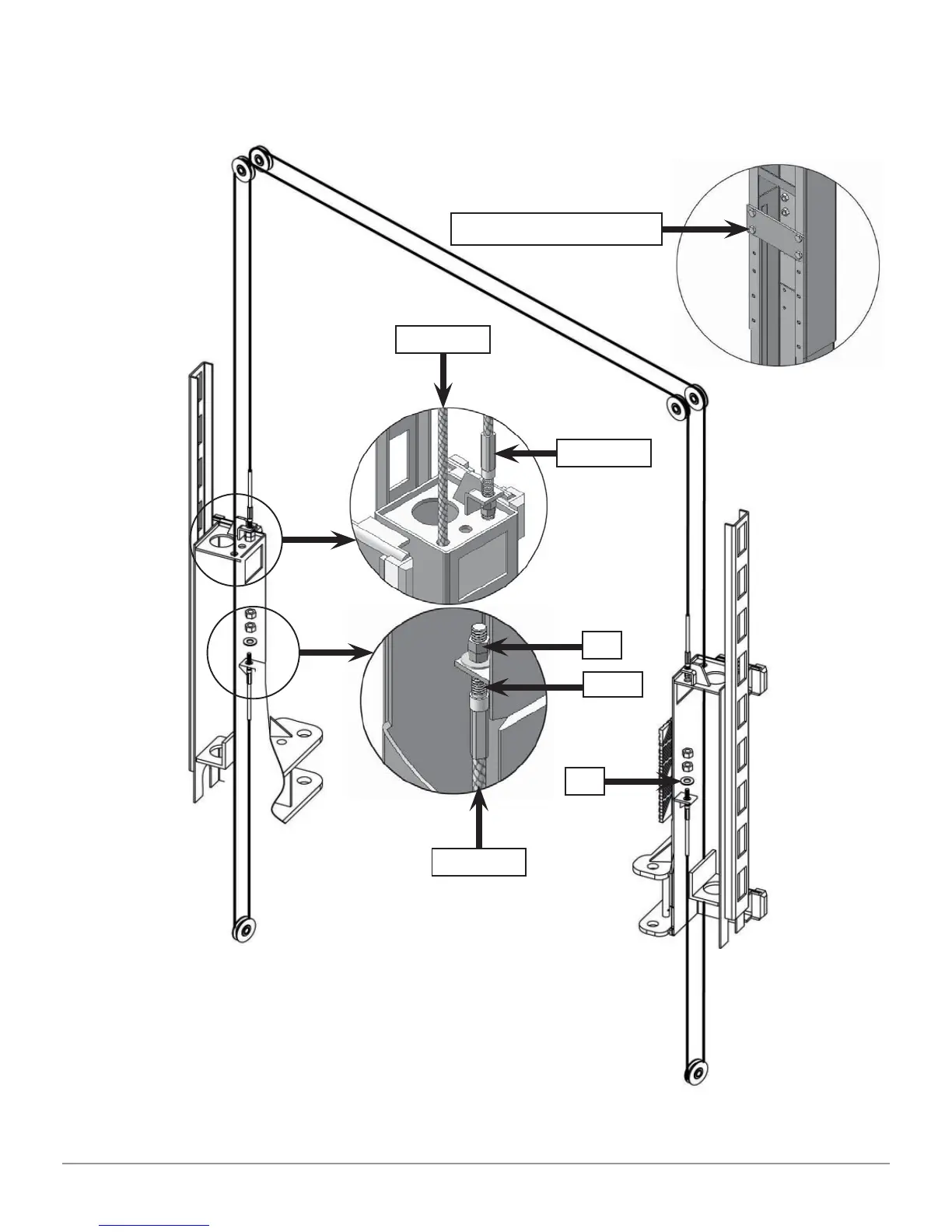

Special low setting cable connection PV10PX.
F
or a ceiling height between
3820mm (150 3/8”) to 4250mm (167 3/8”).
This setting requires the optional
short cables
.
Cable 2
Cable 1
Cable 2
102
94
96
Special Low Setting
Fig. 35
29
31
