Atmel AT90S8515-8PI - Block Diagram

AT90S4414/8515
2
Description
The AT90S4414/AT90S8515 is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By execut-
ing powerful instructions in a single clock cycle, the AT90S4414/8515 achieves throughputs approaching 1 MIPS per MHz
allowing the system designer to optimize power consumption versus processing speed.
Block Diagram

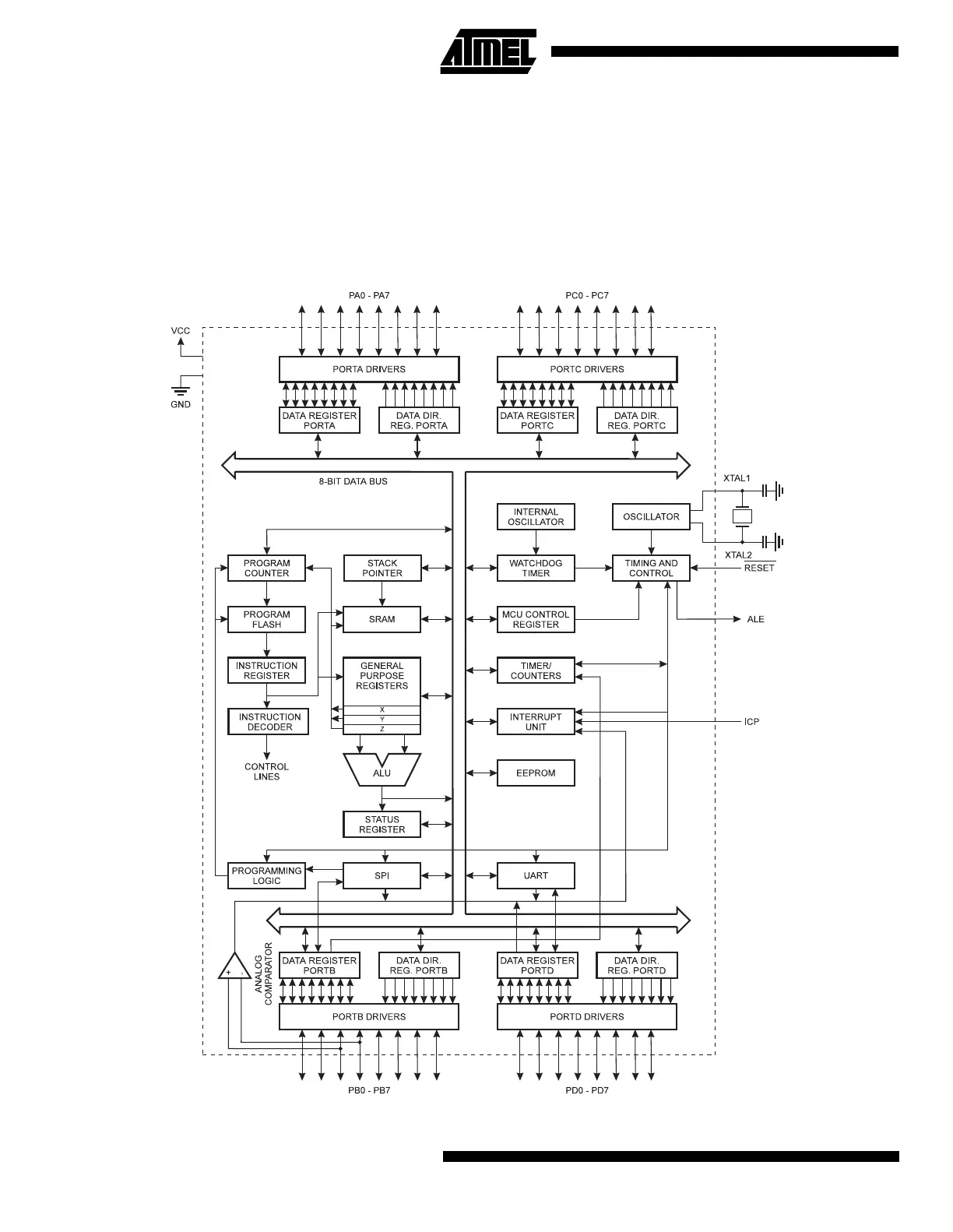

Figure 1. The AT90S4414/8515 Block Diagram
