SAMA5D3x-EK User Guide [USER GUIDE]
11180B–ATARM–29-Oct-13
5.4.3 USB Type A Dual Port

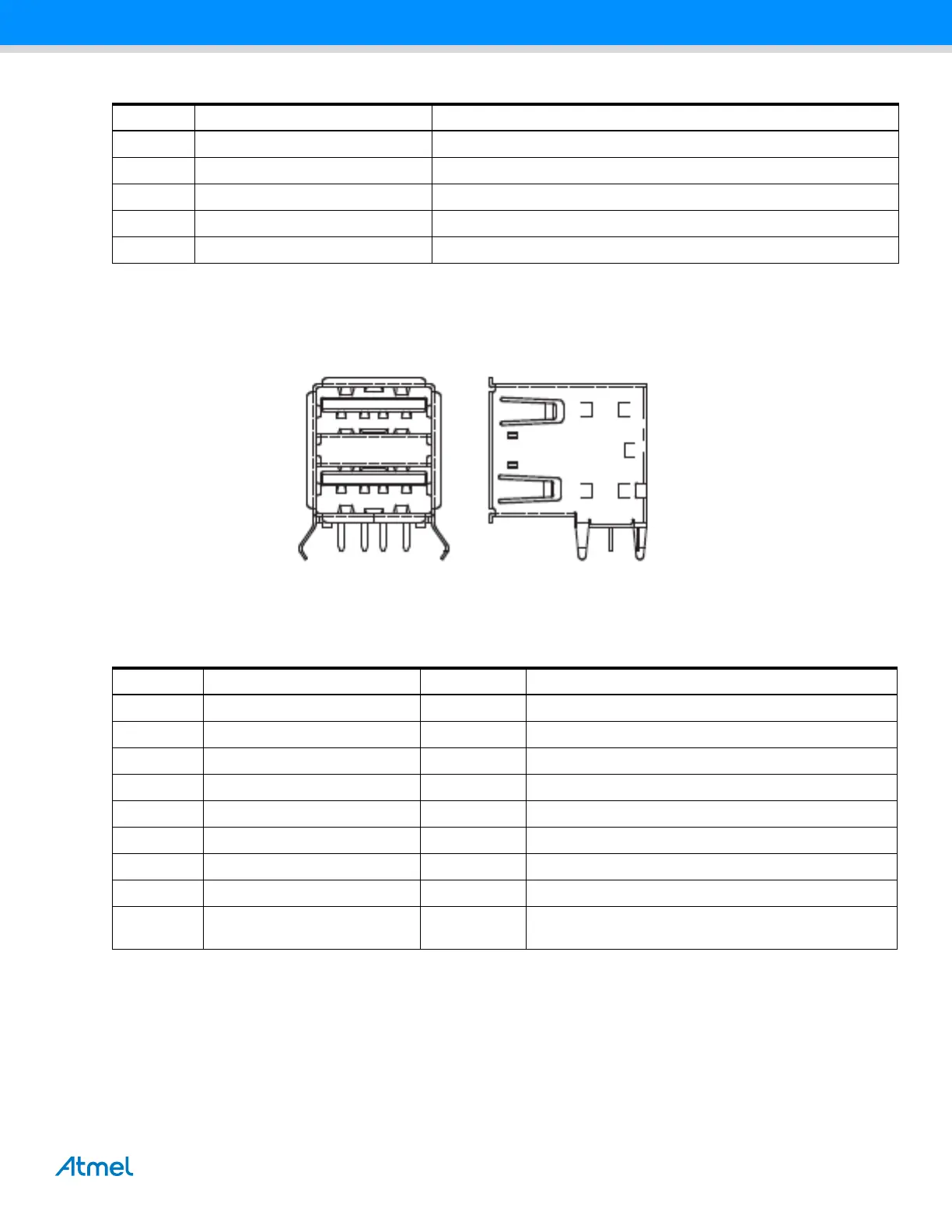

Figure 5-26. USB Type A Dual Port J19
16 GND Common ground
17 RFU This pin is not connected in SAM-ICE.
18 GND Common ground
19 RFU This pin is not connected in SAM-ICE.
20 GND Common ground
Table 5-5. JTAG/ICE Connector J9 Signal Descriptions
Pin Mnemonic Signal Description
Table 5-6. USB Type A Dual Port J19 Signal Descriptions
Pin Mnemonic PIO Signal Description
A1 Vbus - USB_A 5V power
A2 DM - USB_A Data minus
A3 DP - USB_A Data plus
A4 GND Common ground
B1 Vbus - USB_A 5V power
B2 DM - USB_A Data minus
B3 DP - USB_A Data plus
B4 GND Common ground
Mechanical
pins
Shield
