SAMA5D3x-EK User Guide [USER GUIDE]
11180B–ATARM–29-Oct-13
5.4.4 USB MicroAB

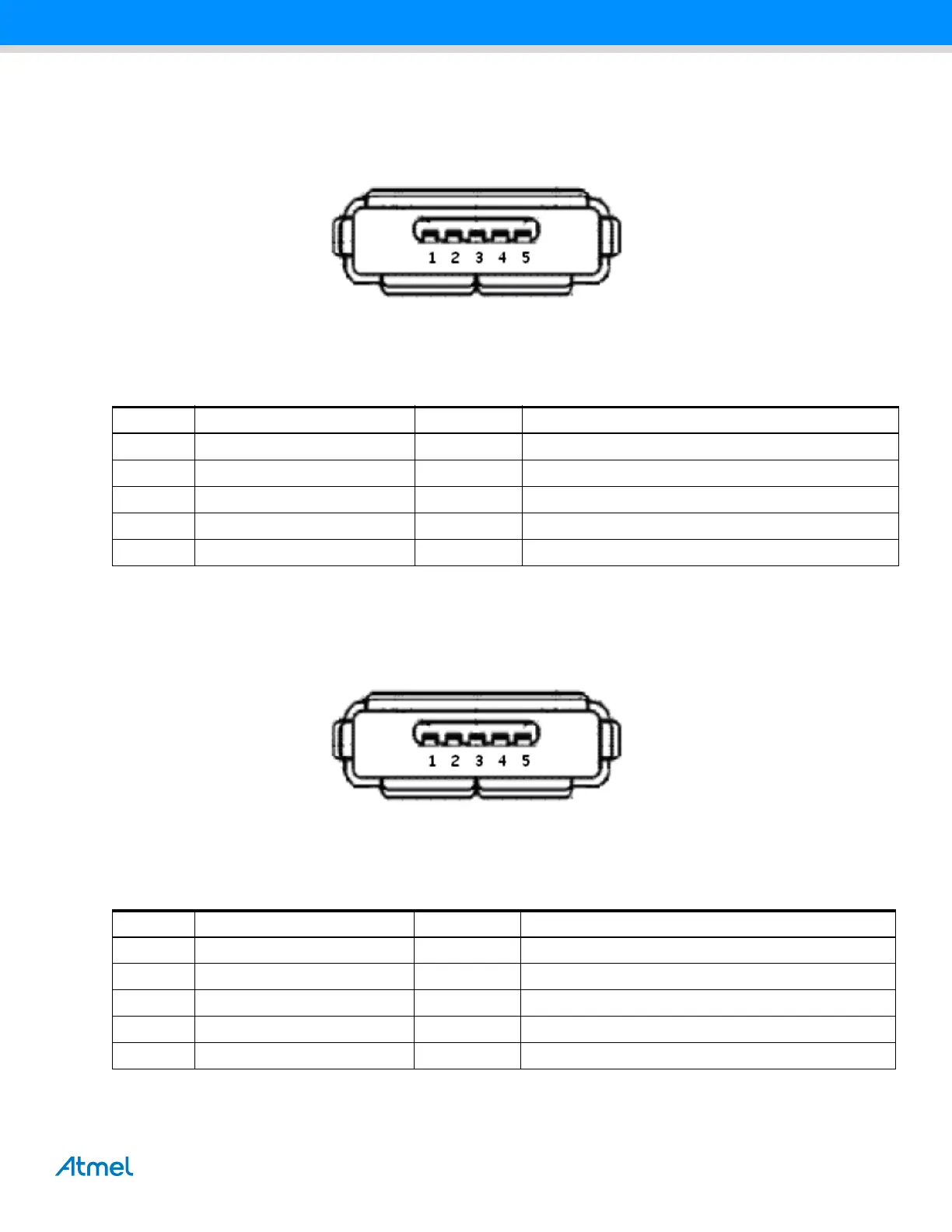

Figure 5-27. USB Host/Device MicroAB Connector J20
5.4.5 JTAG OB USB MicroAB
Figure 5-28. USB JTAG OB MicroAB connector J14
Table 5-7. USB Host/Device Micro AB Connector J20 Signal Descriptions
Pin Mnemonic PIO Signal Description
1 Vbus 5V power
2 DM Data minus
3 DP Data plus
4 ID On the Go identification
5 GND Common ground
Table 5-8. USB JTAG OB MicroAB connector J14 Signal Descriptions
Pin Mnemonic PIO Signal description
1 Vbus 5V power
2 DM Data minus
3 DP Data plus
4 ID On the Go Identification
5 GND Common ground
