Atmel SAMA5D3 EK Series User Manual

80
SAMA5D3x-EK User Guide [USER GUIDE]
11180B–ATARM–29-Oct-13
5.4.6 HDMI Connector

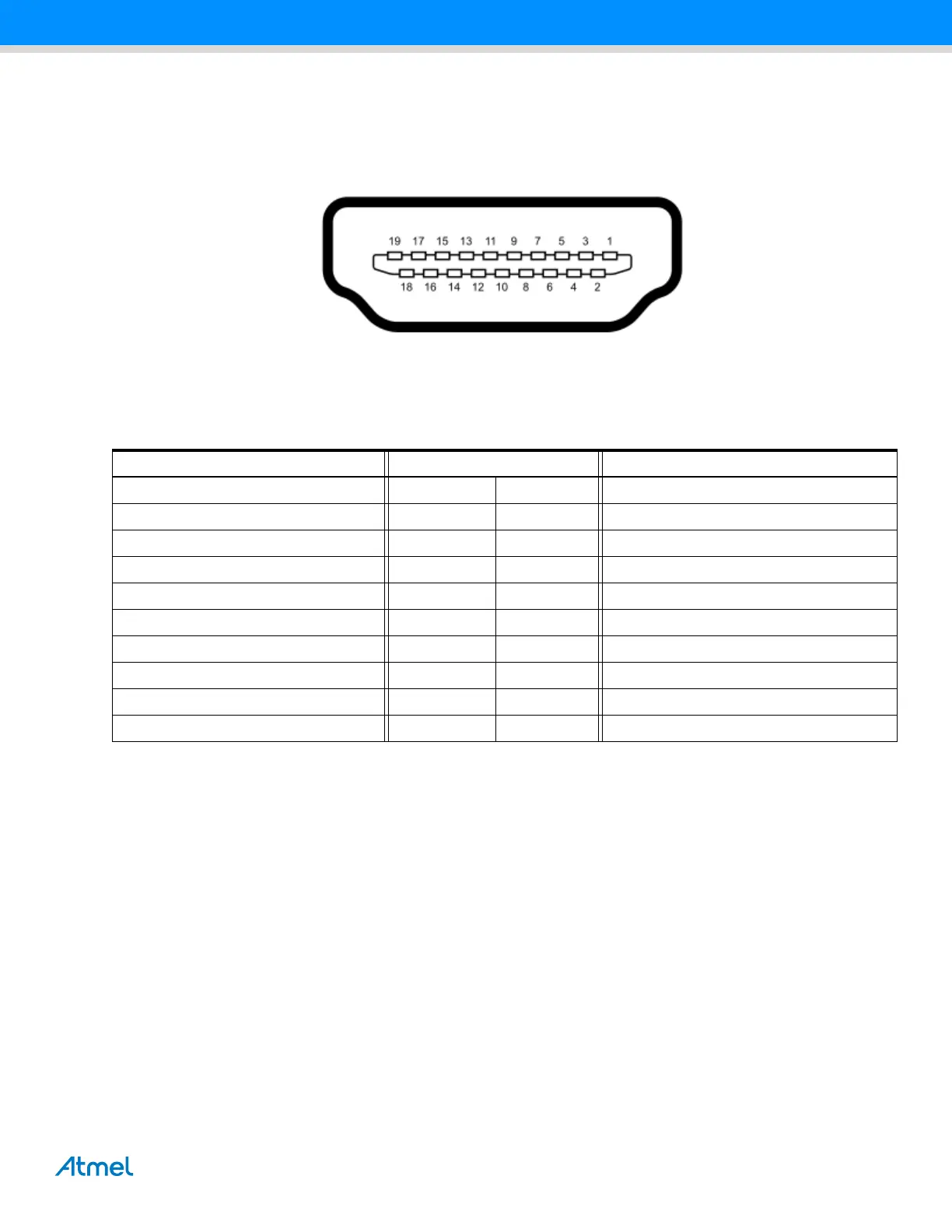

Figure 5-29. HDMI Female Type A Connector J25
Table 5-9. HDMI Type A Female Connector J25
LCD Pin Num LCD
TMDS Data 2+ 1 2 TMDS Data 2 Shield
TMDS Data 2- 3 4 TMDS Data 1+
TMDS Data 1 Shield 5 6 TMDS Data 1-
TMDS Data 0+ 7 8 TMDS Data 0 Shield
TMDS Data 0- 9 10 TMDS Clock +
TMDS Clock Shield 11 12 TMDS Clock -
NC 13 14 NC
SCL 15 16 SDA
GND 17 18 +5V
Hot Plus Detect 19
