SAMA5D3x-EK User Guide [USER GUIDE]

11180B–ATARM–29-Oct-13

5.4.11 MicroSD MCI1

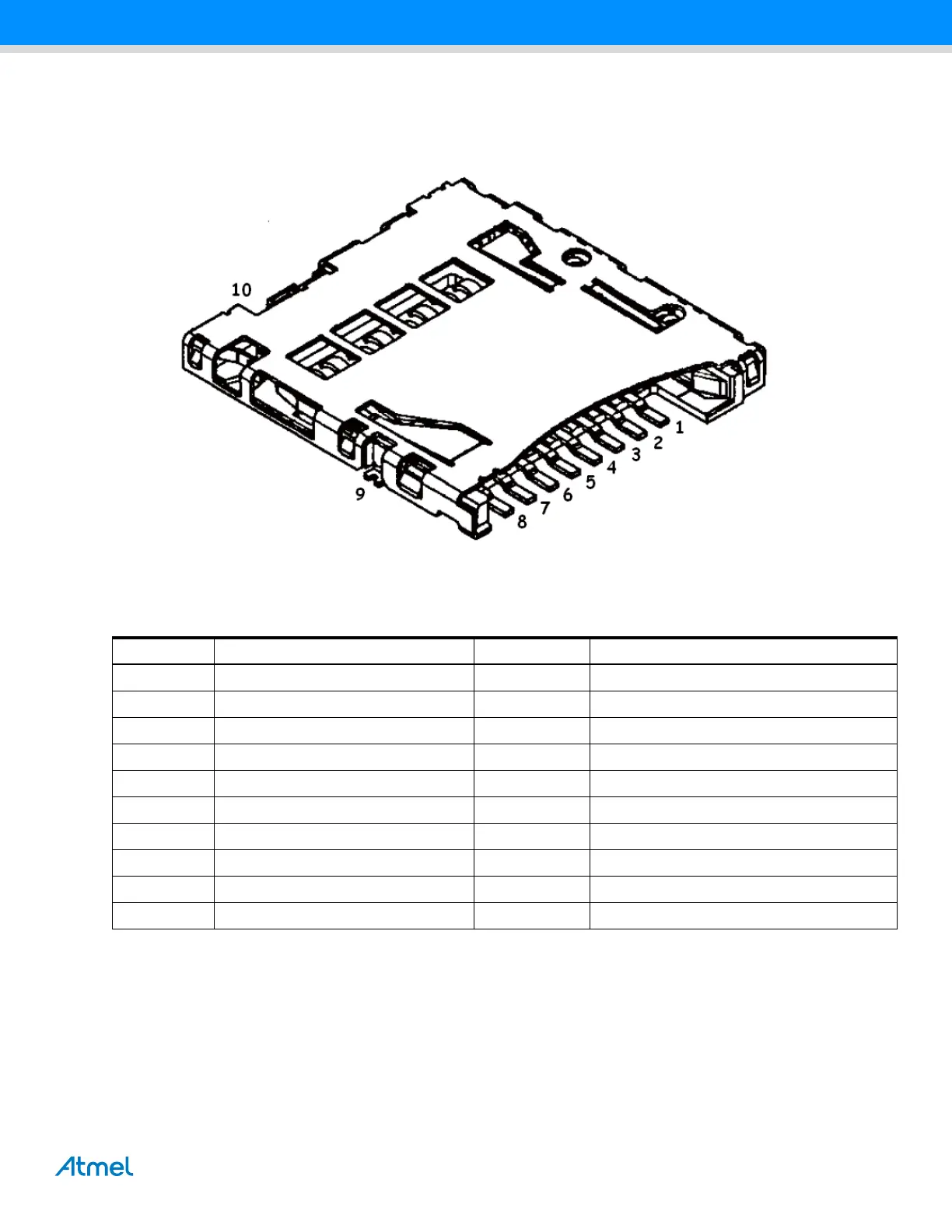

Figure 5-34. MicroSD Socket J6

Table 5-14. MicroSD Socket J6 Signal Descriptions

Pin Mnemonic PIO Signal Description

1 DAT2 PB22 Data bit 2

2 CD/DAT3 PB23 Card detect / data bit 3

3 CMD PB19 Command line

4 VCC Supply voltage 3.3V

5 CLK PB24 Clock / command line

6 VSS Common ground

7 DAT0 PB20 Data bit 0

8 DAT1 PB21 Data bit 1

9 SW1 Not used, grounded

10 CARD DETECT PD18 Card detect
