85
SAMA5D3x-EK User Guide [USER GUIDE]
11180B–ATARM–29-Oct-13
5.4.12 Gigabit Ethernet ETH0 RJ45 Socket J17

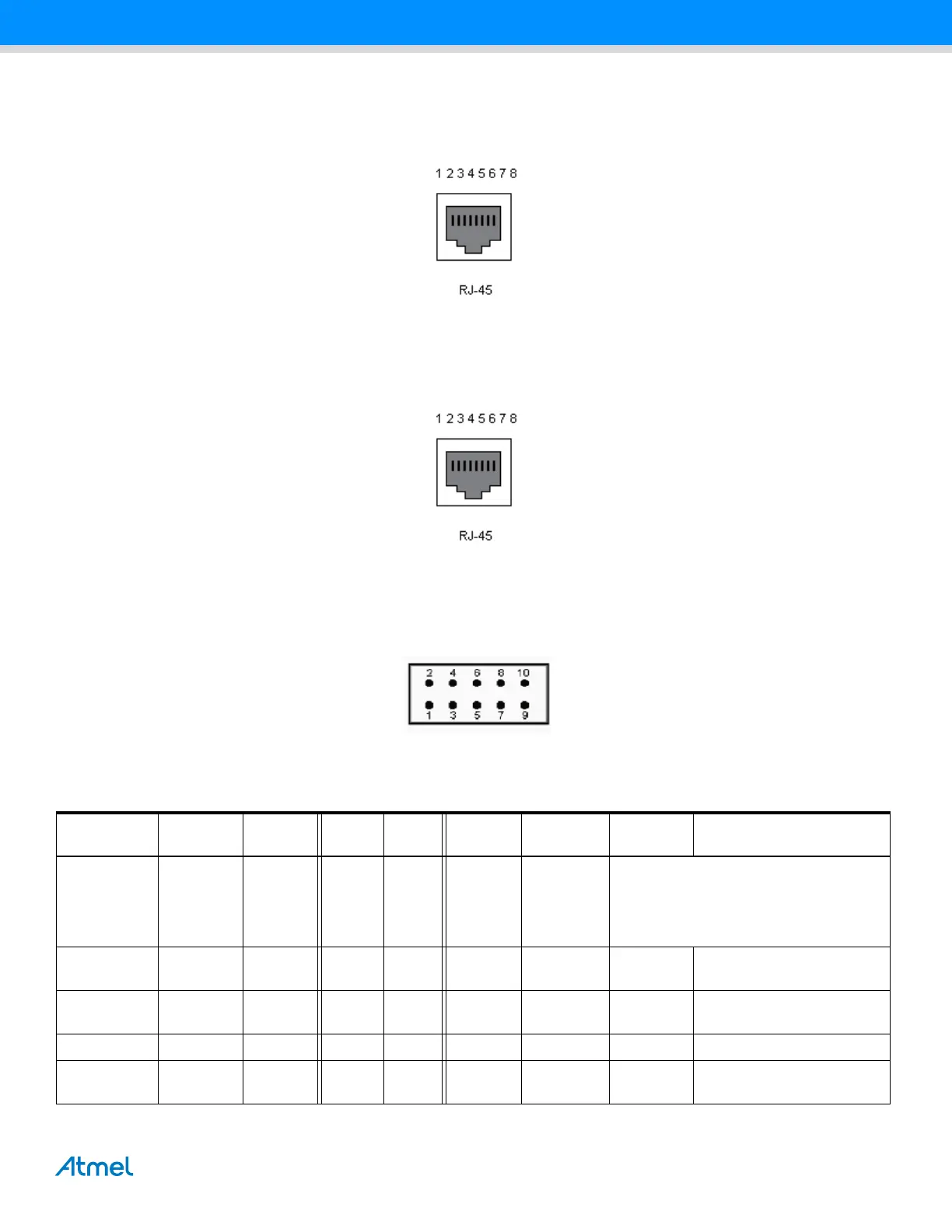

Figure 5-35. Gigabit Ethernet RJ45 Socket J17
5.4.13 Ethernet ETH1 RJ45 Socket J24
Figure 5-36. Ethernet RJ45 Socket J24
5.4.14 ZigBee Socket J10
Figure 5-37. ZigBee Socket J10
Table 5-15. ZigBee Socket J10 Signal Descriptions
Function
Signal
Name Port Pin Pin Port
Signal
Name Function
Option on Misc. Port Set
by OR or Solder Shunts
Reset /RST 1 2 Misc.
EEPROM for MAC address, cap array
settings and serial number
TST: test mode activation
CLKM: RF chip clock output
Interrupt
Request
IRQ 3 4 SLP_TR SLP_TR
SPI chip
select
/SEL 5 6 MOSI SPI MOSI
SPI MISO MISO 7 8 SCLK SPI CLK
Power
Supply
GND GND 9 10 VCC VCC VCC
Voltage range: 1.8V to 5.5V,
regulated to 3.3V
