SAMA5D3x-EK User Guide [USER GUIDE]
11180B–ATARM–29-Oct-13
5.4.15 LCD Socket J21

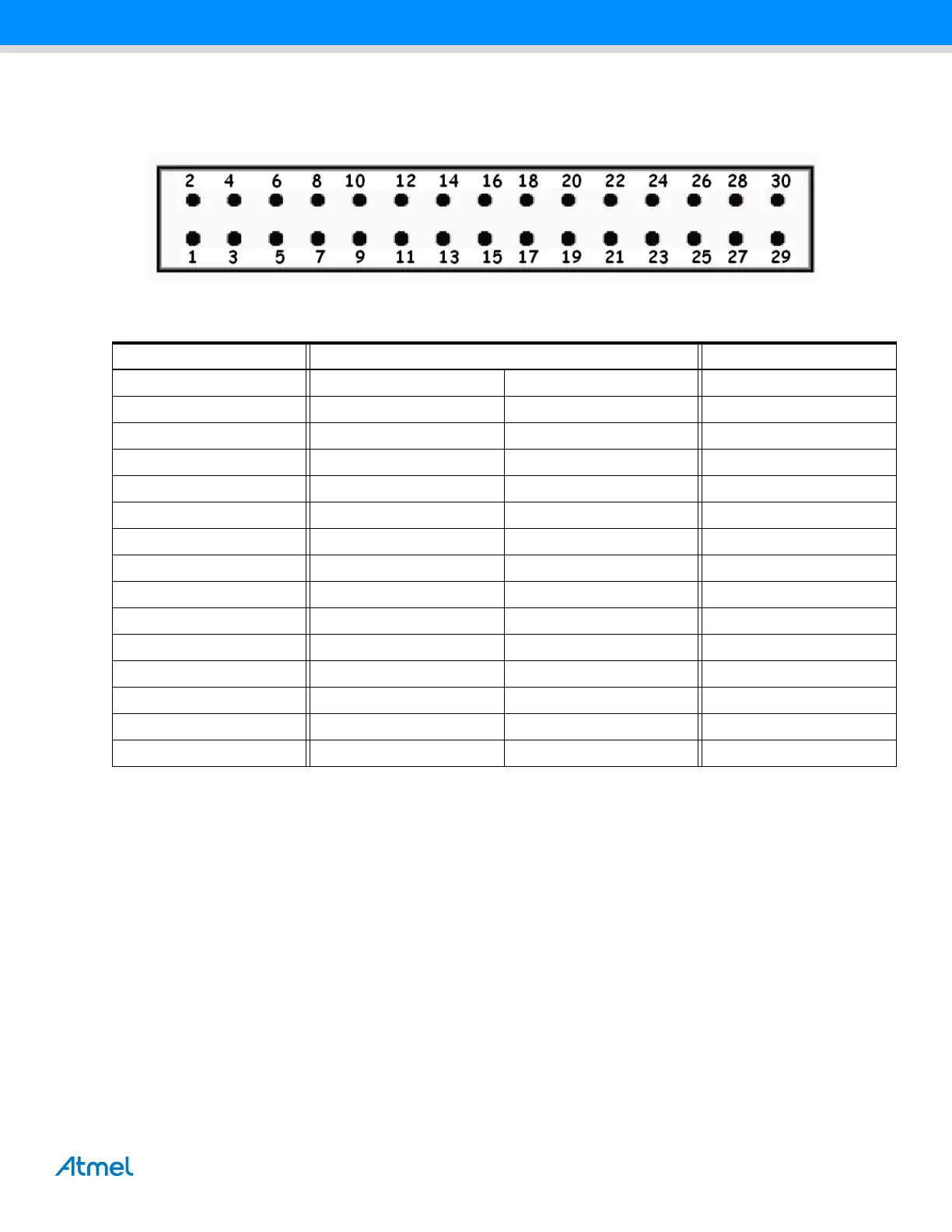

Figure 5-38. LCD Socket J21
Table 5-16. LCD Socket J21 HE10 Female LCD 2*15p
LCD Pin Number LCD
VDD3V3 1 2 GND
VDD3V3 3 4 GND
ZB_IRQ0 5 6 ZB_IRQ1
TWCK1 7 8 TWD1
GND 9 10 LCDDAT15
GND 11 12 LCDDAT13
GND 13 14 LCDDAT14
GND 15 16 LCDDAT12
GND 17 18 LCDDAT0
LCDDAT1 19 20 LCDDAT2
LCDDAT3 21 22 LCDDAT4
LCDDAT5 23 24 LCDDAT6
LCDDAT7 25 26 LCDDAT8
LCDDAT9 27 28 LCDDAT10
LCDDAT11 29 30 GND
